| Item | Part No. | Part Name | Qty | Serial No. |

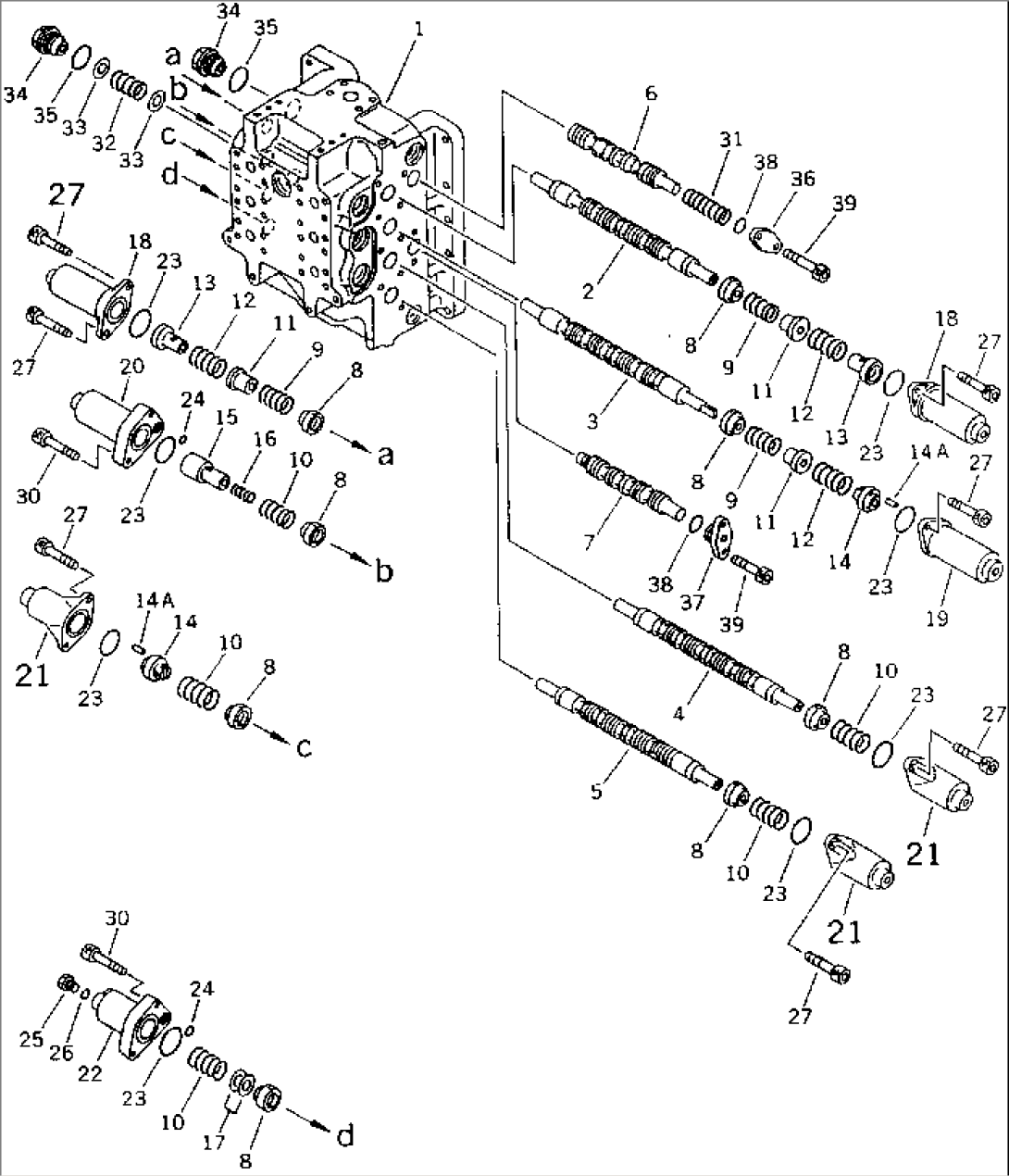

| (8221-60-1400) | CONTROL VALVE ASS'Y | 1201- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6211 TO 6217. | ||||
| 709-74-92902 | VALVE ASS'Y | 1201- | ||
| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6214 AND 6215. | ||||
| 1 | \6\ | BODY,VALVE | 1201- | |
| 2 | \6\ | SPOOL | 1201- | |
| 3 | \6\ | SPOOL | 1201- | |
| 4 | \6\ | SPOOL | 1201- | |
| 5 | \6\ | SPOOL | 1201- | |
| 6 | \6\ | SPOOL | 1201- | |
| 7 | \6\ | SPOOL | 1201- | |
| 8 | 709-74-92110 | RETAINER | 1201- | |
| 9 | 709-74-91910 | SPRING | 1201- | |
| 10 | 709-74-92180 | SPRING | 1201- | |
| 11 | 709-74-91930 | RETAINER | 1201- | |
| 12 | 709-74-91920 | SPRING | 1201- | |
| 13 | 709-74-91940 | RETAINER | 1201- | |
| 14 | 709-74-91970 | SLEEVE | 1201- | |
| 14A | 04022-04008 | PIN | 1201- | |
| 15 | 709-74-92420 | RETAINER | 1201- | |
| 16 | 709-74-92430 | SPRING | 1201- | |
| 17 | 709-74-92360 | SHIM, 0.5MM | 1201- | |
| 18 | 709-74-91980 | CASE | 1201- | |
| 19 | 709-74-91980 | CASE | 1201- | |
| 20 | 709-74-92780 | CASE | 1201- | |
| 21 | 709-74-92120 | CASE | 1201- | |
| 22 | 709-74-92140 | CASE | 1201- | |
| 23 | 709-74-92170 | O-RING | 1201- | |
| 24 | 07000-02010 | O-RING | 1201- | |
| 25 | 07040-11409 | PLUG | 1201- | |
| 26 | 07002-01423 | O-RING | 1201- | |
| 27 | 01252-30820 | BOLT | 1201- | |
| 30 | 01252-30830 | BOLT | 1201- | |
| 31 | 709-74-92190 | SPRING | 1201- | |
| 32 | 709-74-92210 | SPRING | 1201- | |
| 33 | 709-74-92270 | WASHER | 1201- | |
| 34 | 709-74-92220 | PLUG | 1201- | |
| 35 | 07002-03034 | O-RING | 1201- | |
| 36 | 709-74-92250 | PLATE | 1201- | |
| 37 | 709-74-92240 | PLATE | 1201- | |
| 38 | 07000-02018 | O-RING | 1201- | |
| 39 | 01252-30820 | BOLT | 1201- |
