| Item | Part No. | Part Name | Qty | Serial No. |

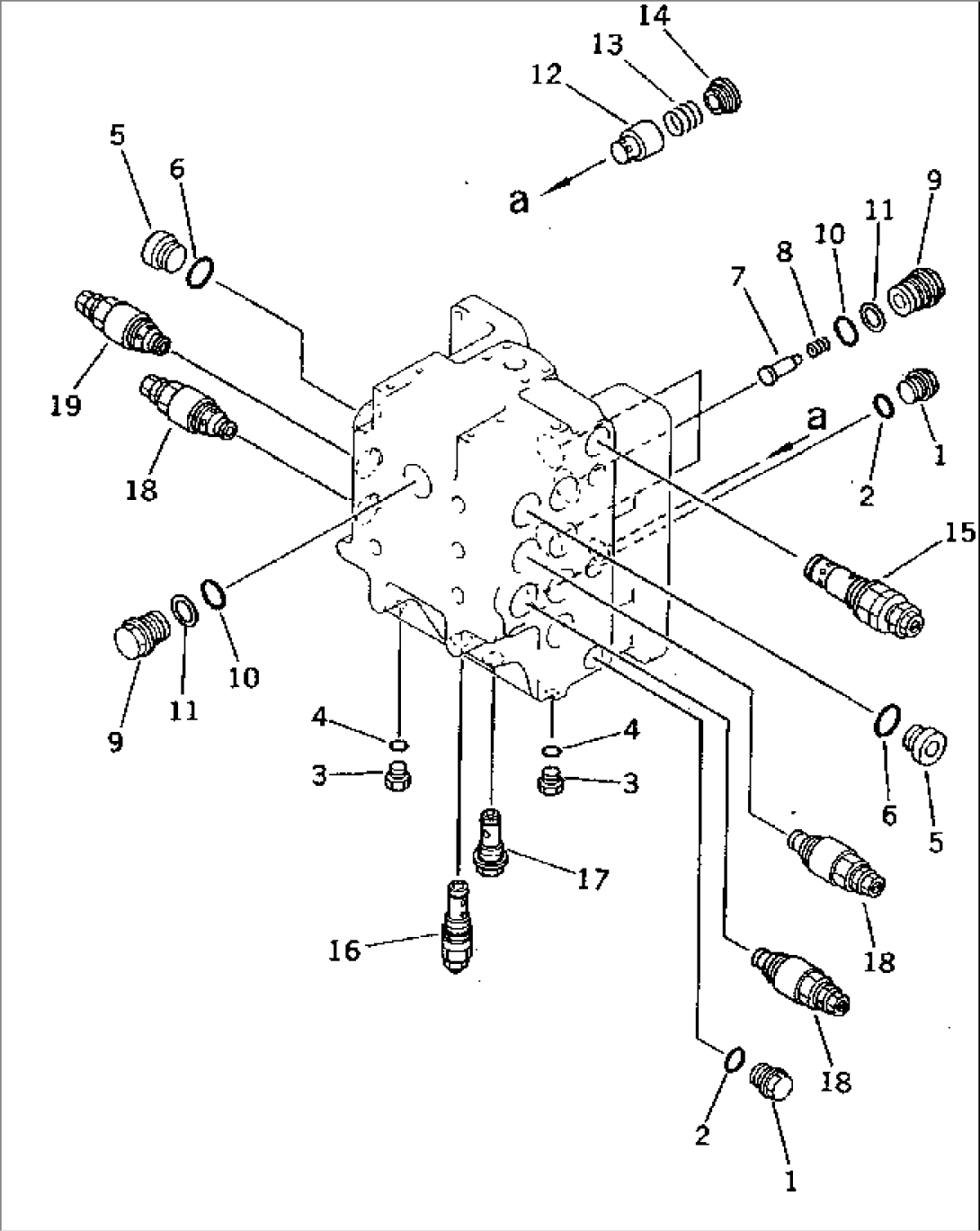

| (8232-60-1200) | CONTROL VALVE ASS'Y | 1001- | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6201 TO 6207. | ||||
| 709-74-92902 | VALVE ASS'Y | 1001- | ||
| THESE ASSEMBLIES CONSIST OF ALL PARTS SHOWN IN FIGS.6204 AND 6205. | ||||
| 1 | 709-74-91860 | PLUG | 1001- | |
| 2 | 07002-12434 | O-RING | 1001- | |
| 3 | 07040-11612 | PLUG | 1001- | |
| 4 | 07002-01623 | O-RING | 1001- | |
| 5 | 709-74-91520 | PLUG | 1001- | |
| 6 | 709-25-11390 | O-RING | 1001- | |
| 7 | 709-74-92810 | VALVE | 1001- | |
| 8 | 709-75-92220 | SPRING | 1001- | |
| 9 | 709-74-92821 | PLUG | 1001- | |
| 10 | 700-93-11320 | O-RING | 1001- | |
| 11 | 700-93-11330 | RING | 1001- | |
| 12 | 709-74-92281 | VALVE | 1001- | |
| 13 | 709-74-92290 | SPRING | 1001- | |
| 14 | 709-74-92310 | SEAT | 1001- | |
| 15 | (709-80-52800) | VALVE ASS'Y,RELIEF | 1001- | |
| 16 | (709-70-55200) | VALVE ASS'Y,RELIEF | 1001- | |
| 17 | (709-90-91300) | ORIFICE ASS'Y | 1001- | |
| 18 | (709-70-74103) | VALVE ASS'Y,SUCTION AND SAFETY | 1001- | |
| 19 | (709-70-74203) | VALVE ASS'Y,SUCTION AND SAFETY | 1001- |
