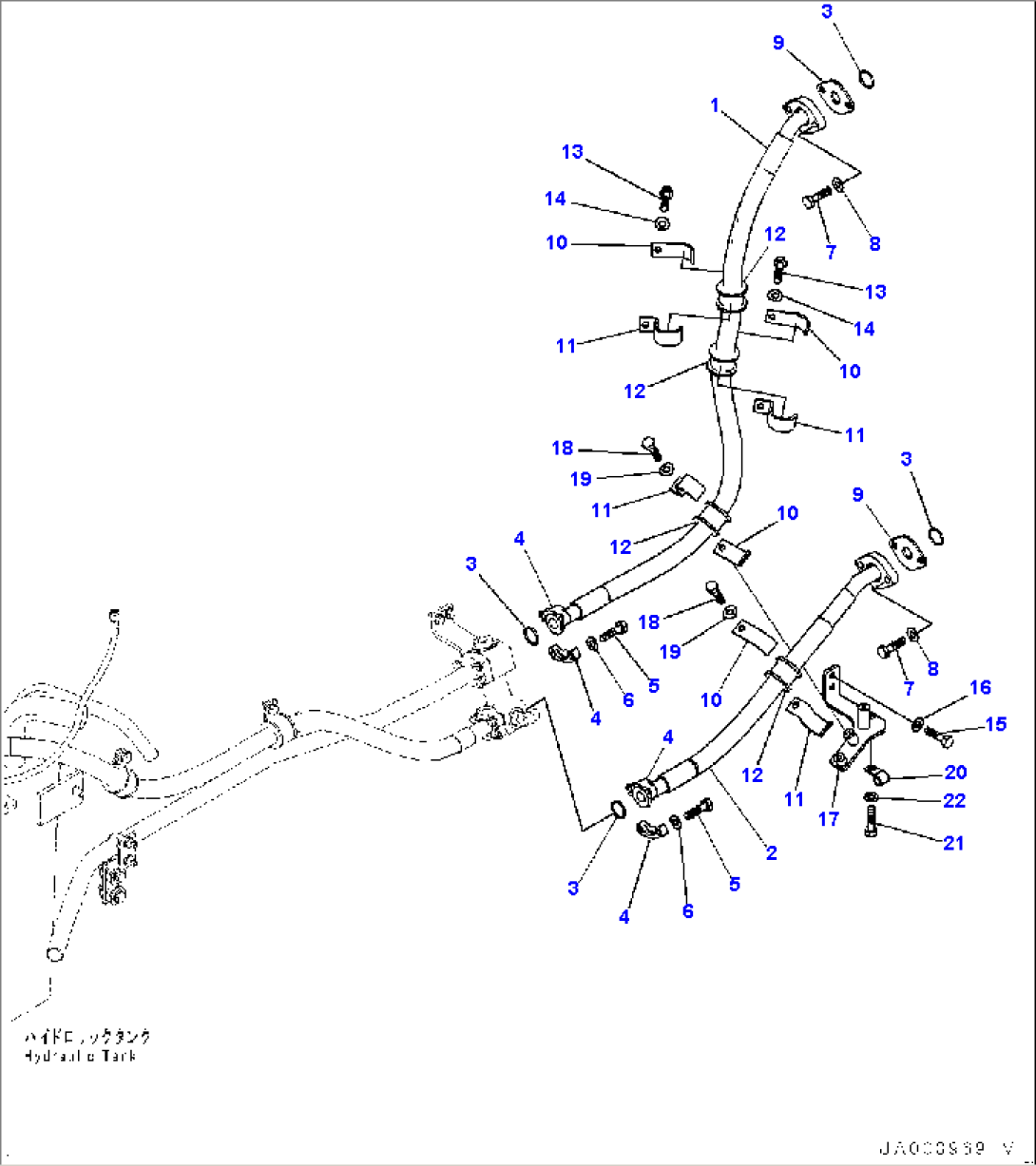

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 416-62-48110 | Hose | 80001- | |
| 2 | 416-62-48120 | Hose | 80001- | |
| 3 | 07000-13032 | O-ring | 80001- | |
| 4 | 07371-31049 | Flange, Split | 80001- | |
| 5 | 07372-21035 | Bolt | 80001- | |
| 6 | 01643-51032 | Washer | 80001- | |
| 7 | 01010-81045 | Bolt | 80001- | |
| 8 | 01643-31032 | Washer | 80001- | |
| 9 | 418-62-33550 | Flange | 80001- | |
| 10 | 418-62-32550 | Clamp | 80001- | |
| 11 | 418-62-32560 | Clamp | 80001- | |
| 12 | 21T-62-76840 | Cushion | 80001- | |
| 13 | 01010-81030 | Bolt | 80001- | |
| 14 | 01643-31032 | Washer | 80001- | |
| 15 | 01010-81025 | Bolt | 80001- | |
| 16 | 01643-31032 | Washer | 80001- | |
| 17 | 416-62-48130 | Bracket | 80001- | |
| 18 | 01010-81025 | Bolt | 80001- | |
| 19 | 01643-31032 | Washer | 80001- | |
| 20 | 04434-51608 | Clip | 80001- | |
| 21 | 01010-80820 | Bolt | 80001- | |
| 22 | 01643-30823 | Washer | 80001- |
