| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-06-55120 | Switch, Bucket Tilt Down | 70452- | |
| 2 | 195-06-55120 | Switch, Boom Down | 70452- | |
| 3 | 04434-50610 | Clip | 70452- | |
| 4 | 01010-81020 | Bolt | 70452- | |
| 5 | 01643-31032 | Washer | 70452- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa320pz 6 s/n 70452 up (for north america)
- Hydraulic system
- Hydraulic control valve, sensor (#70452 )
Поиск по каталогу

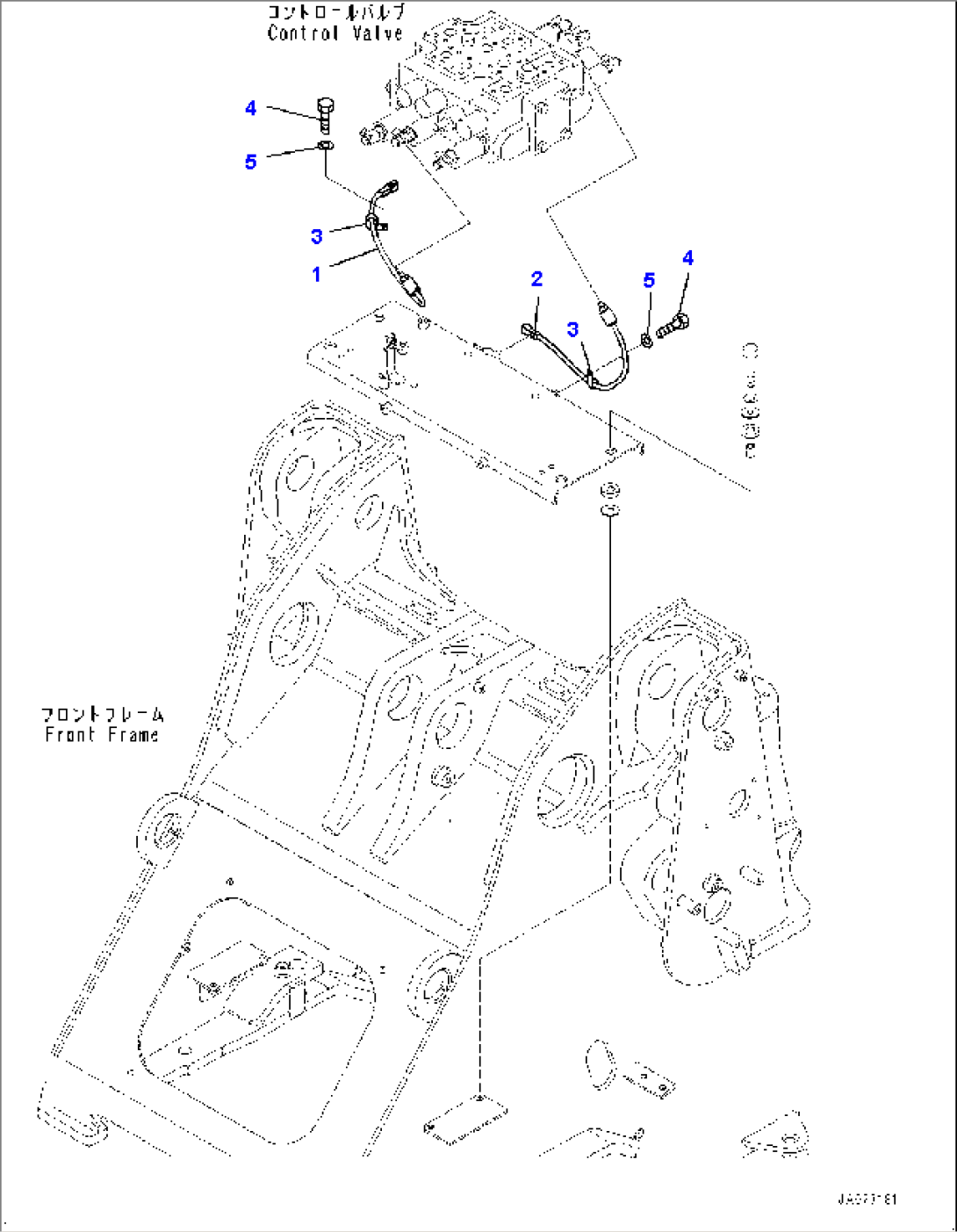

Hydraulic Control Valve, Sensor (#70452-)
