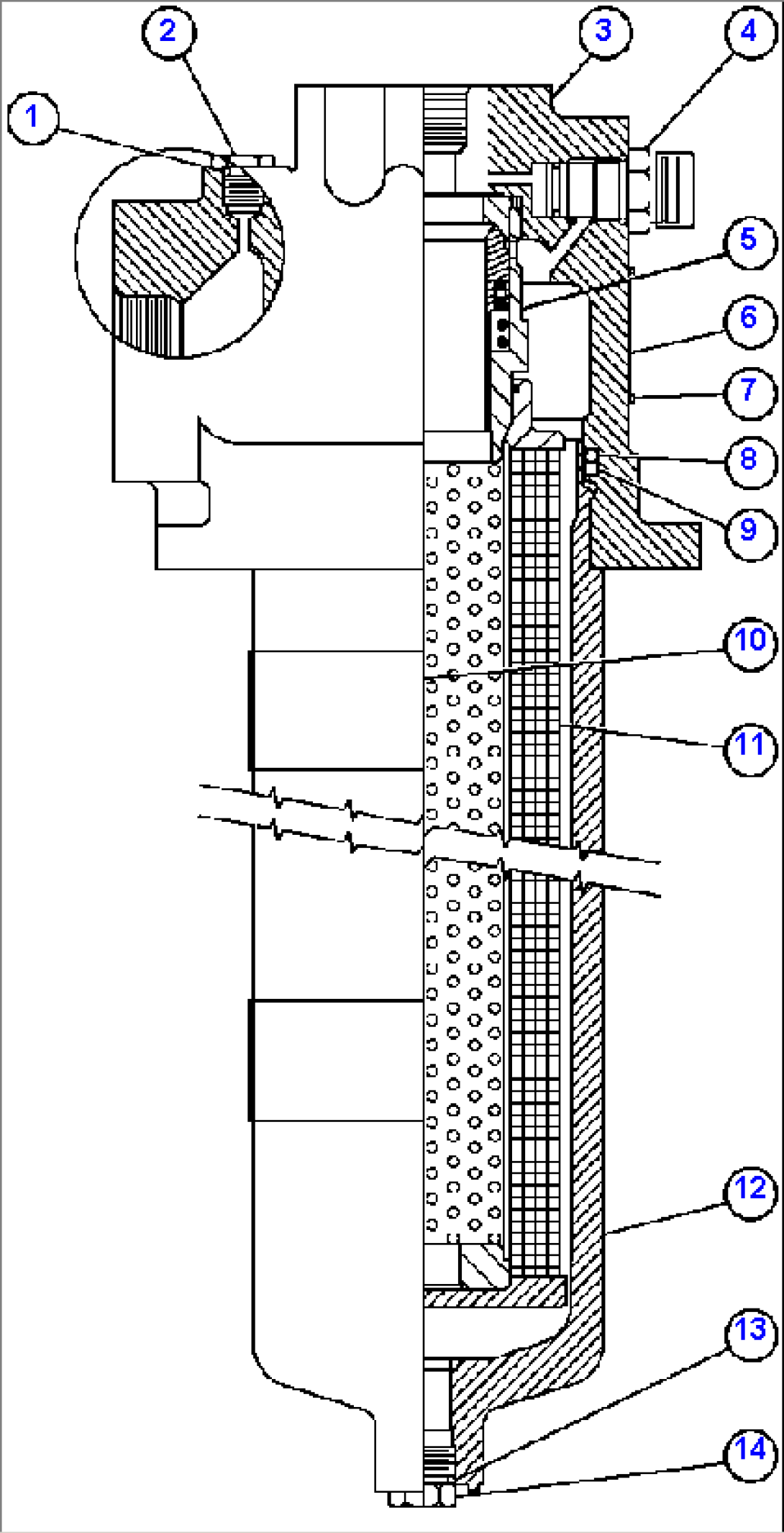

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | TF5194 | O-RING | ||
| 2 | VM0313 | PLUG | ||
| 3 | HEAD, FILTER (1) | |||
| 4 | PB7797 | SWITCH, PRESSURE | ||
| 5 | BF3084 | KIT, CORE | ||
| 6 | NAME PLATE (1) | |||
| 7 | BF2217 | DRIVE SCREW | ||
| 8 | VE7058 | O-RING | ||
| 9 | VE7057 | RING, BACK-UP | ||
| 10 | GRIP, HAND | |||
| 11 | AK3568 | ELEMENT, FILTER | ||
| 12 | BOWL (1) | |||
| 13 | TL3995 | O-RING | ||
| 14 | VE1978 | PLUG, DRAIN | ||
| NS|15 | NOTE: NS = NOT SHOWN | |||
| NS|16 | BF3092 | BRACKET |
