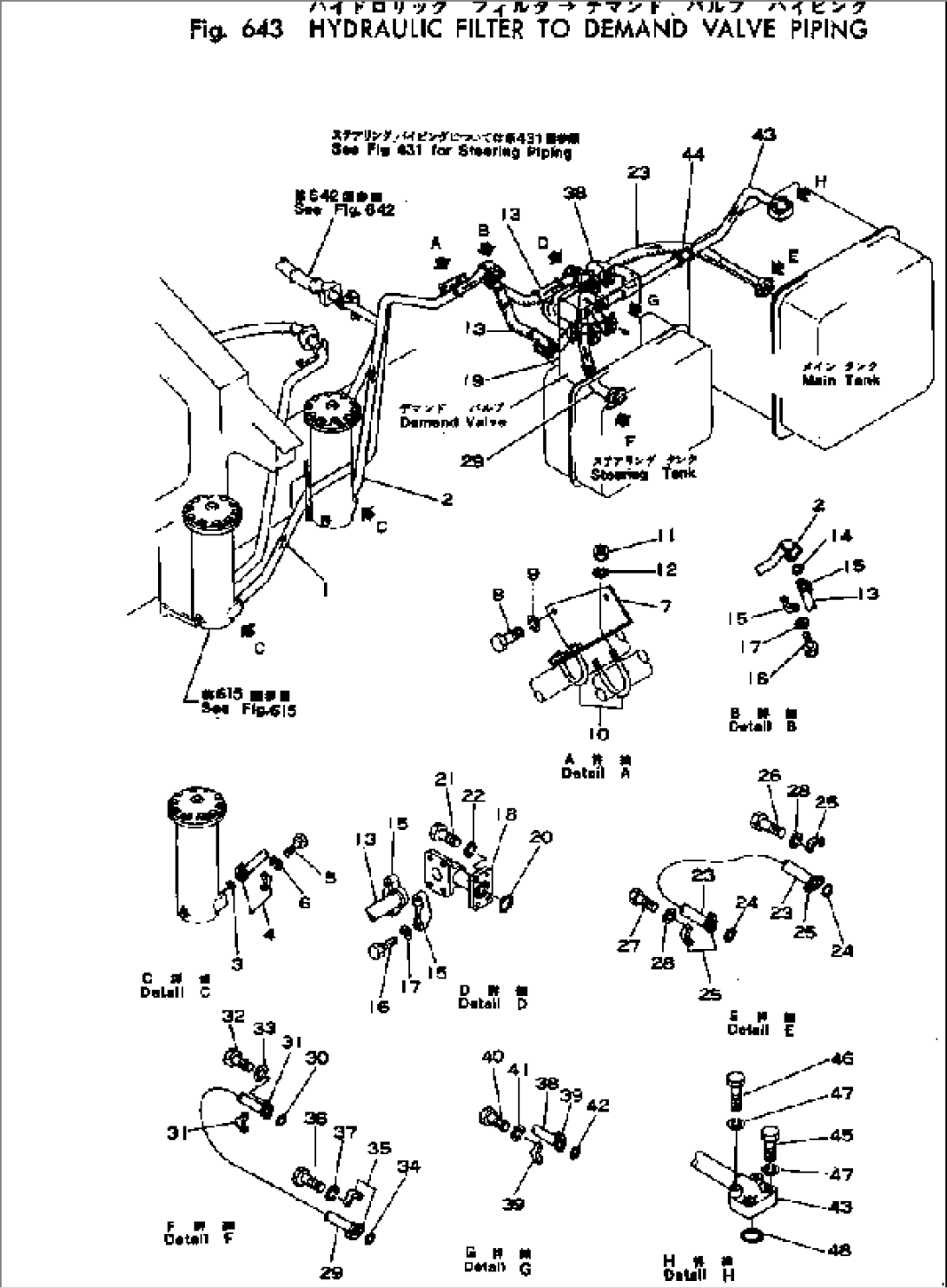

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-61-12141 | TUBE | 1002- | |
| 2 | 569-61-12152 | TUBE | 1069- | |
| 2 | 569-61-12151 | TUBE | 1002-1068 | |
| 3 | 07000-13038 | O-RING | 1069- | |
| 3 | \0\07000-23038 | O-RING | 1002-1068 | |
| 4 | 07371-31255 | FLANGE | 1069- | |
| 4 | \0\07371-21255 | FLANGE | 1002-1068 | |
| 5 | 07372-21030 | BOLT | 1002- | |
| 6 | 01602-21030 | WASHER | 1002- | |
| 7 | 569-61-12311 | BRACKET | 1002- | |
| 8 | 01010-51225 | BOLT | 1002- | |
| 9 | 01602-21236 | WASHER | 1002- | |
| 10 | 07283-23442 | CLIP | 1002- | |
| 11 | 01599-01011 | NUT | 1002- | |
| 12 | 01643-31032 | WASHER | 1002- | |
| 13 | 07114-01207 | HOSE | 1069- | |
| 13 | \0\07115-41207 | HOSE | 1002-1068 | |
| 14 | 07000-13038 | O-RING | 1069- | |
| 14 | \0\07000-23038 | O-RING | 1002-1068 | |
| 15 | 07371-11255 | FLANGE | 1002- | |
| 16 | 07372-21035 | BOLT | 1002- | |
| 17 | 01602-21030 | WASHER | 1002- | |
| 18 | 569-61-12160 | TUBE | 1002- | |
| 19 | 569-61-12171 | TUBE | 1002- | |
| 20 | 07000-13032 | O-RING | 1069- | |
| 20 | \0\07000-23032 | O-RING | 1002-1068 | |
| 21 | 07372-21040 | BOLT | 1002- | |
| 22 | 01602-21030 | WASHER | 1002- | |
| 23 | 566-61-12720 | HOSE | 1002- | |
| 24 | 07000-13048 | O-RING | 1069- | |
| 24 | \0\07000-23048 | O-RING | 1002-1068 | |
| 25 | 07371-31465 | FLANGE | 1069- | |
| 25 | \0\07371-21465 | FLANGE | 1002-1068 | |
| 26 | 07372-21245 | BOLT | 1002- | |
| 27 | 07372-21240 | BOLT | 1002- | |
| 28 | 01602-21236 | WASHER | 1002- | |
| 29 | 566-61-12740 | HOSE | 1002- | |
| 30 | 07000-13032 | O-RING | 1069- | |
| 30 | \0\07000-23032 | O-RING | 1002-1068 | |
| 31 | 07371-31049 | FLANGE | 1069- | |
| 31 | \0\07371-21049 | FLANGE | 1002-1068 | |
| 32 | 01010-51065 | BOLT | 1002- | |
| 33 | 01602-21030 | WASHER | 1002- | |
| 34 | 07000-13048 | O-RING | 1069- | |
| 34 | \0\07000-23048 | O-RING | 1002-1068 | |
| 35 | 07371-31465 | FLANGE | 1069- | |
| 35 | \0\07371-21465 | FLANGE | 1002-1068 | |
| 36 | 07372-21245 | BOLT | 1002- | |
| 37 | 01602-21236 | WASHER | 1002- | |
| 38 | 566-61-12322 | TUBE | 1002- | |
| 39 | 07371-31049 | FLANGE | 1069- | |
| 39 | \0\07371-21049 | FLANGE | 1002-1068 | |
| 40 | 07372-21035 | BOLT | 1002- | |
| 41 | 01602-21030 | WASHER | 1002- | |
| 42 | 07000-13032 | O-RING | 1069- | |
| 42 | \0\07000-23032 | O-RING | 1002-1068 | |
| 43 | 566-61-12371 | TUBE | 1002- | |
| 44 | 07332-01000 | COUPLING ASS'Y | 1002- | |
| 44 | 07332-51000 | GASKET | 1002- | |
| 44 | 07332-61000 | CLAMP | 1002- | |
| 45 | 01010-51045 | BOLT | 1002- | |
| 46 | 01010-51060 | BOLT | 1002- | |
| 47 | 01602-21030 | WASHER | 1002- | |
| 48 | 07000-13035 | O-RING | 1069- | |
| 48 | \0\07000-23035 | O-RING | 1002-1068 |
