| Item | Part No. | Part Name | Qty | Serial No. |
| 705-95-07030 | PUMP ASS'Y,SDR(30)100+100+SB(1)8 | 2001-2427 | ||

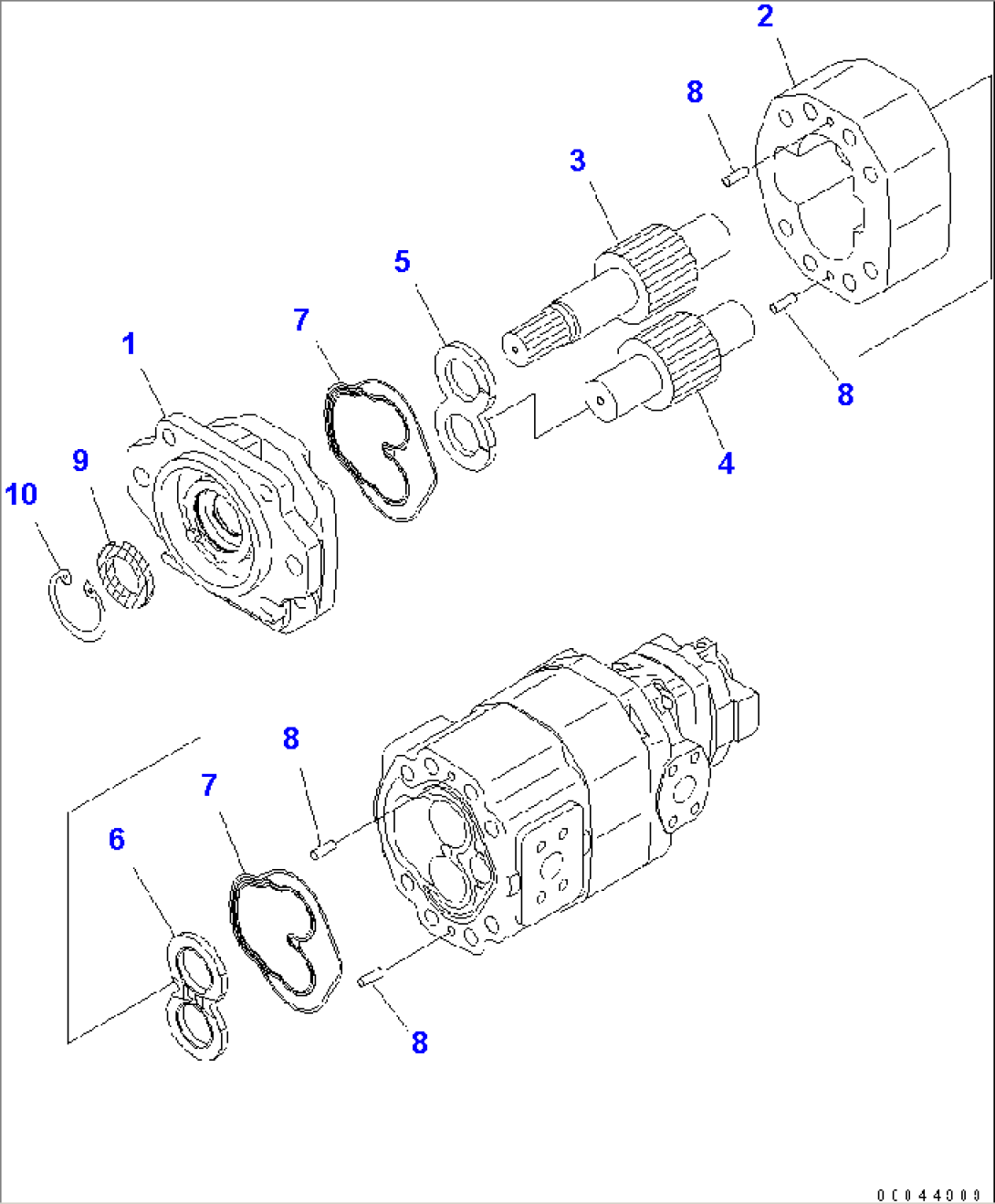

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-01A1 TO Y1610-03A1. | ||||
| (\7\705-95-80030) | BRACKET ASS'Y | 2001-2427 | ||
| 1 | (\7\705-95-80040) | BRACKET | 2001-2427 | |
| 1 | (\7\705-94-80610) | BUSHING | 2001-2427 | |
| 1 | (\7\705-94-80620) | BUSHING | 2001-2427 | |
| 2 | (\7\705-94-40021) | CASE | 2001-2427 | |
| 3 | (\7\705-94-40610) | GEAR,DRIVE | 2001-2427 | |
| 4 | (\7\705-94-40510) | GEAR,DRIVEN | 2001-2427 | |
| 5 | 705-94-80711 | PLATE | 2001-2427 | |
| 6 | 705-94-80721 | PLATE | 2001-2427 | |
| 7 | 705-40-80770 | SEAL,RING | 2001-2427 | |
| 8 | 04020-00820 | PIN,DOWEL | 2001-2427 | |
| 9 | 705-94-80820 | SEAL,OIL | 2001-2427 | |
| 10 | 04065-05820 | RING,SNAP | 2001-2427 |
