| Item | Part No. | Part Name | Qty | Serial No. |
| (705-95-07031) | PUMP ASS'Y,SDR(30)80+80+SB(1)8 | 2428- | ||

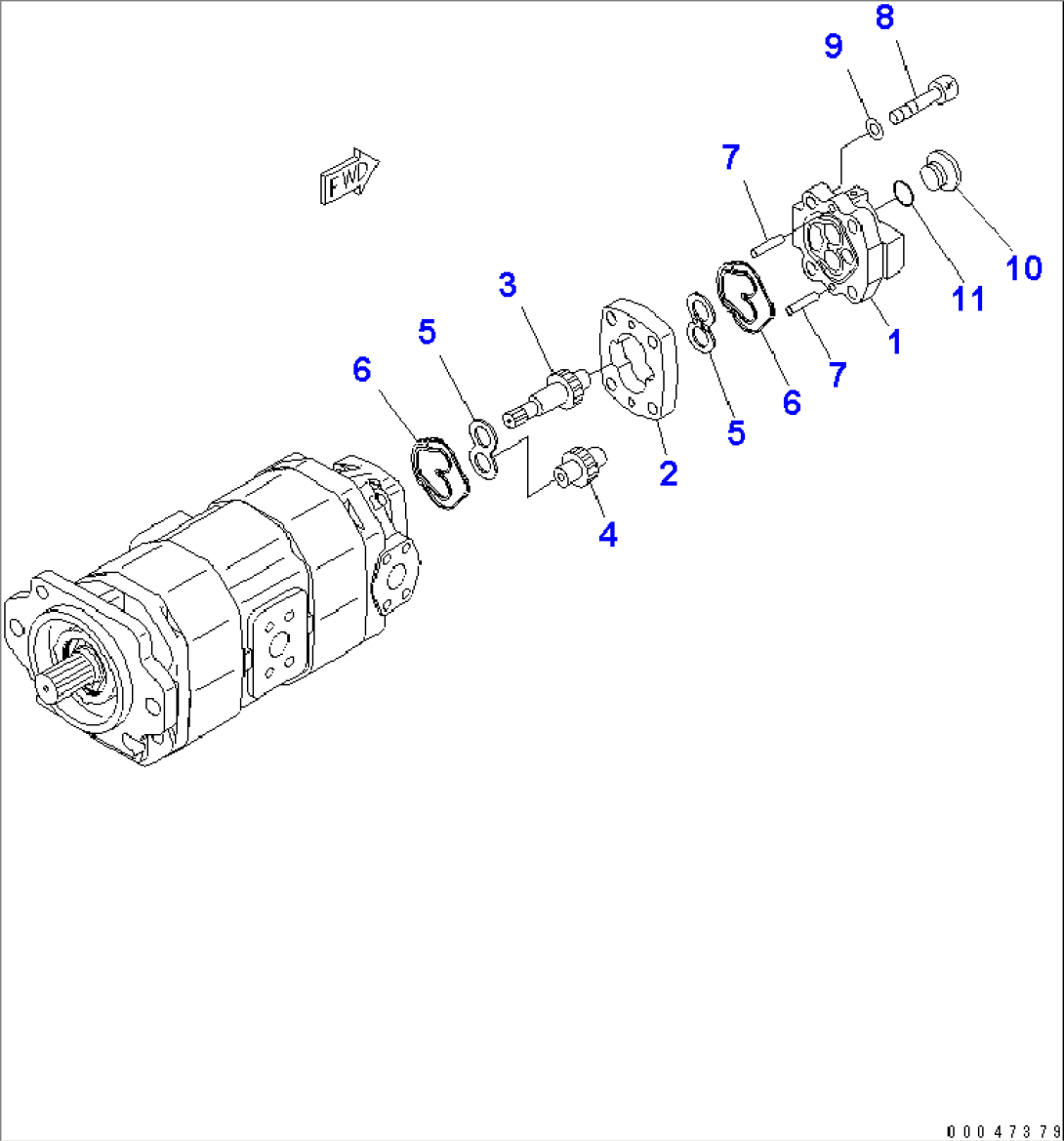

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-01A1A TO Y1610-03A1A . | ||||
| 1 | (\7\705-40-80150) | COVER ASS'Y | 2428- | |
| 1 | (\7\705-40-80610) | BUSHING | 2428- | |
| 1 | (\7\705-40-80620) | BUSHING | 2428- | |
| 2 | (\7\705-40-20011) | CASE | 2428- | |
| 3 | (\7\705-40-20820) | GEAR,DRIVE | 2428- | |
| 4 | (\7\705-40-20511) | GEAR,DRIVEN | 2428- | |
| 5 | 705-40-83720 | PLATE | 2428- | |
| 6 | 705-40-80770 | SEAL,RING | 2428- | |
| 7 | 705-67-01910 | PIN,DOWEL | 2428- | |
| 8 | 01252-71260 | BOLT | 2428- | |
| 9 | 01643-51232 | WASHER | 2428- | |
| 10 | 705-40-80890 | PLUG | 2428- | |
| 11 | 705-40-80690 | O-RING | 2428- |
