| Item | Part No. | Part Name | Qty | Serial No. |
| 705-95-07040 | PUMP ASS'Y,SDR(30)80+SB(1)12+8 | 2001- | ||

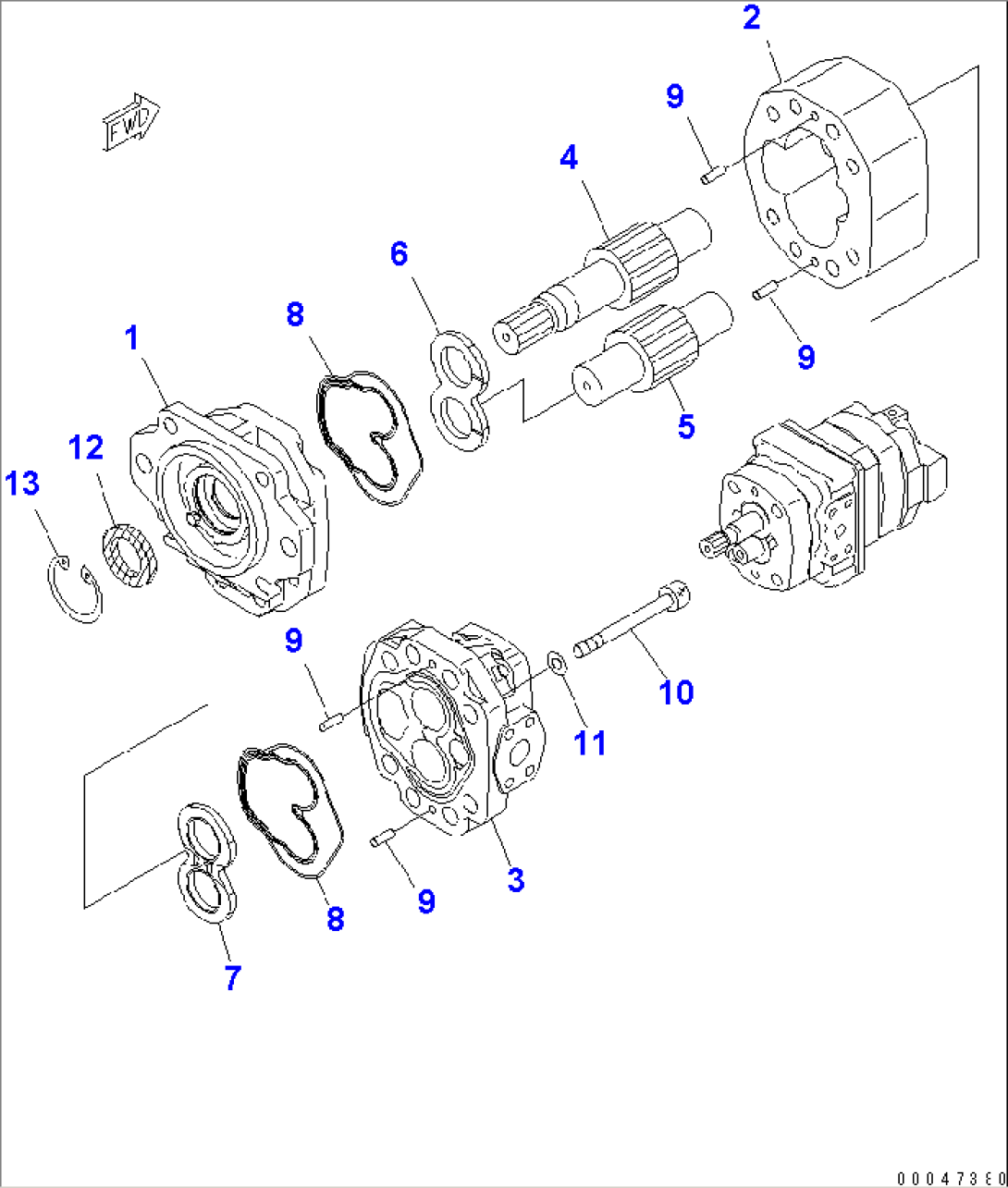

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.Y1610-11A1 TO Y1610-13A1. | ||||
| (\7\705-95-80010) | BRACKET ASS'Y | 2001- | ||
| 1 | (\7\705-95-80021) | BRACKET | 2001- | |
| 1 | (\7\705-94-80610) | BUSHING | 2001- | |
| 1 | (\7\705-94-80620) | BUSHING | 2001- | |
| 2 | (\7\705-94-38021) | CASE | 2001- | |
| 3 | (\7\705-95-80330) | COVER ASS'Y | 2001- | |
| 3 | (\7\705-94-80610) | BUSHING | 2001- | |
| 3 | (\7\705-94-80620) | BUSHING | 2001- | |
| 4 | (\7\705-94-38620) | GEAR,DRIVE | 2001- | |
| 5 | (\7\705-94-38510) | GEAR,DRIVEN | 2001- | |
| 6 | 705-94-80711 | PLATE | 2001- | |
| 7 | 705-94-80721 | PLATE | 2001- | |
| 8 | 705-94-80770 | SEAL,RING | 2001- | |
| 9 | 04020-00820 | PIN,DOWEL | 2001- | |
| 10 | 01253-61410 | BOLT | 2001- | |
| 11 | 01643-31445 | WASHER | 2001- | |
| 12 | 705-94-80820 | SEAL,OIL | 2001- | |
| 13 | 04065-05820 | RING,SNAP | 2001- |
