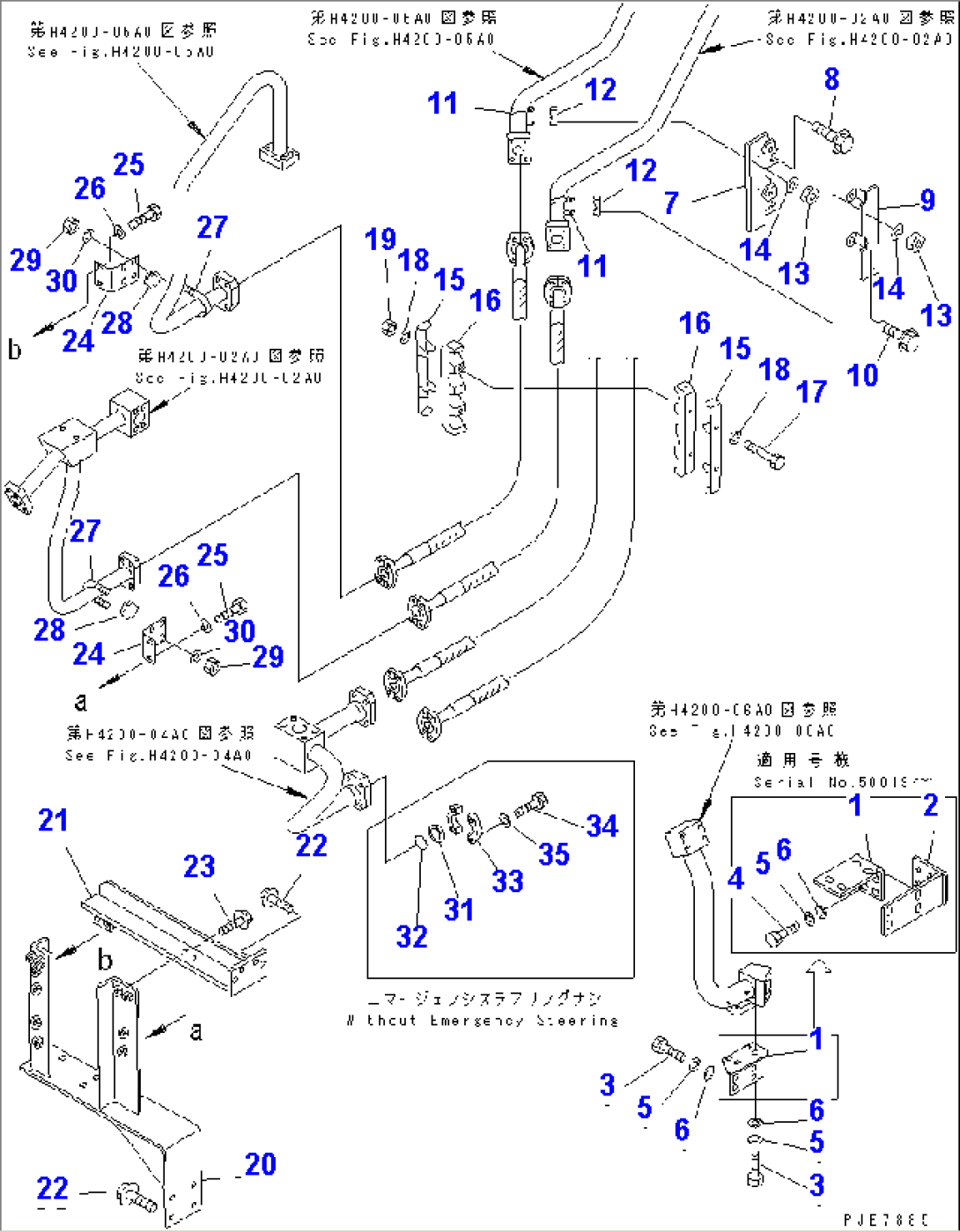

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-62-25510 | BRACKET | 50019- | |
| 427-62-15120 | BRACKET | 50001-50018 | ||
| 2 | 427-62-25520 | BRACKET | 50019- | |
| 3 | 01010-81640 | BOLT | 50001- | |
| 4 | 01010-81645 | BOLT | 50019- | |
| 5 | 01643-31645 | WASHER | 50019- | |
| 01643-31645 | WASHER | 50001-50018 | ||
| 6 | 01643-31845 | WASHER | 50019- | |
| 01643-31845 | WASHER | 50001-50018 | ||
| 7 | 427-62-13842 | BRACKET | 50001- | |
| 8 | 01435-01230 | BOLT | 50001- | |
| 9 | 427-62-13851 | BRACKET | 50001- | |
| 10 | 01435-01230 | BOLT | 50001- | |
| 11 | 07283-34957 | CLIP | 50001- | |
| 12 | 07283-54959 | SEAT | 50001- | |
| 13 | 01597-01009 | NUT | 50001- | |
| 14 | 01643-31032 | WASHER | 50001- | |
| 15 | 427-62-24890 | BRACKET | 50001- | |
| 16 | 427-62-14881 | STRIP | 50001- | |
| 17 | 01011-81015 | BOLT | 50001- | |
| 18 | 01643-31032 | WASHER | 50001- | |
| 19 | 01596-01009 | NUT | 50001- | |
| 20 | 427-62-12534 | BRACKET | 50001- | |
| 21 | 427-62-12544 | BRACKET | 50001- | |
| 22 | 01435-01240 | BOLT | 50001- | |
| 23 | 01435-01235 | BOLT | 50001- | |
| 24 | 427-62-12553 | PLATE | 50001- | |
| 25 | 01010-81235 | BOLT | 50001- | |
| 26 | 124-54-26540 | WASHER | 50001- | |
| 27 | 07283-34957 | CLIP | 50001- | |
| 28 | 07283-54959 | SEAT | 50001- | |
| 29 | 01597-01009 | NUT | 50001- | |
| 30 | 01643-31032 | WASHER | 50001- | |
| 31 | 07378-11410 | HEAD,SLEEVE | 50001- | |
| 32 | 07000-F3048 | O-RING | 50001- | |
| 33 | 07371-51470 | FLANGE,SPLIT | 50001- | |
| 34 | 01010-81455 | BOLT | 50001- | |
| 35 | 01643-31445 | WASHER | 50001- |
