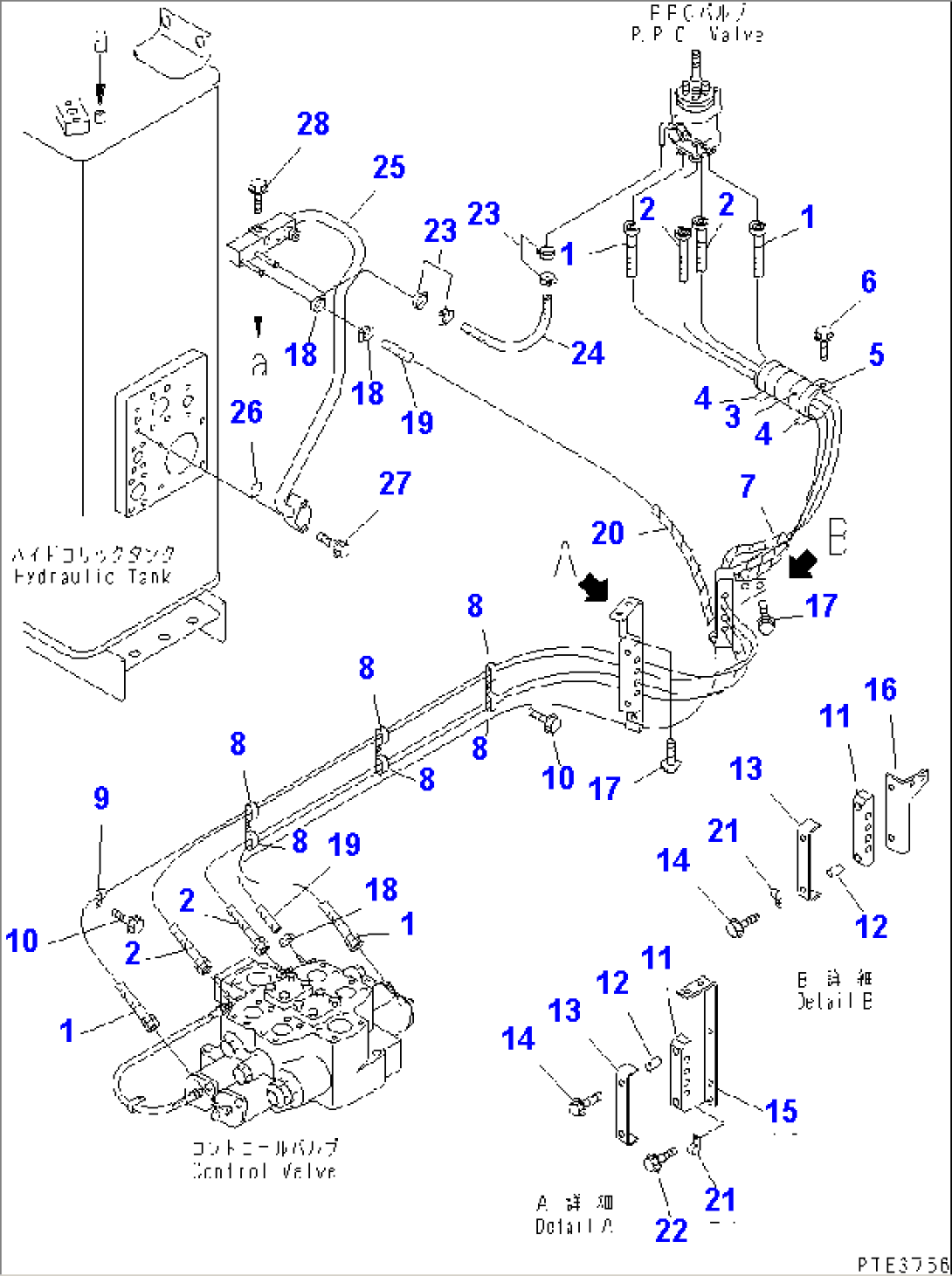

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-62-23480 | HOSE | 50001-50313 | |
| 2 | 425-62-23380 | HOSE | 50001-50313 | |
| 3 | 427-62-11650 | COVER | 50001-@ | |
| 4 | 08034-20536 | BAND | 50001-@ | |
| 5 | 198-911-4480 | CLIP | 50001-@ | |
| 6 | 01435-01016 | BOLT | 50001-@ | |
| 7 | 363-04-33110 | PROTECTOR | 50001-50313 | |
| 8 | 04435-51510 | CLIP | 50001-@ | |
| 9 | 04434-51510 | CLIP | 50001-50313 | |
| 10 | 01435-01016 | BOLT | 50001-50313 | |
| 11 | 426-62-23240 | RUBBER | 50001-@ | |
| 12 | 419-43-17910 | SPACER | 50001-@ | |
| 13 | 426-62-23730 | PLATE | 50001-@ | |
| 14 | 01435-01055 | BOLT | 50001-@ | |
| 15 | 425-62-23530 | BRACKET | 50001-@ | |
| 16 | 425-62-23570 | BRACKET | 50001-@ | |
| 17 | 01435-01020 | BOLT | 50001-@ | |
| 18 | 07281-00197 | CLAMP | 50001-@ | |
| 19 | 07261-20929 | HOSE | 50001-@ | |
| 20 | 363-04-33110 | PROTECTOR | 50001-@ | |
| 21 | 04434-51610 | CLIP | 50001-@ | |
| 22 | 01435-01016 | BOLT | 50001-@ | |
| 23 | 07281-00197 | CLAMP | 50001-@ | |
| 24 | 07260-20928 | HOSE | 50001-@ | |
| 25 | 425-62-23510 | TUBE | 50001-@ | |
| 26 | 07000-13025 | O-RING | .-@ | |
| \1\07000-03025 | O-RING | 50001-. | ||
| 27 | 01435-01050 | BOLT | 50001-@ | |
| 28 | 01435-01020 | BOLT | 50001-@ |
