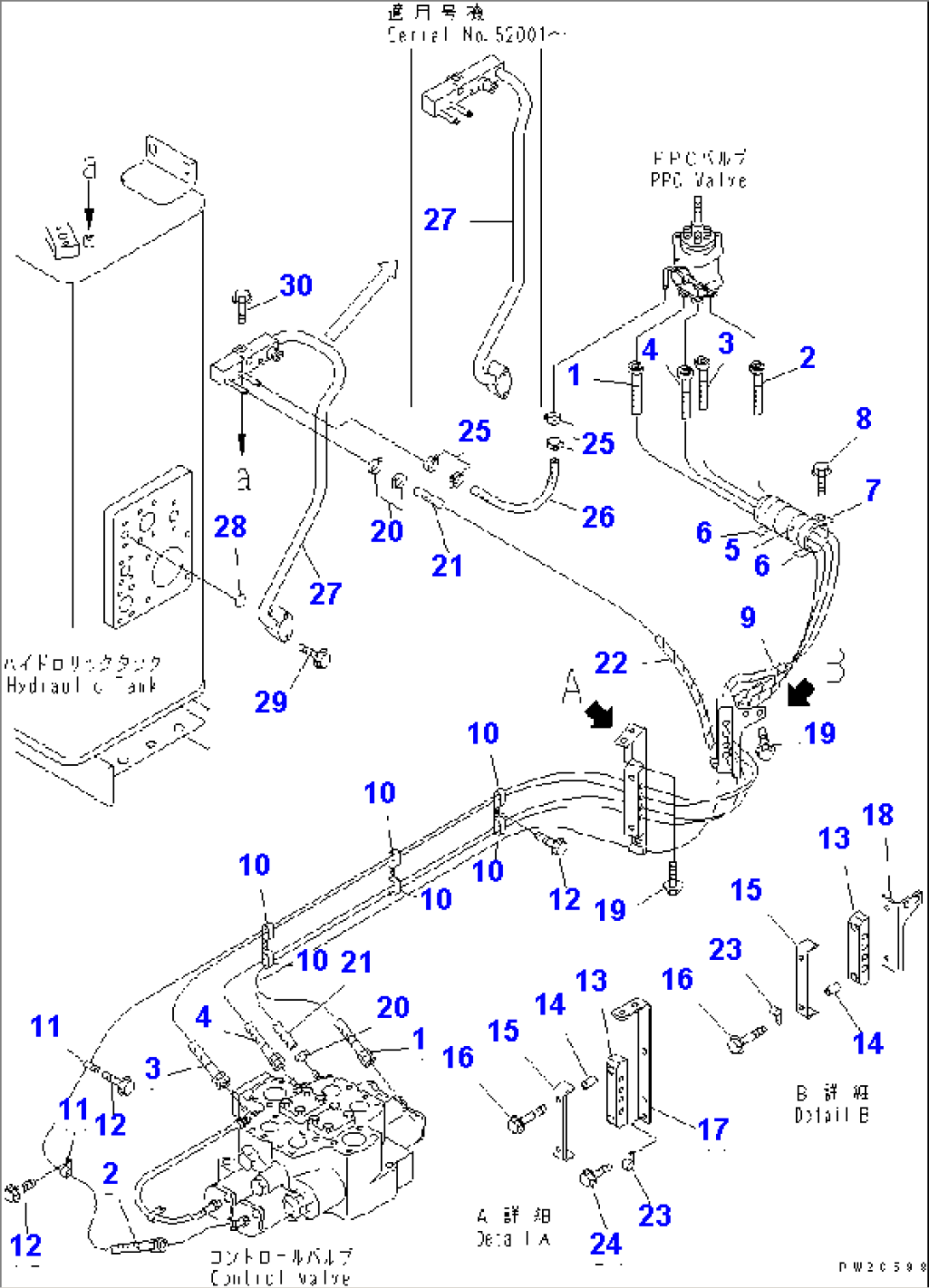

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-62-23481 | HOSE | 50314- | |
| (\2\425-62-23480) | HOSE | (50314-54056) | ||
| 2 | 425-877-2221 | HOSE | 50314- | |
| (\2\425-877-2220) | HOSE | (50314-54056) | ||
| 3 | 425-S31-2161 | HOSE | 50314- | |
| (\2\425-S31-2160) | HOSE | (50314-54056) | ||
| 4 | 425-62-23381 | HOSE | 50314- | |
| (\2\425-62-23380) | HOSE | (50314-54056) | ||
| 5 | 427-62-11650 | COVER | 50001- | |
| 6 | 08034-20536 | BAND | 50001- | |
| 7 | 198-911-4480 | CLIP | 50001- | |
| 8 | 01435-01016 | BOLT | 50001- | |
| 9 | 363-04-33110 | PROTECTOR | 50314- | |
| 10 | 04435-51510 | CLIP | 50001- | |
| 11 | 04434-51510 | CLIP | .- | |
| 04434-51510 | CLIP | 50314-. | ||
| 12 | 01435-01016 | BOLT | 50314- | |
| 13 | 426-62-23240 | RUBBER | 50001- | |
| 14 | 419-43-17910 | SPACER | 50001- | |
| 15 | 426-62-23730 | PLATE | 50001- | |
| 16 | 01435-01055 | BOLT | 50001- | |
| 17 | 425-62-23530 | BRACKET | 50001- | |
| 18 | 425-62-23570 | BRACKET | 50001- | |
| 19 | 01435-01020 | BOLT | 50001- | |
| 20 | 07281-00197 | CLAMP | 50001- | |
| 21 | 07261-20929 | HOSE | 50001- | |
| 22 | 363-04-33110 | PROTECTOR | 50001- | |
| 23 | 04434-51610 | CLIP | 50001- | |
| 24 | 01435-01016 | BOLT | 50001- | |
| 25 | 07281-00197 | CLAMP | 50001- | |
| 26 | 07260-20928 | HOSE | 50001- | |
| 27 | 425-62-23690 | TUBE | 52001- | |
| 425-62-23510 | TUBE | 50001-52000 | ||
| 28 | 07000-13025 | O-RING | .- | |
| 29 | 01435-01050 | BOLT | 50001- | |
| 30 | 01435-01020 | BOLT | 50001- |
