| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 7861-92-1620 | SENSOR | 50001- | |
| 2 | 07002-21823 | O-RING | 50001- | |
| 3 | 07000-F1009 | O-RING | 50001- | |
| 4 | 07002-21423 | O-RING | 50001- | |
| 5 | 07235-10210 | ELBOW | 50001- | |
| 6 | 07082-00203 | HOSE | 50001- | |
| 7 | 07230-20210 | UNION | 50001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa900 3 s/n 50001 up
- Hydraulic system
- Hydraulic line (sensor line) (m.d.p. monitor)
Поиск по каталогу

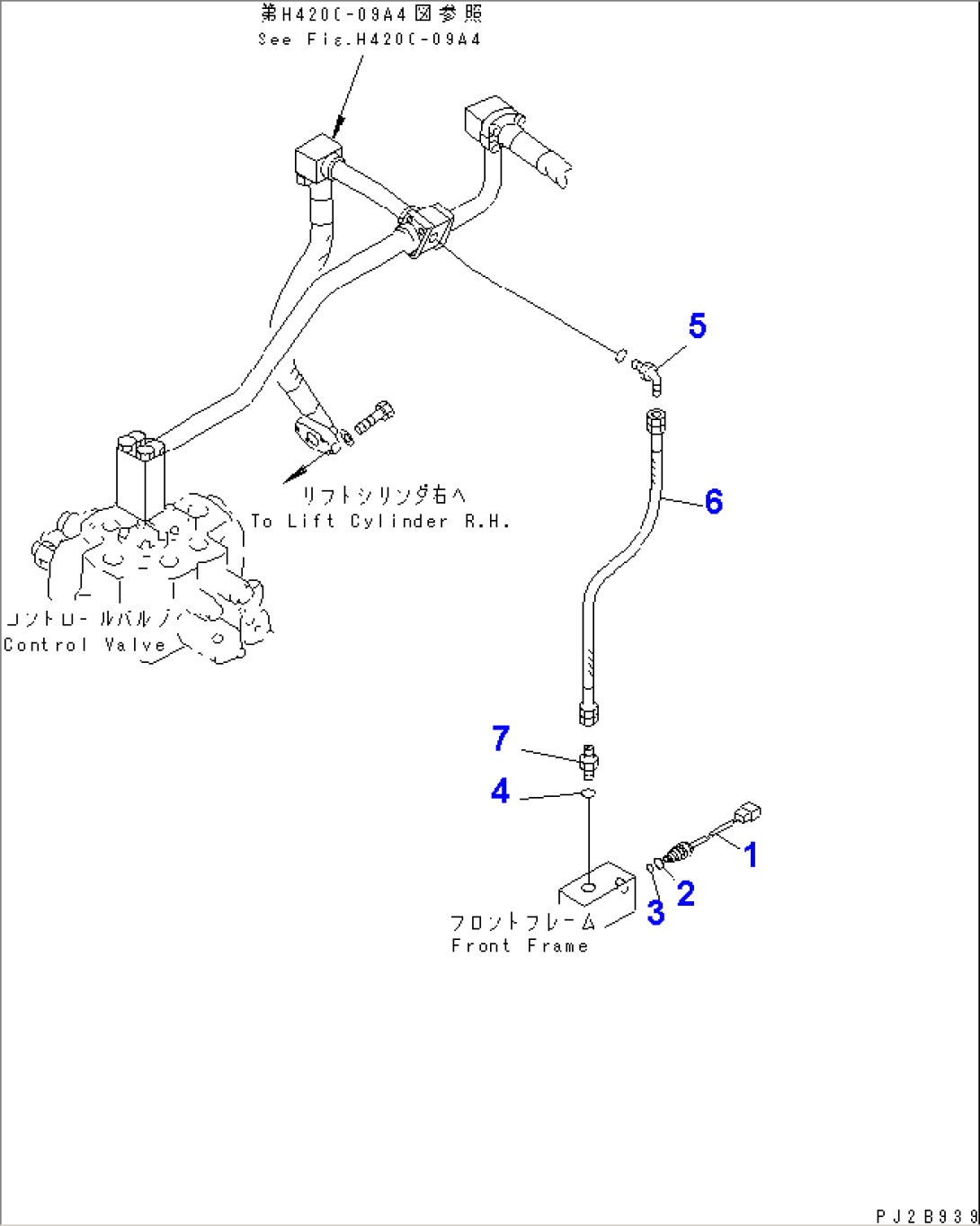

HYDRAULIC LINE (SENSOR LINE) (M.D.P. MONITOR)
