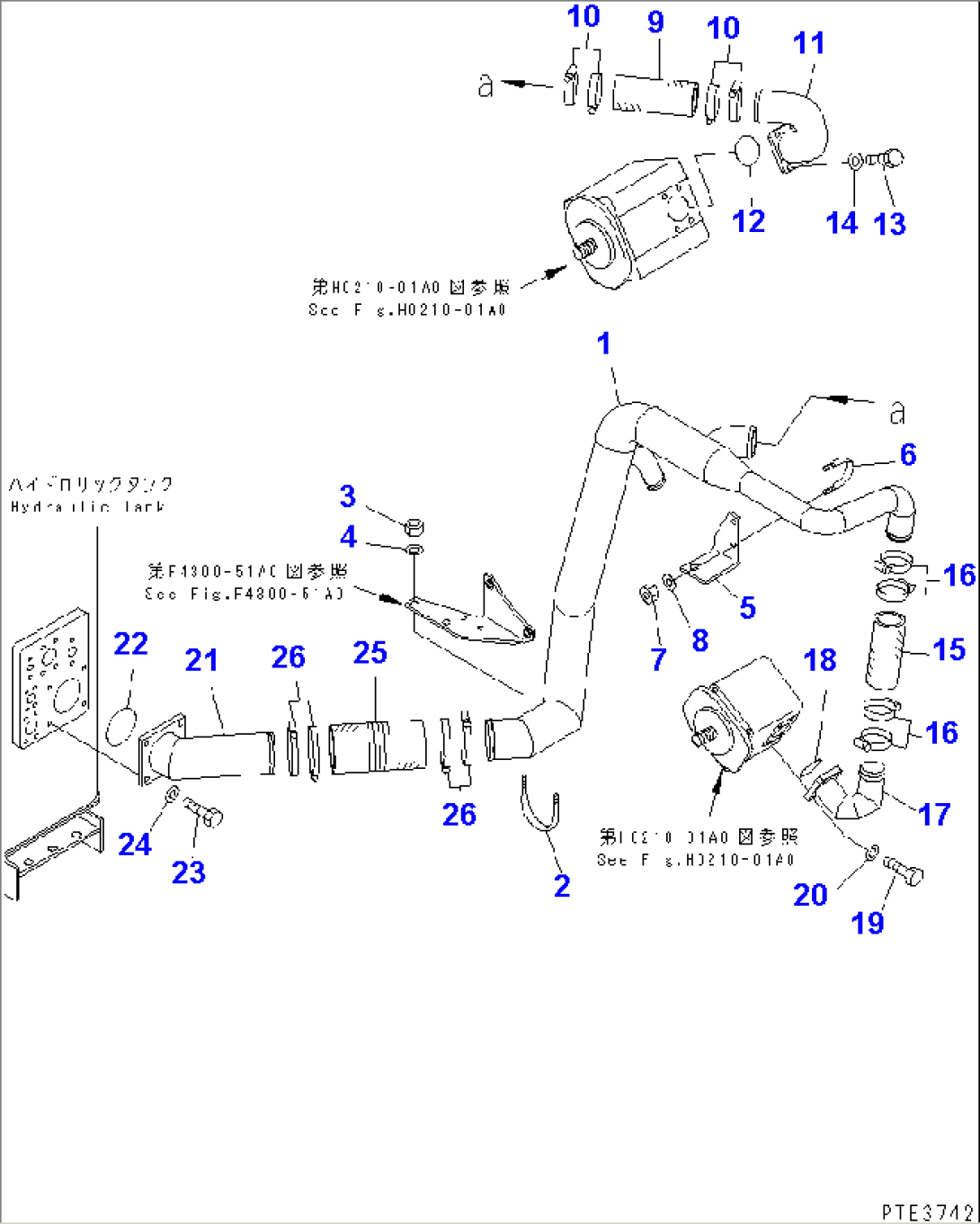

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 425-62-23124 | TUBE | 50047- | |
| \0\425-62-23123 | TUBE | 50001-50046 | ||
| 2 | 07283-21079 | CLIP | 50001- | |
| 3 | 01597-01211 | NUT | 50001- | |
| 4 | 01643-31232 | WASHER | 50001- | |
| 5 | 425-62-23171 | PLATE | 50001- | |
| 6 | 07283-36155 | CLIP | .- | |
| 07283-26155 | CLIP | 50001-. | ||
| 7 | 01597-01009 | NUT | 50001- | |
| 8 | 01643-31032 | WASHER | 50001- | |
| 9 | 07260-07420 | HOSE | 50001- | |
| 10 | 07281-01029 | CLAMP | 50001- | |
| 11 | 425-62-23131 | TUBE | 50001- | |
| 12 | 07000-12075 | O-RING | 50001- | |
| 13 | 07372-21235 | BOLT | 50001- | |
| 14 | 01643-51232 | WASHER | 50001- | |
| 15 | 07260-05818 | HOSE | 50001- | |
| 16 | 07281-00909 | CLAMP | 50001- | |
| 17 | 425-62-23152 | TUBE | 50001- | |
| 18 | 07000-12060 | O-RING | .- | |
| \1\07000-02060 | O-RING | 50001-. | ||
| 19 | 07372-21235 | BOLT | 50001- | |
| 20 | 01643-51232 | WASHER | 50001- | |
| 21 | 425-62-23810 | TUBE | 52001- | |
| 425-62-23110 | TUBE | 50001-52000 | ||
| 22 | 07000-12105 | O-RING | .- | |
| \1\07000-02105 | O-RING | 50001-. | ||
| 23 | 01010-81235 | BOLT | .- | |
| \1\01010-51235 | BOLT | 50001-. | ||
| 24 | 01643-31232 | WASHER | 50001- | |
| 25 | 421-62-23940 | HOSE | 50001- | |
| 26 | 07289-00120 | CLAMP | 50001- |
