| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07002-11423 | O-RING | 50001- | |
| 2 | 426-62-13270 | UNION | 50001- | |
| 3 | 426-62-23940 | ELBOW | 50393- | |
| 426-62-23940 | ELBOW | 50001-50392 | ||
| 3A | 426-62-24240 | ELBOW | 50393- | |
| 4 | 07042-20108 | PLUG | 50001- |
- Главная
- Каталог запчастей
- Колесные погрузчики
- Wa600 3 s/n 50001 up
- Hydraulic system
- Hydraulic main valve (related parts) (with 3 spool valve)
Поиск по каталогу

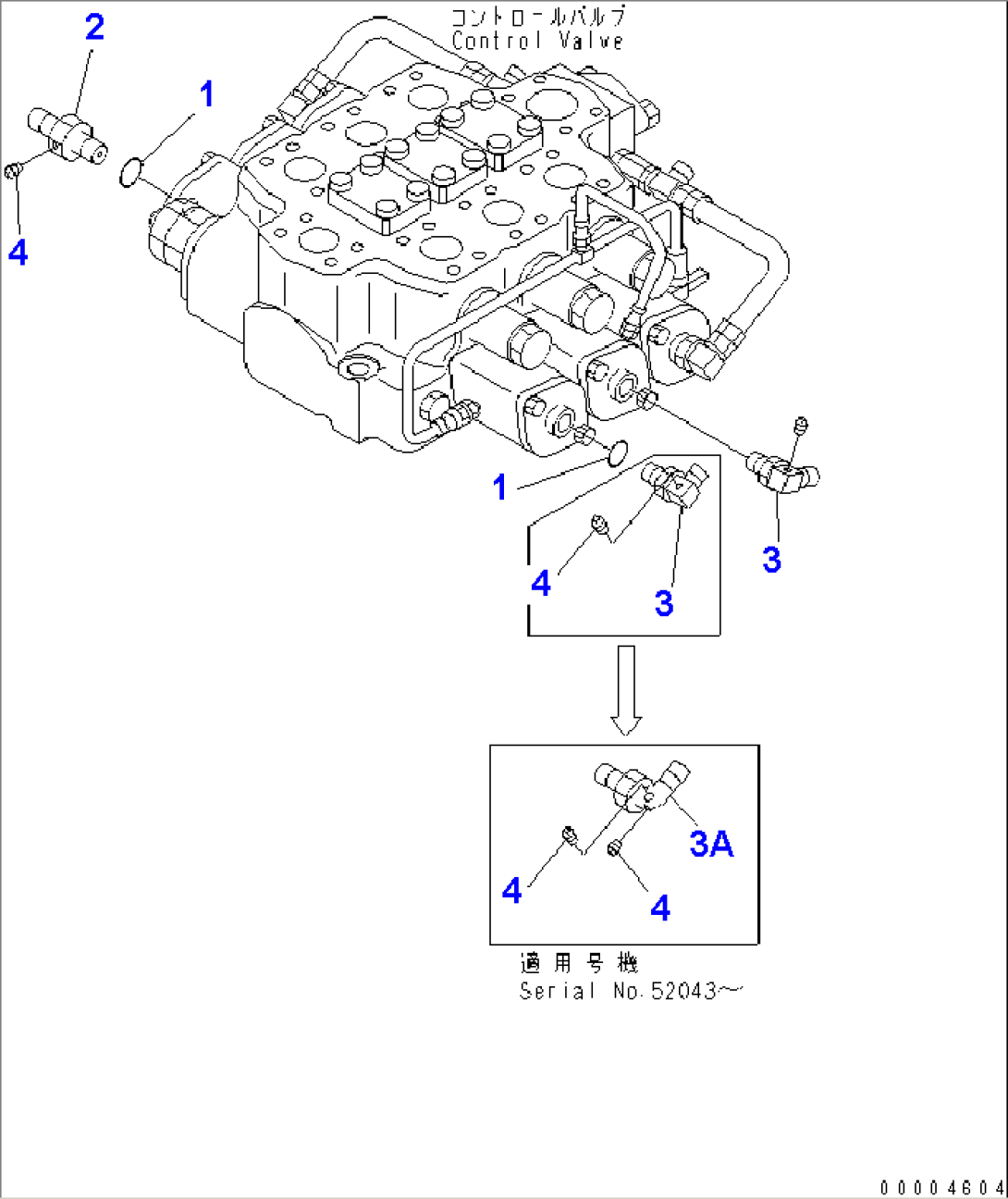

HYDRAULIC MAIN VALVE (RELATED PARTS) (WITH 3-SPOOL VALVE)
