| Item | Part No. | Part Name | Qty | Serial No. |

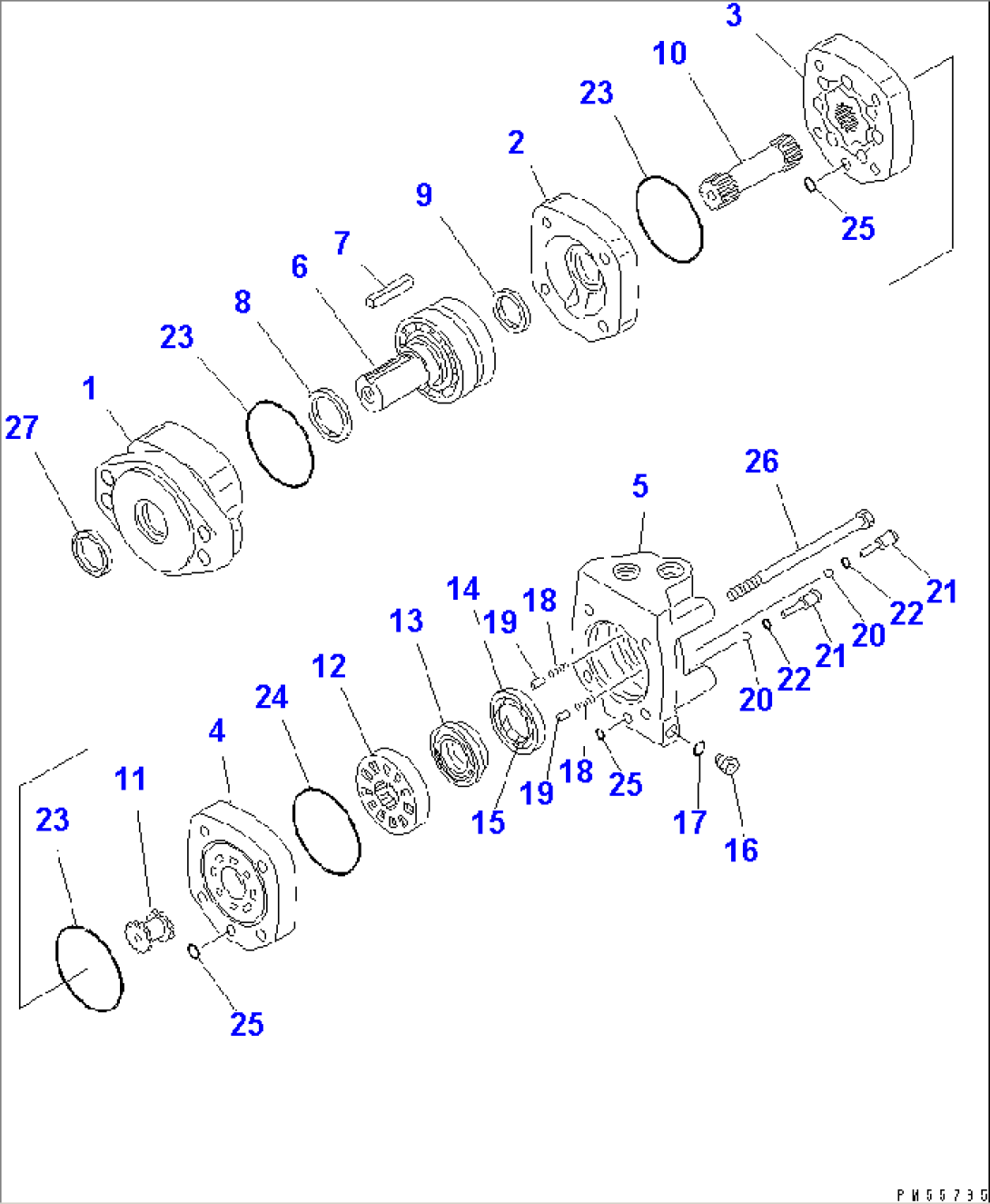

| 23B-62-11400 | MOTOR ASS'Y | 1501- | ||
| THE SUMITOMO EATON PART NUMBER IS THAT ST IS REMOVED FROM KOMATSU PART NUMBER LISTED BELOW. | ||||
| 1 | ST7385-3 | HOUSING | 1501- | |
| (\2\23A-62-11110) | HOUSING | (1501-1501) | ||
| 2 | 232-62-11580 | PLATE | 1501- | |
| 3 | 23B-62-11420 | ROTOR | 1501- | |
| 4 | 232-62-11660 | PLATE | 1501- | |
| 5 | ST8355S-10 | HOUSING | 1501- | |
| (\2\232-62-11750) | HOUSING | (1501-1501) | ||
| 6 | ST7404-3 | SHAFT | 1501- | |
| (\2\23A-62-11120) | SHAFT | (1501-1501) | ||
| 7 | ST14352 | KEY | 1501- | |
| (\2\23A-62-11130) | KEY | (1501-1501) | ||
| 8 | ST9075-1 | SEAL,OIL (K18) | 1501- | |
| (\2\232-62-11540) | SEAL,OIL (K18) | (1501-1501) | ||
| 9 | ST9050 | SEAL,OIL (K18) | 1501- | |
| (\2\232-62-11570) | SEAL,OIL (K18) | (1501-1501) | ||
| 10 | 23B-62-11410 | SHAFT,DRIVE | 1501- | |
| 11 | 232-62-11650 | DRIVE | 1501- | |
| 12 | 232-62-11680 | VALVE | 1501- | |
| 13 | ST8915 | PLATE | 1501- | |
| (\2\232-62-11690) | PLATE | (1501-1501) | ||
| 14 | ST9135-2 | SEAL,OUTER (K19) | 1501- | |
| (\2\232-62-11720) | SEAL,OUTER (K19) | (1501-1501) | ||
| 15 | ST9135-1 | SEAL,INNER (K19) | 1501- | |
| (\2\232-62-11710) | SEAL,INNER (K19) | (1501-1501) | ||
| 16 | ST14236 | PLUG | 1501- | |
| (\2\232-62-11760) | PLUG | (1501-1501) | ||
| 17 | ST15073 | O-RING (K19) | 1501- | |
| (\2\232-62-11820) | O-RING (K19) | (1501-1501) | ||
| 18 | 232-62-11730 | SPRING | 1501- | |
| 19 | 232-62-11740 | PIN | 1501- | |
| 20 | 232-62-11770 | BALL | 1501- | |
| 232-62-11780 | PLUG ASS'Y | 1501- | ||
| 21 | 232-62-11840 | PLUG | 1501- | |
| 22 | ST250003-903 | O-RING (K19) | 1501- | |
| (\2\232-62-11830) | O-RING (K19) | (1501-1501) | ||
| 23 | ST9022-6 | O-RING (K18¤K19) | 1501- | |
| (\2\232-62-11530) | O-RING (K18¤K19) | (1501-1501) | ||
| 24 | ST9022-2 | O-RING (K19) | 1501- | |
| (\2\232-62-11670) | O-RING (K19) | (1501-1501) | ||
| 25 | ST9022-12 | O-RING (K19) | 1501- | |
| (\2\232-62-11640) | O-RING (K19) | (1501-1501) | ||
| 26 | 23B-62-11430 | BOLT | 1501- | |
| 27 | 232-62-11510 | SEAL,DUST | 1501- |
