| Item | Part No. | Part Name | Qty | Serial No. |
| (273-61-24100) | MOTOR ASS'Y | 30003- | ||

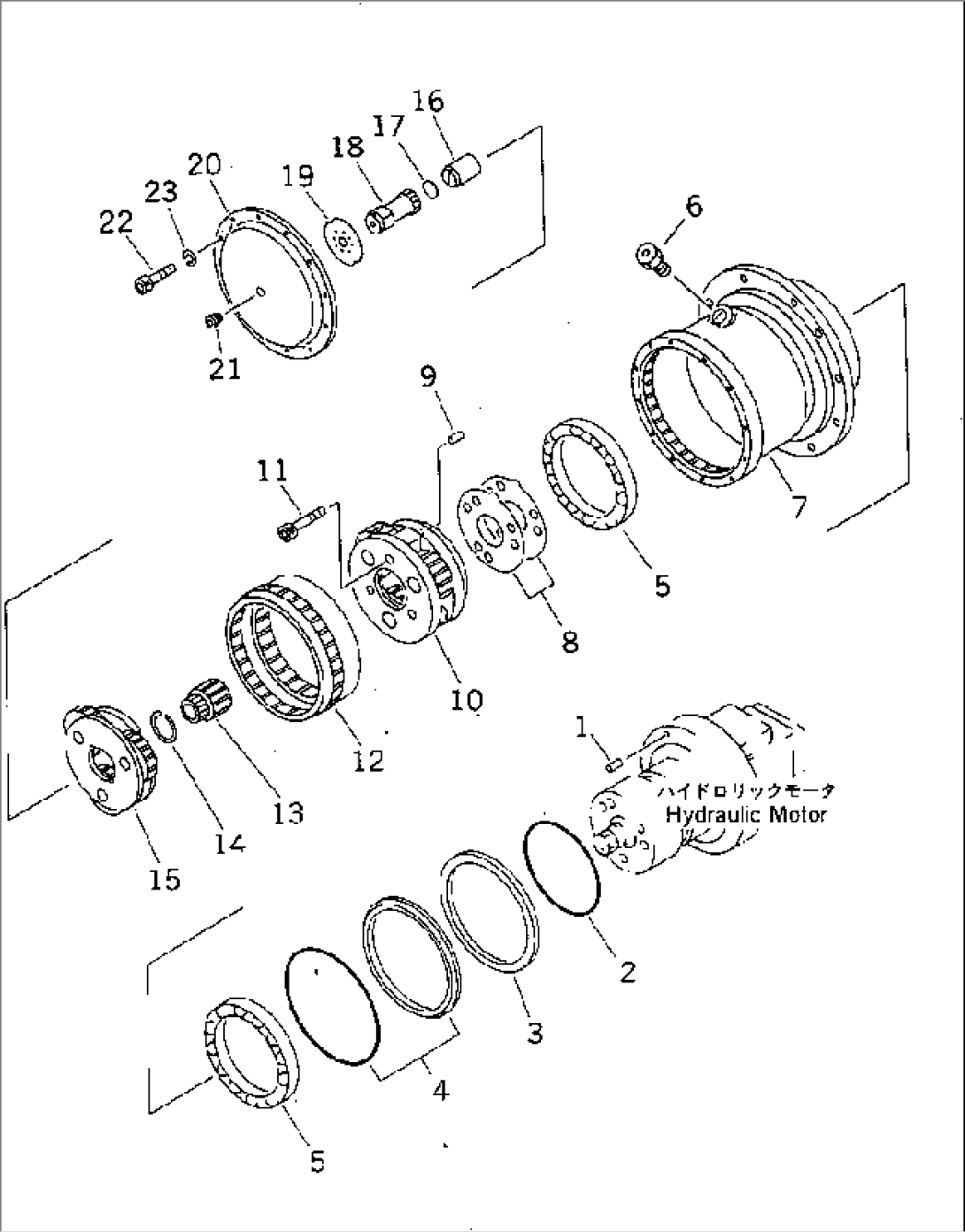

| THIS ASSEMBLY CONSISTS OF ALL PARTS SHOWN IN FIGS.6141 AND 6143. | ||||
| 1 | 273-61-24270 | PIN,DOWEL | 30003- | |
| 2 | 273-61-24280 | O-RING | 30003- | |
| 3 | 273-61-24290 | PLATE,SEAL | 30003- | |
| 4 | 273-61-24310 | SEAL,FLOATING | 30003- | |
| 5 | 06000-32934 | BEARING | 30003- | |
| 6 | \3\273-61-24320 | PLUG,(FOR SHIPPING) | 30003- | |
| (07042-70211{273-61-24130¤} | ||||
| 237-40-13160) | ||||
| 7 | \6\ | HOUSING | 30003- | |
| 8 | \6\ | SHIM | 30003- | |
| 9 | \6\ | PIN | 30003- | |
| 10 | \6\ | HOLDER ASS'Y | 30003- | |
| 11 | 01252-32075 | BOLT | 30003- | |
| 12 | \6\ | GEAR,RING | 30003- | |
| 13 | \6\ | GEAR,SUN | 30003- | |
| 14 | \6\ | RING,RETAINER | 30003- | |
| 15 | \6\ | HOLDER ASS'Y | 30003- | |
| 16 | \6\ | COUPLING | 30003- | |
| 17 | \6\ | RING,RETAINER | 30003- | |
| 18 | \6\ | GEAR,SUN | 30003- | |
| 19 | \6\ | PLATE,THRUST | 30003- | |
| 20 | \6\ | COVER | 30003- | |
| 21 | 07043-70108 | PLUG | 30003- | |
| 22 | 01010-50825 | BOLT | 30003- | |
| 23 | 01602-20825 | WASHER,SPRING | 30003- |
