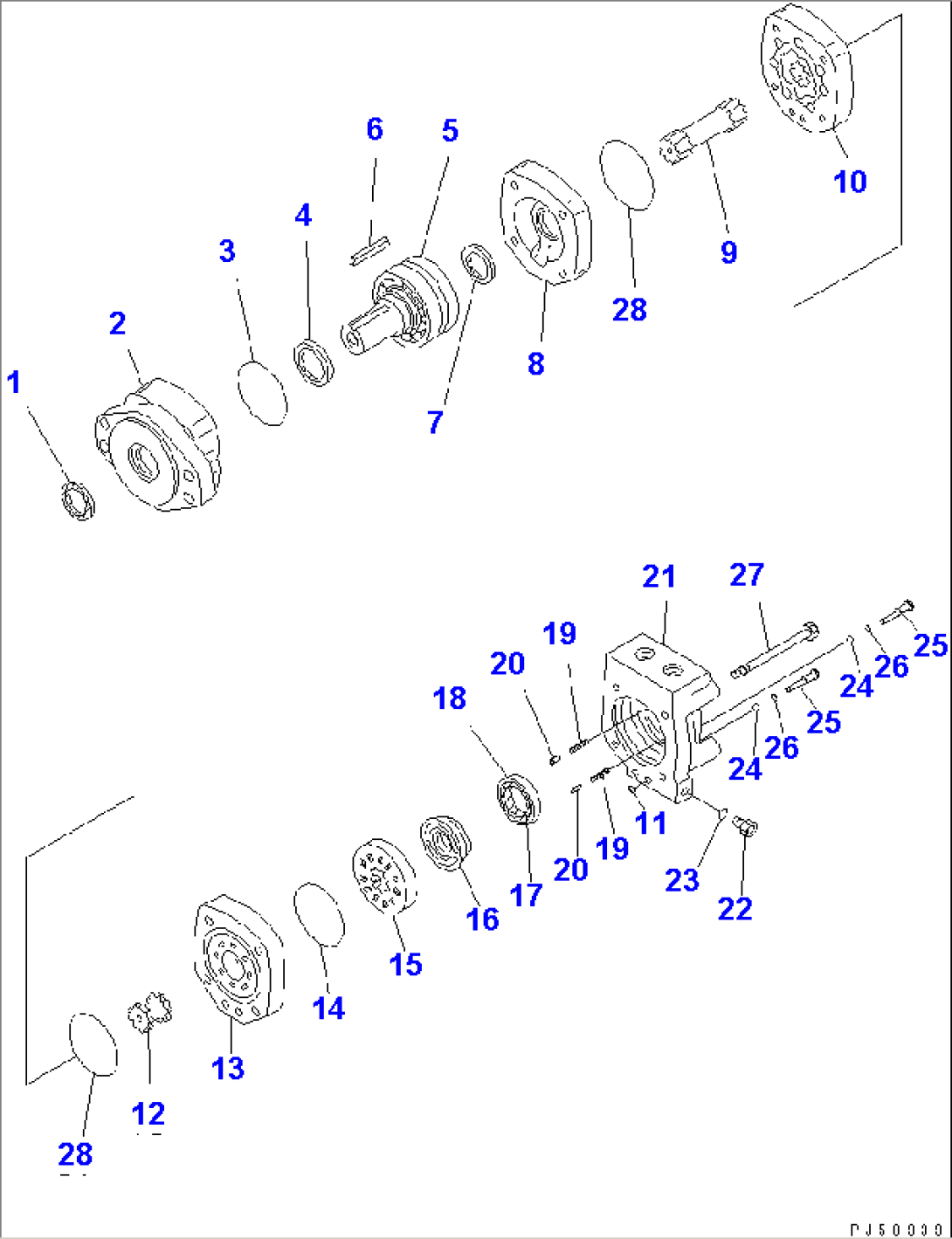

| Item | Part No. | Part Name | Qty | Serial No. |
| 23A-62-11300 | MOTOR ASS'Y | 5001- | ||
| 1 | \6\ | SEAL,DUST (KIT A) | 5001- | |
| 2 | 23A-62-11320 | HOUSING | 5001- | |
| 3 | \6\ | O-RING (KIT A) | 5001- | |
| 4 | \6\ | SEAL,OIL (KIT A) | 5001- | |
| 5 | 23A-62-11120 | SHAFT | 5001- | |
| 6 | 23A-62-11130 | KEY | 5001- | |
| 7 | \6\ | SEAL (KIT A) | 5001- | |
| 8 | 232-62-11580 | PLATE | 5001- | |
| 9 | 23A-62-11340 | SHAFT,DRIVE | 5001- | |
| 10 | 23A-62-11330 | GEROLER | 5001- | |
| 11 | \6\ | O-RING (KIT B) | 5001- | |
| 12 | 232-62-11650 | DRIVE | 5001- | |
| 13 | 232-62-11660 | PLATE | 5001- | |
| 14 | \6\ | O-RING (KIT B) | 5001- | |
| 15 | 232-62-11680 | VALVE | 5001- | |
| 16 | 232-62-11690 | PLATE | 5001- | |
| 17 | \6\ | SEAL (KIT B) | 5001- | |
| 18 | \6\ | SEAL (KIT B) | 5001- | |
| 19 | 232-62-11730 | SPRING | 5001- | |
| 20 | 232-62-11740 | PIN | 5001- | |
| 21 | 23A-62-11310 | HOUSING | 5001- | |
| 232-62-11880 | PLUG ASS'Y | 5001- | ||
| 22 | 232-62-11760 | PLUG | 5001- | |
| 23 | \6\ | O-RING (KIT B) | 5001- | |
| 24 | 232-62-11770 | BALL | 5001- | |
| 232-62-11780 | PLUG ASS'Y | 5001- | ||
| 25 | 232-62-11840 | PLUG | 5001- | |
| 26 | \6\ | O-RING (KIT B) | 5001- | |
| 27 | 238-62-11130 | BOLT | 5001- | |
| 28 | \6\ | O-RING (KIT B) | 5001- | |
| SERVICE KIT | ||||
| KIT A | 232-62-05110 | SERVICE KIT | 5001- | |
| KIT B | 232-62-05120 | SERVICE KIT | 5001- |
