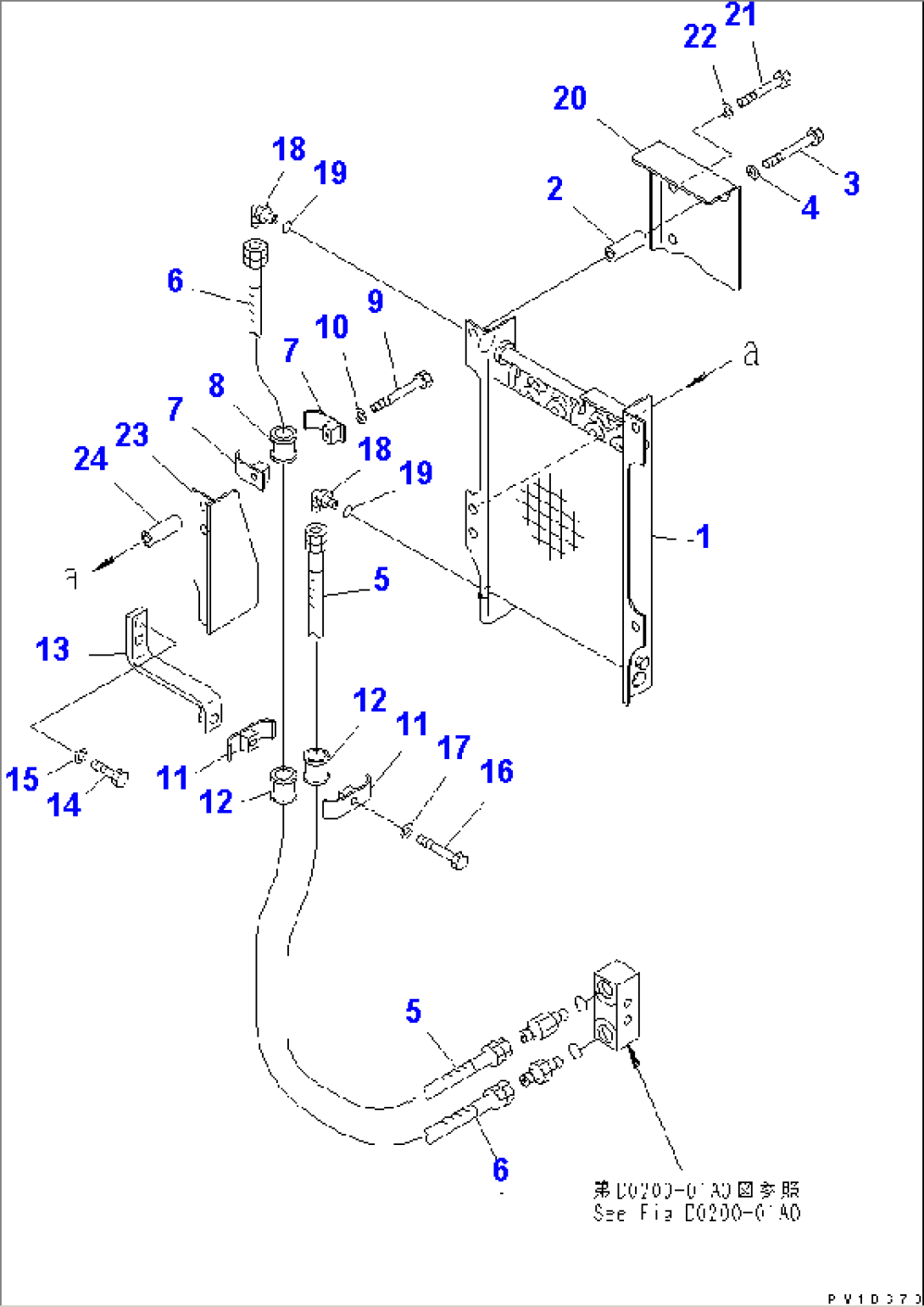

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-03-61311 | OIL COOLER ASS'Y | 18001- | |
| 2 | 175-61-17240 | COLLAR | 18001- | |
| 3 | 01010-81285 | BOLT | 18001- | |
| 4 | 01643-31232 | WASHER | 18001- | |
| 5 | 07621-00513 | HOSE | 18001- | |
| 6 | 07621-005A9 | HOSE | 18001- | |
| 7 | 07094-10417 | CLAMP | 18001- | |
| 8 | 07095-00423 | CUSHION | 18001- | |
| 9 | 01011-81230 | BOLT | 18001- | |
| 10 | 01643-31232 | WASHER | 18001- | |
| 11 | 07094-30417 | CLAMP | 18001- | |
| 12 | 07095-00423 | CUSHION | 18001- | |
| 13 | 195-61-61120 | BRACKET | 18001- | |
| 14 | 01010-81225 | BOLT | 18001- | |
| 15 | 01643-31232 | WASHER | 18001- | |
| 16 | 01010-81265 | BOLT | 18001- | |
| 17 | 01643-31232 | WASHER | 18001- | |
| 18 | 07235-10516 | ELBOW | 18001- | |
| 19 | 07002-02034 | O-RING | 18001- | |
| 20 | 195-03-61321 | COVER | 18001- | |
| 21 | 01010-81225 | BOLT | 18001- | |
| 22 | 01643-31232 | WASHER | 18001- | |
| 23 | 195-03-61331 | COVER | 18001- | |
| 24 | 175-61-17240 | COLLAR | 18001- |
