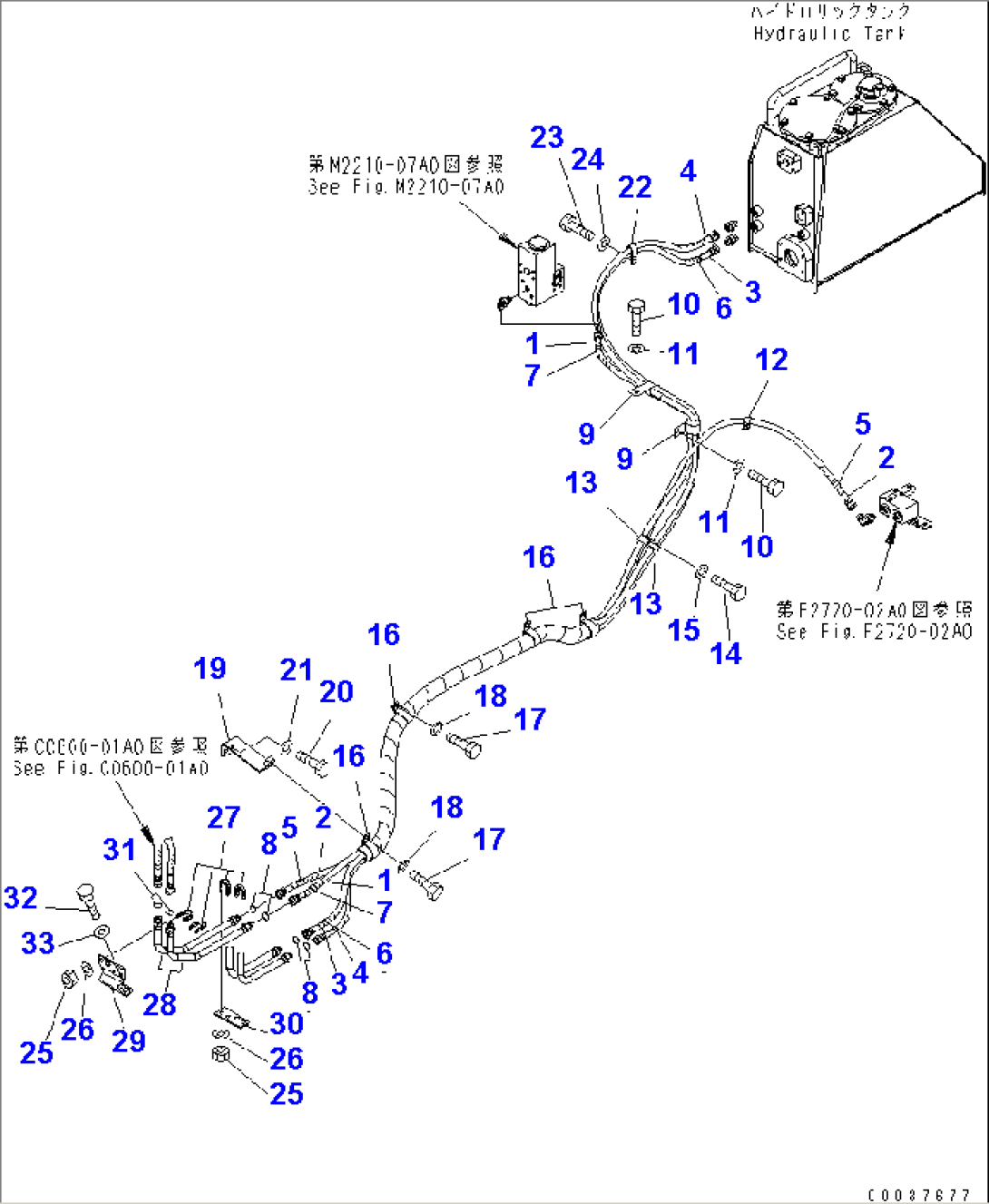

| Item | Part No. | Part Name | Qty | Serial No. |
| 154-03-72511 | HOSE ASS'Y | 10001-10579 | ||
| 1 | 02762-00435 | HOSE,BLACK | 10001-10579 | |
| 2 | 02762-00435 | HOSE,YELLOW | 10001-10579 | |
| 3 | 02762-00444 | HOSE,BLUE | 10001-@ | |
| 4 | 02762-00444 | HOSE | 10001-@ | |
| 5 | 20Y-62-22810 | BAND, YELLOW | 10001-@ | |
| 6 | 20Y-62-22820 | BAND, BLUE | 10001-@ | |
| 7 | 20Y-62-22840 | BAND, BLACK | 10001-@ | |
| 8 | 02896-11012 | O-RING | 10001-10579 | |
| 9 | 20Y-62-15951 | CLIP | 10001-@ | |
| 10 | 01010-81230 | BOLT | 10001-@ | |
| 11 | 01643-31232 | WASHER | 10001-@ | |
| 12 | 04434-51912 | CLIP | 10001-10579 | |
| 13 | 04435-51912 | CLIP | 10001-10579 | |
| 14 | 01010-81230 | BOLT | 10001-@ | |
| 15 | 01643-31232 | WASHER | 10001-@ | |
| 16 | 20Y-62-15950 | CLIP | 10001-10579 | |
| 17 | 01010-81230 | BOLT | 10001-@ | |
| 18 | 01643-31232 | WASHER | 10001-@ | |
| 19 | 154-03-71990 | BRACKET | 10001-@ | |
| 20 | 01010-81230 | BOLT | 10001-@ | |
| 21 | 01643-31232 | WASHER | 10001-@ | |
| 22 | 04435-51912 | CLIP | 10001-@ | |
| 23 | 01010-81230 | BOLT | 10001-@ | |
| 24 | 01643-31232 | WASHER | 10001-@ | |
| 154-49-71711 | TUBE ASS'Y | 10001-10579 | ||
| 25 | 01597-01009 | NUT | 10001-@ | |
| 26 | 01643-31032 | WASHER | 10001-@ | |
| 27 | 07283-32236 | CLIP | 10001-10579 | |
| 28 | 154-49-71730 | TUBE | 10001-10579 | |
| 29 | 154-49-71741 | BRACKET | 10001-10579 | |
| 30 | 154-49-71750 | PLATE | 10001-10579 | |
| 31 | 02896-11012 | O-RING | 10001-10579 | |
| 32 | 01010-81240 | BOLT | 10001-@ | |
| 33 | 01643-31232 | WASHER | 10001-@ |
