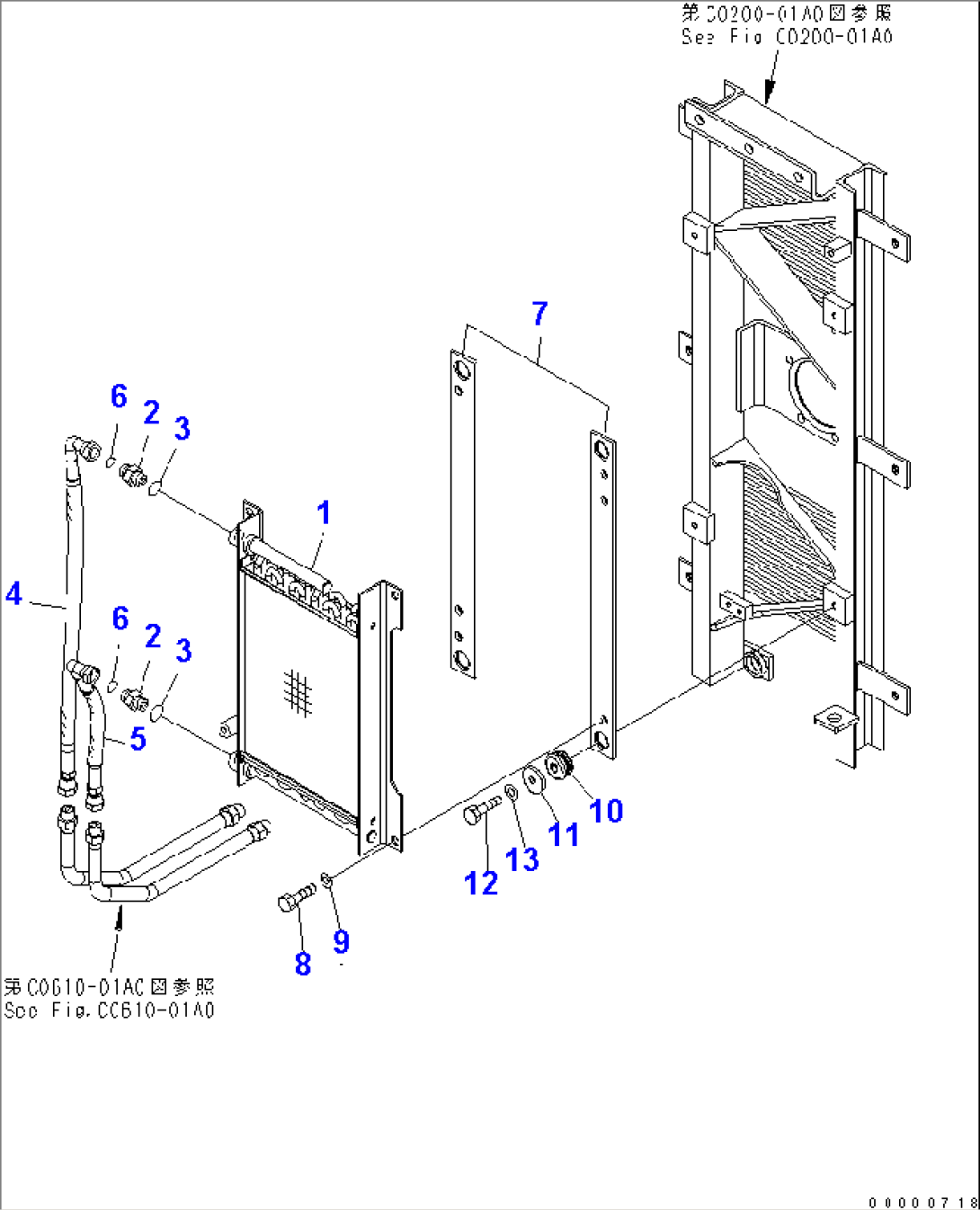

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 195-03-22781 | OIL COOLER ASS'Y | 10001-10579 | |
| 2 | 02781-00422 | UNION | 10001-10579 | |
| 3 | 07002-12034 | O-RING | 10001-10579 | |
| 4 | 02763-00407 | HOSE | 10001-10579 | |
| 5 | 02763-00403 | HOSE | 10001-10579 | |
| 6 | 02896-11012 | O-RING | 10001-10579 | |
| 7 | 154-03-71330 | BRACKET | 10001-10579 | |
| 8 | 01010-81230 | BOLT | 10001-10579 | |
| 9 | 01643-31232 | WASHER | 10001-10579 | |
| 10 | 195-03-41380 | CUSHION | 10001-10579 | |
| 11 | 178-60-12250 | COLLAR | 10001-10579 | |
| 12 | 01010-81045 | BOLT | 10001-10579 | |
| 13 | 01643-31032 | WASHER | 10001-10579 |
