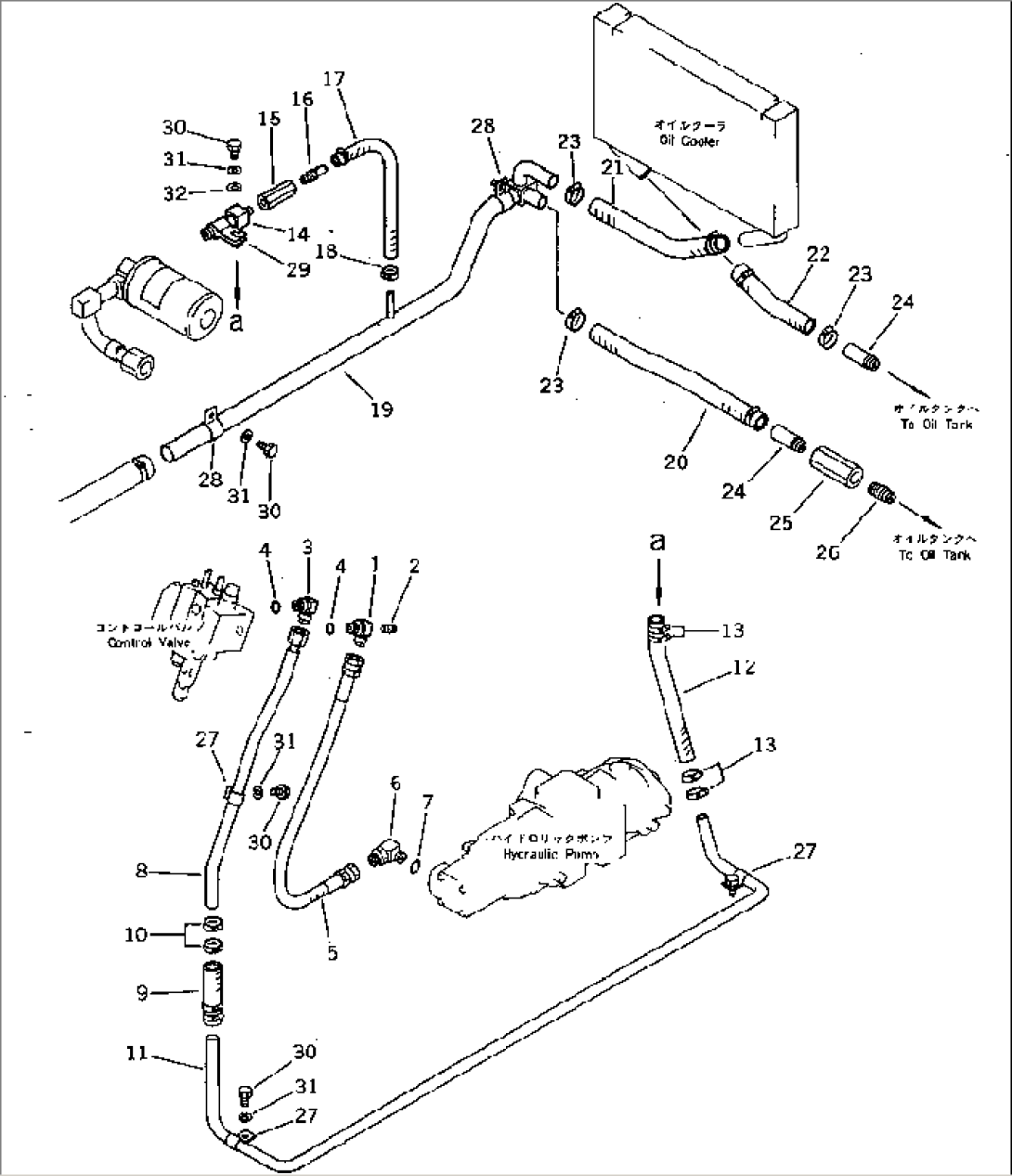

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | FF7814-62140 | ELBOW | 3001- | |
| 2 | 07042-20108 | PLUG | 3001- | |
| 3 | FF8733-62320 | ELBOW | 3001- | |
| 4 | 07000-12018 | O-RING | 3001- | |
| 5 | FF7814-62130 | HOSE | 3001- | |
| 6 | WB8711-51110 | ELBOW | 3001- | |
| 7 | FF8702-26520 | O-RING | 3001- | |
| 8 | FF7814-62150 | TUBE | 3001- | |
| 9 | FF7814-62720 | HOSE | 3460- | |
| \0\07260-22022 | HOSE | 3001-3459 | ||
| (\2\07260-22013) | HOSE | (3001-3316) | ||
| 10 | 07281-00359 | CLAMP | 3001- | |
| 11 | FF7814-62161 | TUBE | 3317- | |
| FF7814-62160 | TUBE | 3001-3316 | ||
| 12 | FF7814-62730 | HOSE | 3460- | |
| \0\07260-22028 | HOSE | 3001-3459 | ||
| 13 | 07281-00359 | CLAMP | 3001- | |
| 14 | FF7814-62170 | ELBOW | 3001- | |
| 15 | FF7810-63300 | CHECK VALVE ASS'Y | 3001- | |
| 16 | FF7814-62180 | NIPPLE | 3001- | |
| 17 | 07260-21440 | HOSE | 3001- | |
| 18 | 07281-00259 | CLAMP | 3001- | |
| 19 | FF7814-62280 | TUBE | 3001- | |
| 20 | 07260-22636 | HOSE | 3001- | |
| 21 | 07260-22640 | HOSE | 3001- | |
| 22 | 07260-22645 | HOSE | 3001- | |
| 23 | 07281-00419 | CLAMP | 3001- | |
| 24 | FF0733-10608 | PIPE | 3001- | |
| 25 | FF7810-63400 | CHECK VALVE ASS'Y | 3001- | |
| 26 | FF0720-10600 | NIPPLE | 3001- | |
| 27 | 101-854-8445 | CLAMP | 3001- | |
| 28 | FF7810-62140 | CLAMP | 3001- | |
| 29 | FF7810-62230 | CLAMP | 3001- | |
| 30 | 01010-51025 | BOLT | 3001- | |
| 31 | 01602-21030 | WASHER | 3001- | |
| 32 | 01642-21016 | WASHER | 3001- |
