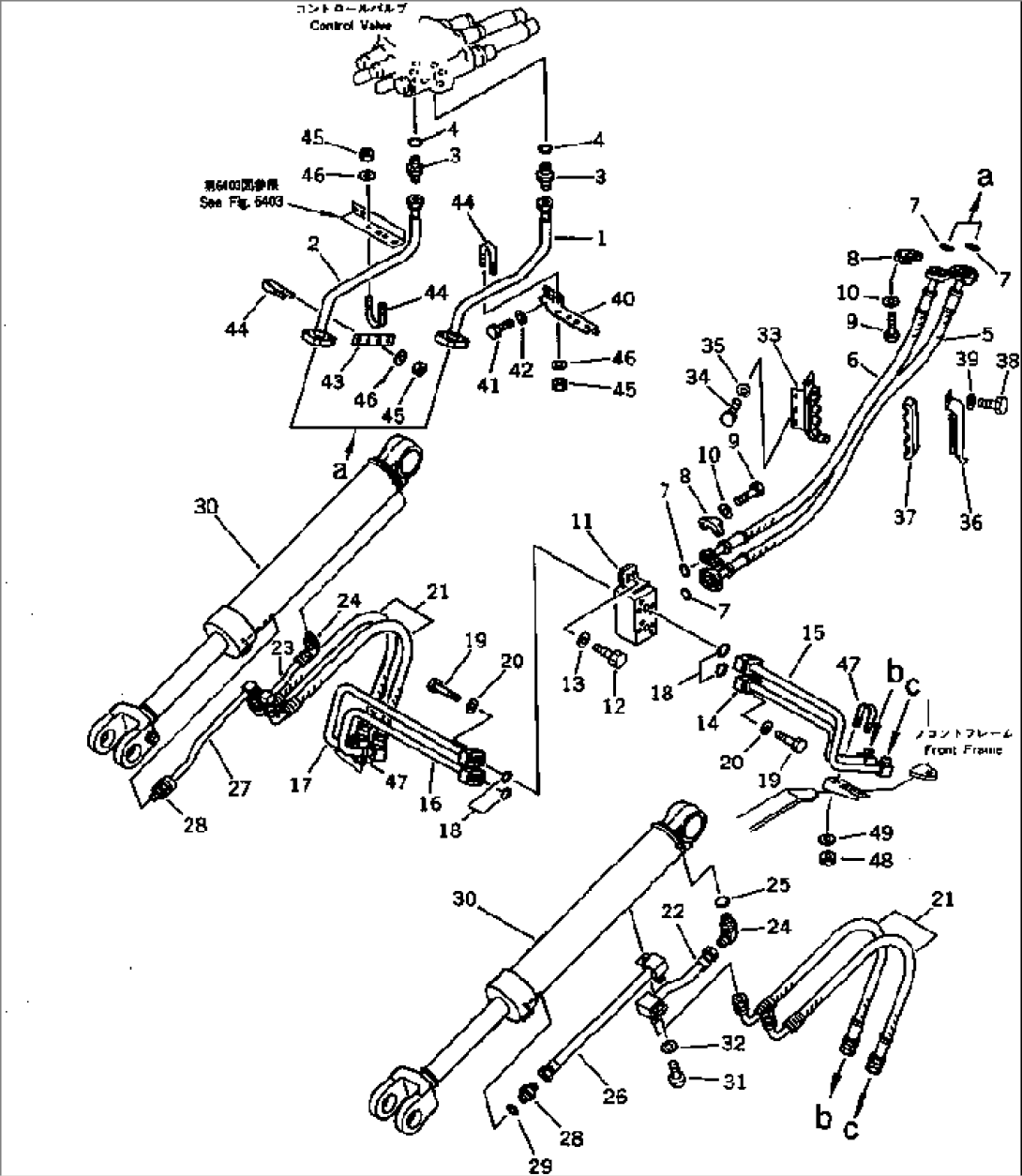

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-62-13171 | TUBE | 10001- | |
| 2 | 418-62-13151 | TUBE | 10001- | |
| 3 | 418-62-13550 | UNION | 10001- | |
| 4 | 07002-12434 | O-RING | 10001- | |
| 5 | 07125-01016 | HOSE | 10001- | |
| 6 | 07125-01015 | HOSE | 10001- | |
| 7 | 07000-13032 | O-RING | 10001- | |
| 8 | 07371-31049 | FLANGE,SPLIT | 10001- | |
| 9 | 07372-01035 | BOLT | 10001- | |
| 10 | 01643-51032 | WASHER | 10001- | |
| 11 | 418-62-13711 | BLOCK | 20001- | |
| 12 | 01435-01230 | BOLT | 30001- | |
| \0\01010-51230 | BOLT | 20001-29999 | ||
| 13 | 01643-31232 | WASHER | 20001-29999 | |
| 14 | 418-62-13323 | TUBE | 10001- | |
| 15 | 418-62-13313 | TUBE | 10001- | |
| 16 | 418-62-13491 | TUBE | 10001- | |
| 17 | 418-62-13293 | TUBE | 10001- | |
| 18 | 07000-13030 | O-RING | 10001- | |
| 19 | 01435-00840 | BOLT | 30001- | |
| \0\01010-50845 | BOLT | 10001-29999 | ||
| 20 | 01643-30823 | WASHER | 10001-29999 | |
| 21 | 418-62-13330 | HOSE | 10001- | |
| 22 | 418-62-13341 | TUBE | 10001- | |
| 23 | 418-62-13431 | TUBE | 10001- | |
| 24 | 07235-10628 | ELBOW | 20001- | |
| 25 | 07002-12434 | O-RING | 10001- | |
| 26 | 418-62-13450 | TUBE | 30001- | |
| 418-62-13351 | TUBE | 10001-29999 | ||
| 27 | 418-62-13420 | TUBE | 30001- | |
| 418-62-13441 | TUBE | 10001-29999 | ||
| 28 | 07230-10628 | UNION | 20001-29999 | |
| 29 | 07002-12434 | O-RING | 10001-29999 | |
| 30 | (707-00-01050) | CYLINDER ASS'Y,LIFT | 30001- | |
| (707-00-12011) | CYLINDER ASS'Y,LIFT | 10001-29999 | ||
| 31 | 01435-01225 | BOLT | 30001- | |
| \0\01010-51225 | BOLT | 10001-29999 | ||
| 32 | 01643-31232 | WASHER | 10001-29999 | |
| 33 | 419-62-13741 | BRACKET | 20001- | |
| 34 | 01435-01230 | BOLT | 30001- | |
| \0\01010-51230 | BOLT | 10001-29999 | ||
| 35 | 01643-31232 | WASHER | 10001-29999 | |
| 36 | 419-62-13751 | BRACKET | 20001- | |
| 37 | 419-62-13760 | RUBBER | 20001- | |
| 38 | 01435-01230 | BOLT | 30001- | |
| \0\01010-51230 | BOLT | 20001-29999 | ||
| 39 | 01643-31232 | WASHER | 20001-29999 | |
| 40 | 418-62-13570 | BRACKET | 10001- | |
| 41 | 01435-01225 | BOLT | 30001- | |
| \0\01010-51225 | BOLT | 10001-29999 | ||
| 01643-31232 | WASHER | 10001-29999 | ||
| 43 | 418-62-13580 | PLATE | 10001- | |
| 44 | 07283-33442 | CLIP | 10001- | |
| 45 | 01599-01011 | NUT | 10001- | |
| 46 | 01643-31032 | WASHER | 10001- | |
| 47 | 07283-22738 | CLIP | 10001- | |
| 48 | 01599-01011 | NUT | 10001- | |
| 49 | 01643-31032 | WASHER | 10001- |
