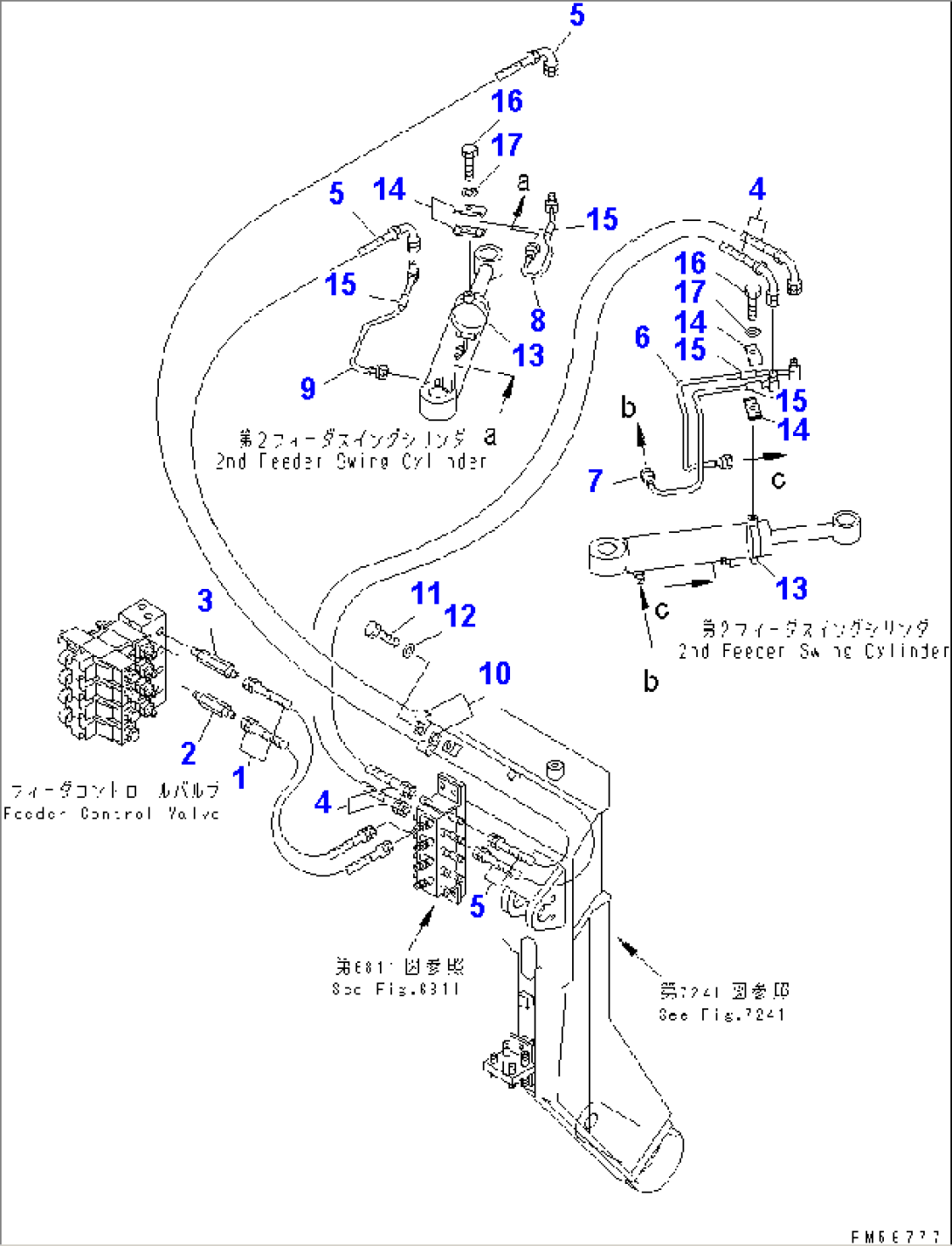

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 262-97-73520 | HOSE | 12001- | |
| 2 | 262-60-74360 | NIPPLE | 12001- | |
| 3 | 262-60-74370 | NIPPLE | 12001- | |
| 4 | 262-97-73540 | HOSE | 12001- | |
| 5 | 262-97-73530 | HOSE | 12001- | |
| 6 | 262-97-73250 | TUBE | 12001- | |
| 7 | 262-97-73240 | TUBE | 12001- | |
| 8 | 262-97-73270 | TUBE | 12001- | |
| 9 | 262-97-73260 | TUBE | 12001- | |
| 10 | 04434-51410 | CLIP | 12001- | |
| 11 | 01010-51016 | BOLT | 12001- | |
| 12 | 01643-31032 | WASHER | 12001- | |
| 13 | 262-97-73230 | CLAMP | 12001- | |
| 14 | 262-60-74330 | CLAMP | 12001- | |
| 15 | 262-60-74250 | CUSHION | 12001- | |
| 16 | 01010-51040 | BOLT | 12001- | |
| 17 | 01643-31032 | WASHER | 12001- |
