| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-61-64831 | BRACKET | 1001- | |
| 2 | 01010-81025 | BOLT | 1001- | |
| 3 | 01643-31032 | WASHER | 1001- | |
| 4 | 569-61-63710 | OIL COOLER ASS'Y | 1001- | |
| 5 | 01010-81020 | BOLT | 1001- | |
| 6 | 01643-31032 | WASHER | 1001- |
- Главная
- Каталог запчастей
- Самосвалы
- Hd605 5 s/n 1001 up
- Work equipment control system
- Hydraulic piping (6/7) (oil cooler line) (1/2)
Поиск по каталогу

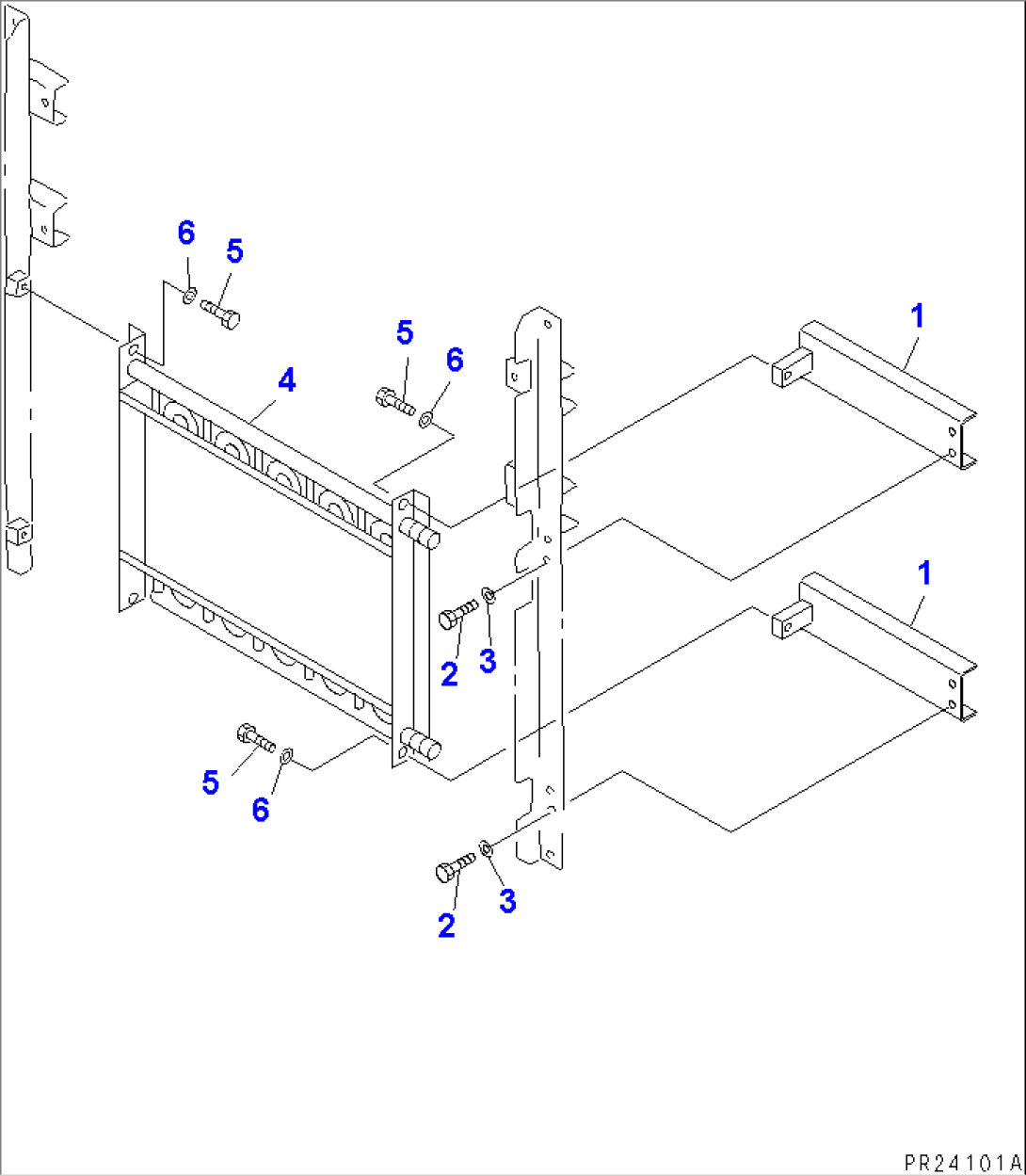

HYDRAULIC PIPING (6/7) (OIL COOLER LINE) (1/2)
