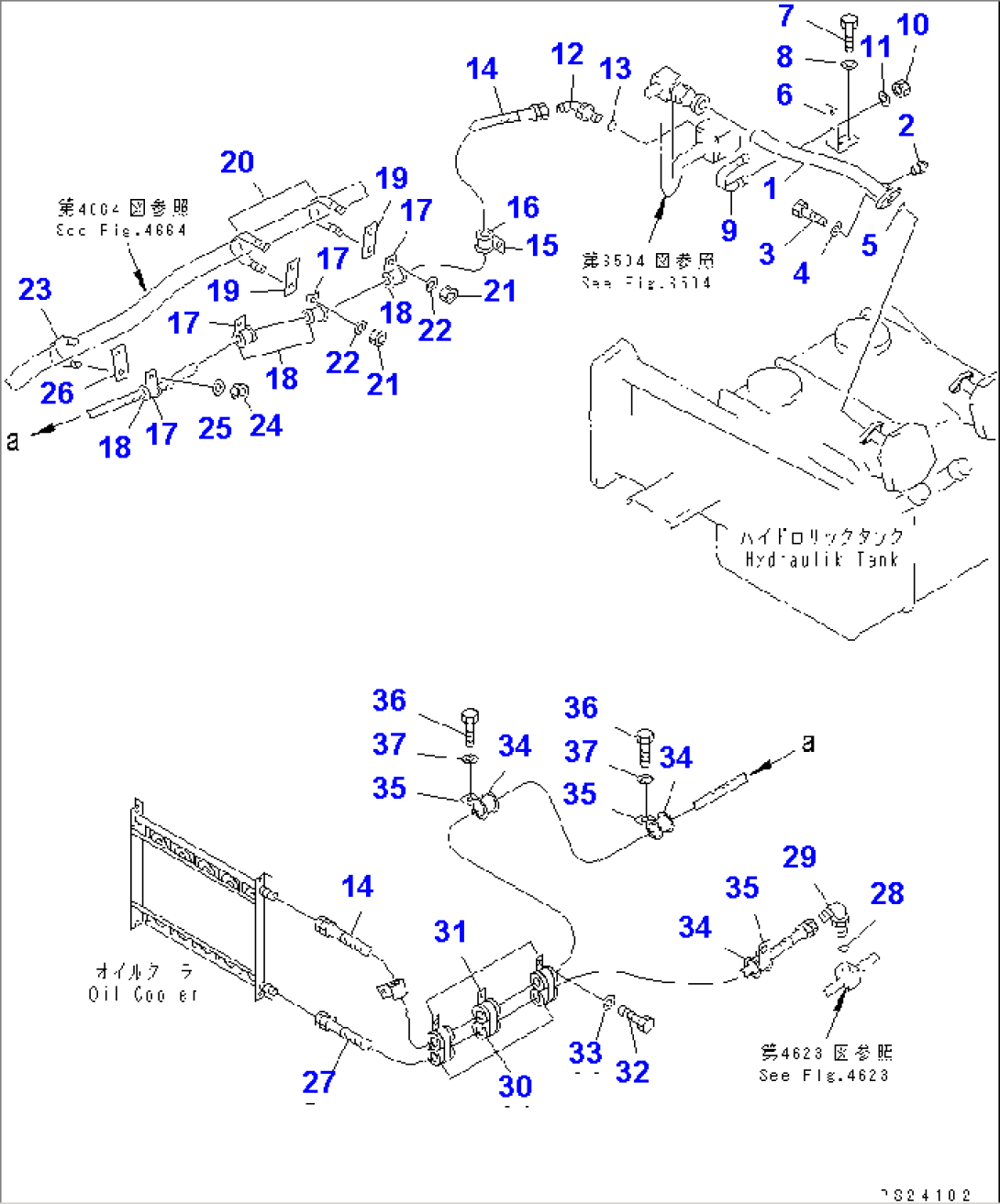

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 569-61-63422 | TUBE | 1001- | |
| 2 | 07042-20211 | PLUG | 1001- | |
| 3 | 01010-81240 | BOLT | 1001- | |
| 4 | 01643-31232 | WASHER | 1001- | |
| 5 | 07000-23045 | O-RING | 1001- | |
| 6 | 569-61-63551 | BRACKET | 1001- | |
| 7 | 01010-81230 | BOLT | 1001- | |
| 8 | 01643-31232 | WASHER | 1001- | |
| 9 | 07283-24949 | CLIP | 1001- | |
| 10 | 01599-01011 | NUT | 1001- | |
| 11 | 01643-31032 | WASHER | 1001- | |
| 12 | 07236-50628 | ELBOW | 1001- | |
| 13 | 07002-02434 | O-RING | 1001- | |
| 14 | 07102-20657 | HOSE | 1001- | |
| 15 | 281-01-13180 | CLIP | 1001- | |
| 16 | 561-43-41620 | INSULATOR | 1001- | |
| 17 | 281-01-13180 | CLIP | 1001- | |
| 18 | 561-43-41620 | INSULATOR | 1001- | |
| 19 | 569-54-41380 | PLATE | 1001- | |
| 20 | 07283-26155 | CLIP | 1001- | |
| 21 | 01599-01011 | NUT | 1001- | |
| 22 | 01643-31032 | WASHER | 1001- | |
| 23 | 07283-26155 | CLIP | 1001- | |
| 24 | 01599-01011 | NUT | 1001- | |
| 25 | 01643-31032 | WASHER | 1001- | |
| 26 | 569-54-41380 | PLATE | 1001- | |
| 27 | 07102-20615 | HOSE | 1001- | |
| 28 | 07002-32434 | O-RING | 1001- | |
| 29 | 07235-10628 | ELBOW | 1001- | |
| 30 | 566-06-41290 | INSULATOR | 1001- | |
| 31 | 582-35-11170 | CLIP | 1001- | |
| 32 | 01010-81020 | BOLT | 1001- | |
| 33 | 01643-31032 | WASHER | 1001- | |
| 34 | 561-43-41620 | INSULATOR | 1001- | |
| 35 | 281-01-13180 | CLIP | 1001- | |
| 36 | 01010-81020 | BOLT | 1001- | |
| 37 | 01643-31032 | WASHER | 1001- |
