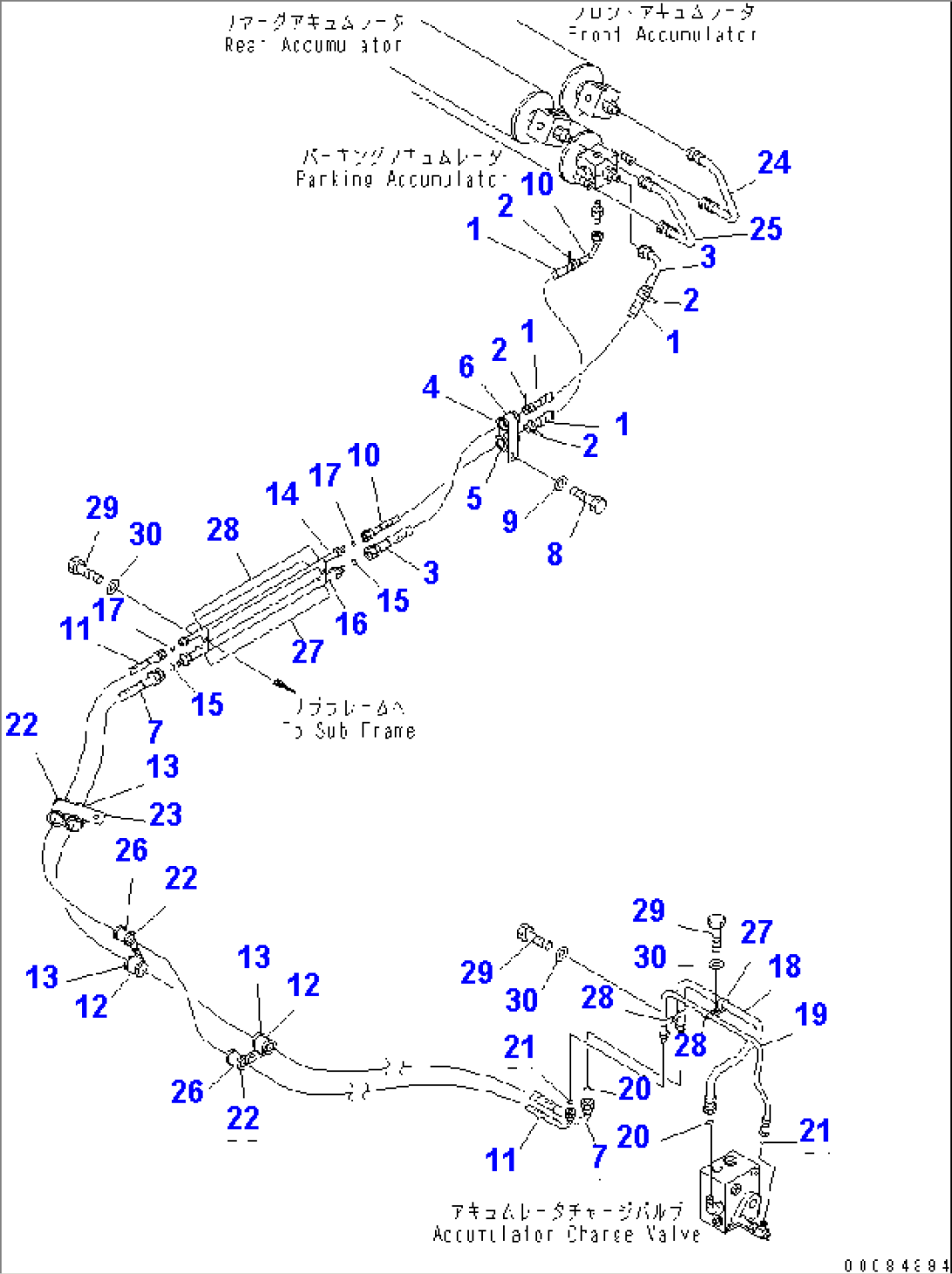

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 363-04-33110 | PROTECTOR | 2462-@ | |
| 2 | 08034-20519 | BAND | 2462-@ | |
| 3 | 02766-00308 | HOSE | 2463-@ | |
| 3 | 02766-003A7 | HOSE | 2462-2462 | |
| 4 | 581-35-23540 | INSULATOR | 2462-@ | |
| 5 | 07095-00316 | CUSHION | 2462-@ | |
| 6 | 582-35-11170 | CLIP | 2462-@ | |
| 7 | 02765-00317 | HOSE | 2462-2481 | |
| 8 | 01010-81020 | BOLT | 2462-@ | |
| 9 | 01643-31032 | WASHER | 2462-@ | |
| 10 | 02766-002A7 | HOSE | 2462-@ | |
| 11 | 02765-00217 | HOSE | 2462-2481 | |
| 12 | 08036-03014 | CLIP | 2462-@ | |
| 13 | 07095-00316 | CUSHION | 2462-@ | |
| 14 | 56B-43-27950 | TUBE | 2462-2481 | |
| 15 | 02896-21009 | O-RING | 2001-@ | |
| 16 | 56B-43-27960 | TUBE | 2462-2481 | |
| 17 | 02896-21008 | O-RING | 2001-@ | |
| 18 | 56B-43-17951 | TUBE | 2001-@ | |
| 19 | 56B-43-17962 | TUBE | 2001-@ | |
| 20 | 02896-21009 | O-RING | 2001-@ | |
| 21 | 02896-21008 | O-RING | 2001-@ | |
| 22 | 581-35-23540 | INSULATOR | 2462-@ | |
| 23 | 582-35-11170 | CLIP | 2001-@ | |
| 24 | 56B-43-17622 | TUBE | 2001-@ | |
| 25 | 56B-43-17632 | TUBE | 2001-@ | |
| 26 | 08036-02514 | CLIP | 2462-@ | |
| 27 | 04434-51510 | CLIP | 2001-2481 | |
| 28 | 04434-51010 | CLIP | 2001-2481 | |
| 29 | 01010-81020 | BOLT | 2462-2481 | |
| 30 | 01643-31032 | WASHER | 2462-2481 |
