| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 104-62-38150 | TUBE | 75001- | |
| 2 | 104-62-38161 | TUBE | 75001- | |
| 3 | 20S-62-33350 | CLAMP | 75001- | |
| 4 | 01010-50816 | BOLT | 75001- | |
| 5 | 01643-30823 | WASHER | 75001- |
- Главная
- Каталог запчастей
- Бульдозеры
- D21a 7 s/n 75001 78603
- Work equipment control system
- Hydraulic piping (angle cylinder line) (chassis side) (for single lever)
Поиск по каталогу

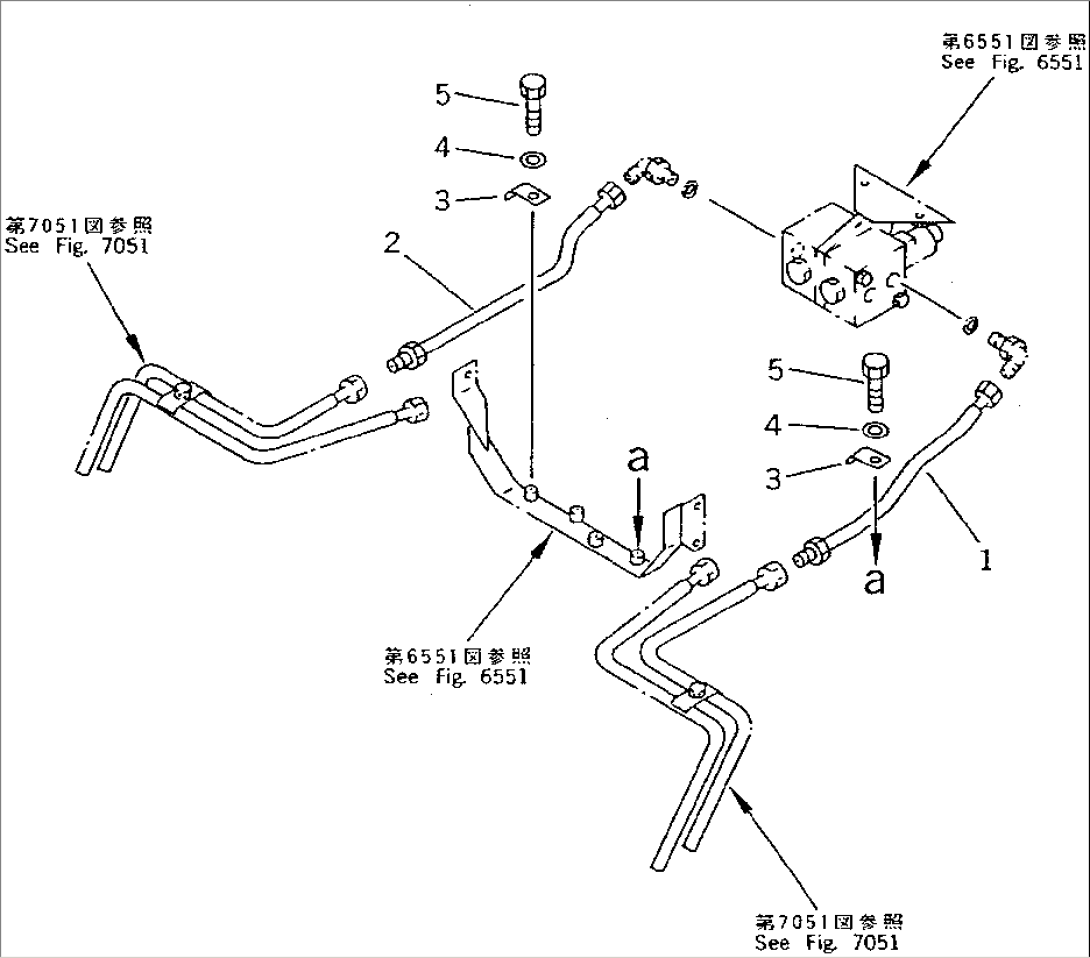

HYDRAULIC PIPING (ANGLE CYLINDER LINE) (CHASSIS SIDE) (FOR SINGLE LEVER)
