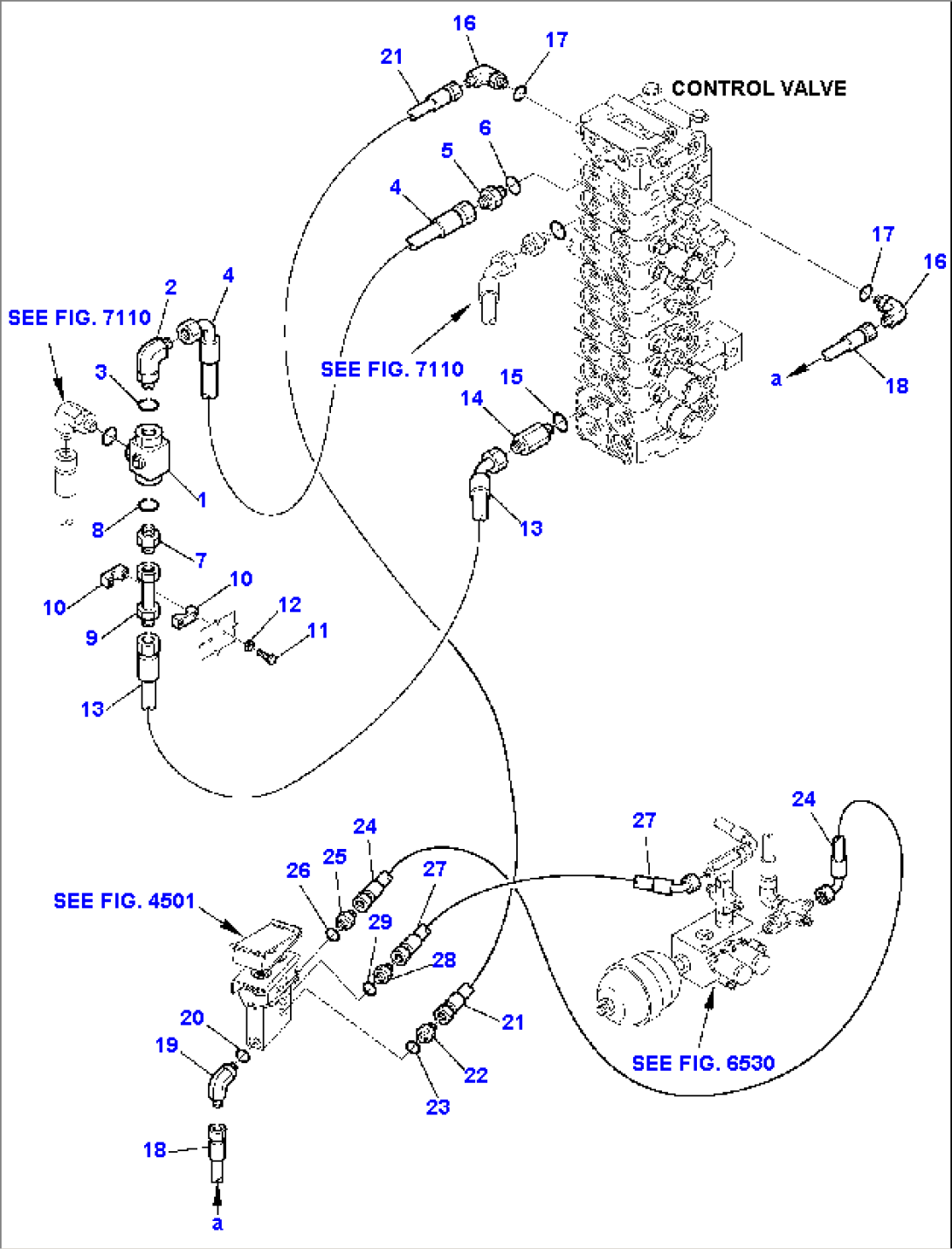

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 500361469 | COCK | F31031- | |
| 2 | 500352130 | ELBOW | F31031- | |
| 3 | 855051119 | O-RING | F31031- | |
| 4 | 392058150 | HOSE | F31031- | |
| 5 | 3F4565093 | UNION | F31031- | |
| 6 | 855051616 | O-RING | F31031- | |
| 7 | 500351720 | UNION | F31031- | |
| 8 | 855051119 | O-RING | F31031- | |
| 9 | 3F1076050 | PIPE | F31031- | |
| 10 | 393001028 | HOSE-CLAMP | F31031- | |
| 11 | 801015114 | BOLT | F31031- | |
| 12 | 802170002 | WASHER | F31031- | |
| 13 | 392022022 | HOSE | F31031- | |
| 14 | 3F1065060 | UNION | F31031- | |
| 15 | 855051616 | O-RING | F31031- | |
| 16 | 3F0565064 | ELBOW | F31031- | |
| 17 | 855051111 | O-RING | F31031- | |
| 18 | 392363039 | HOSE | F31031- | |
| 19 | 500325112 | ELBOW | F31031- | |
| 20 | 855051111 | O-RING | F31031- | |
| 21 | 392363036 | HOSE | F31031- | |
| 22 | 500351751 | UNION | F31031- | |
| 23 | 855051111 | O-RING | F31031- | |
| 24 | 392368110 | HOSE | F31031- | |
| 25 | 500351744 | UNION | F31031- | |
| 26 | 855051111 | O-RING | F31031- | |
| 27 | 392374011 | HOSE | F31031- | |
| 28 | 3F0577054 | UNION | F31031- | |
| 29 | 855051111 | O-RING | F31031- | |
| SEE FIG. 4501 | ||||
| SEE FIG. 6530 | ||||
| SEE FIG. 7110 |
