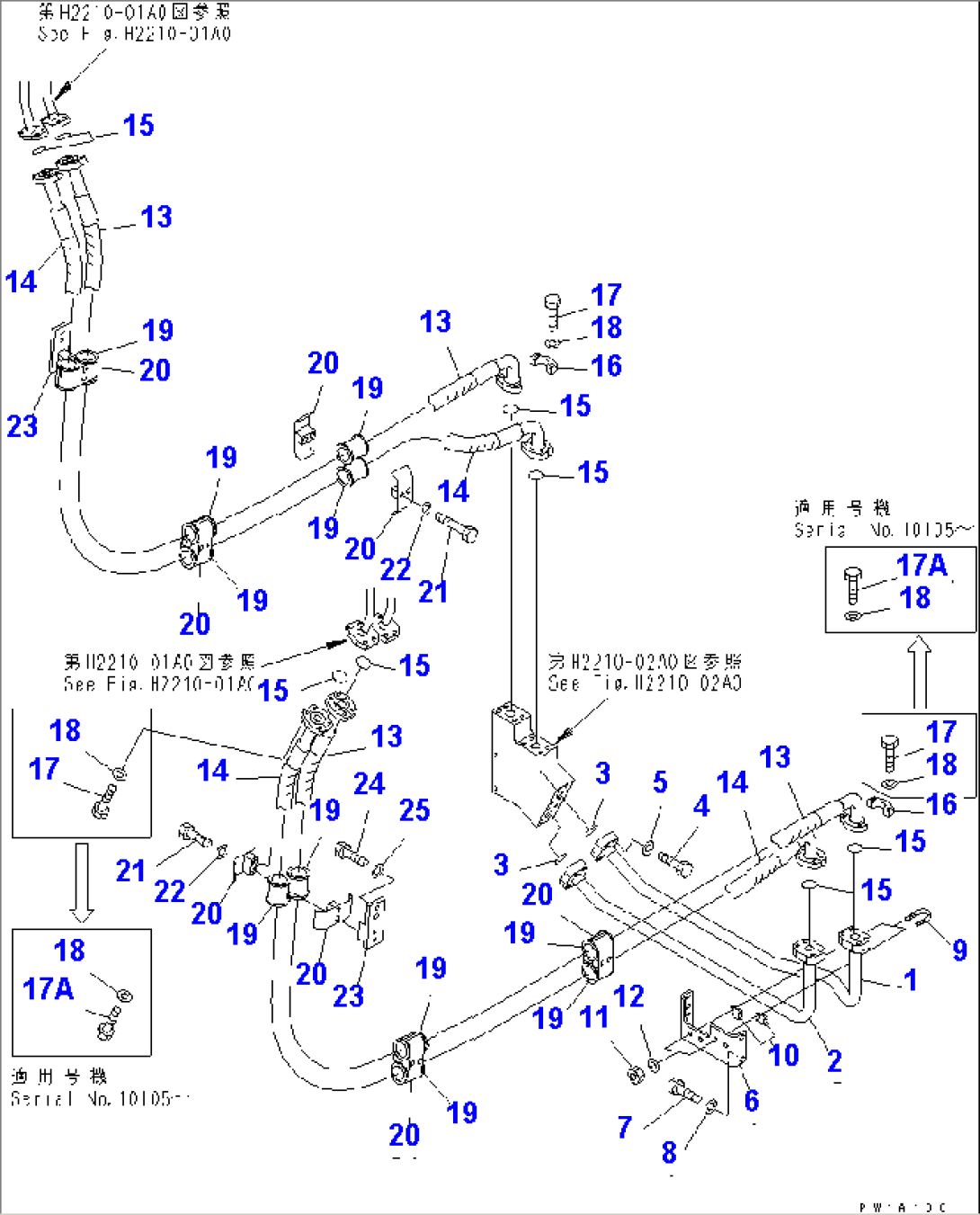

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 19M-61-31220 | TUBE | 10101- | |
| 2 | 19M-61-31230 | TUBE | 10101- | |
| 3 | 07000-F3038 | O-RING | 10101- | |
| 4 | 01010-81245 | BOLT | 10101- | |
| 5 | 01643-31232 | WASHER | 10101- | |
| 6 | 19M-61-31240 | BRACKET | 10101- | |
| 7 | 01010-81230 | BOLT | 10101- | |
| 8 | 01643-31232 | WASHER | 10101- | |
| 9 | 07283-33450 | CLIP | 10101- | |
| 10 | 07283-53444 | SEAT | 10101- | |
| 11 | 01597-01009 | NUT | 10101- | |
| 12 | 01643-31032 | WASHER | 10101- | |
| 13 | 07098-01232 | HOSE | 10101- | |
| 14 | 07098-01234 | HOSE | 10101- | |
| 15 | 07000-F3038 | O-RING | 10101- | |
| 16 | 07371-51260 | FLANGE | 10101- | |
| 17 | 01010-81245 | BOLT | 10105- | |
| 01010-81245 | BOLT | 10101-10104 | ||
| 17A | 01010-81250 | BOLT | 10105- | |
| 18 | 01643-31232 | WASHER | 10101- | |
| 19 | 07095-01245 | CUSHION | 10101- | |
| 20 | 07094-31228 | CLAMP | 10101- | |
| 21 | 01010-81285 | BOLT | 10101- | |
| 22 | 01643-31232 | WASHER | 10101- | |
| 23 | 19M-61-29250 | PLATE | 10101- | |
| 24 | 01010-81230 | BOLT | 10101- | |
| 25 | 01643-31232 | WASHER | 10101- |
