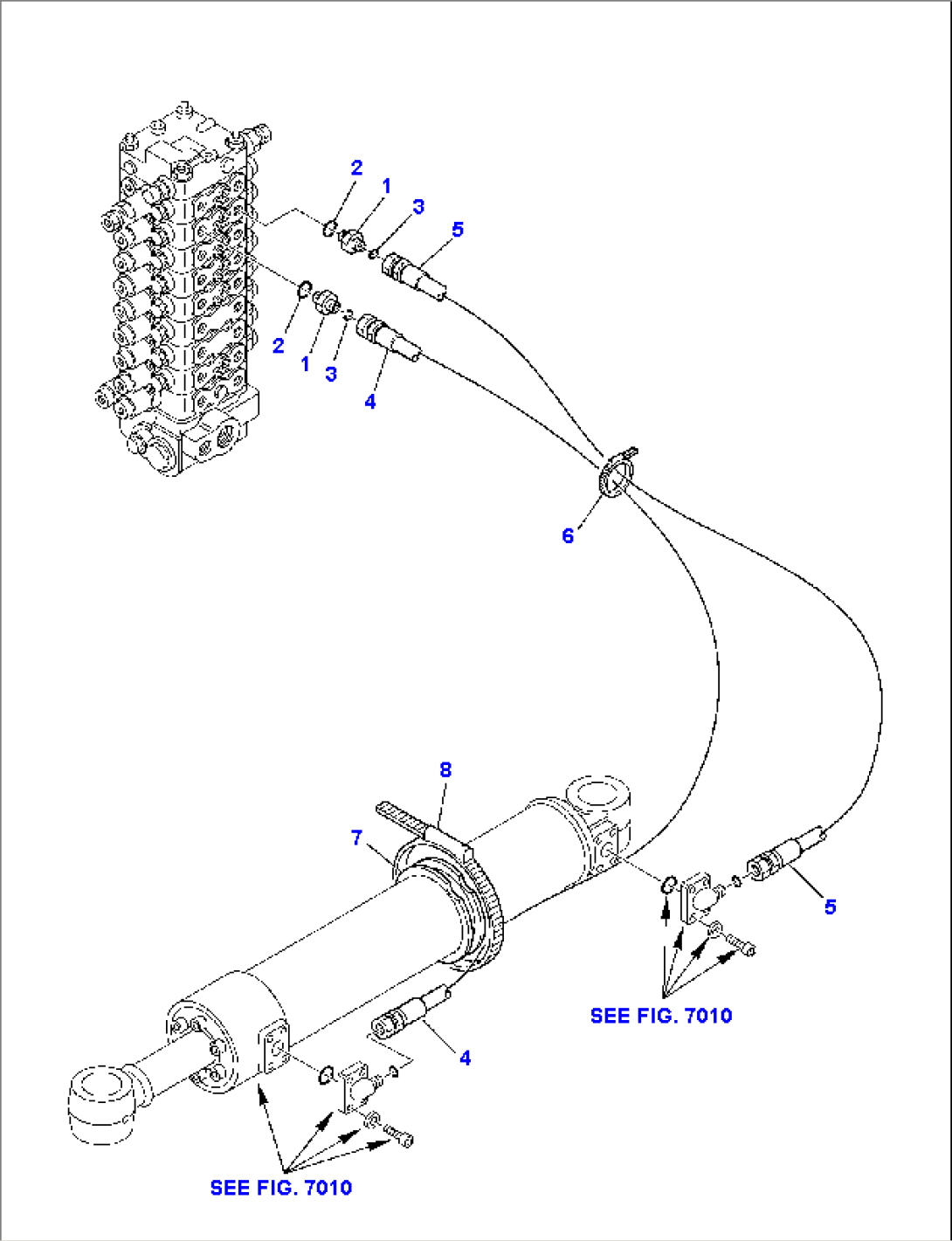

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 22E-62-12550 | UNION | 2265000306- | |
| 2 | 21D-09-69830 | O-RING | 2265000306- | |
| 3 | 21D-09-69770 | O-RING | 2265000306- | |
| 4 | 226-09-11910 | HOSE | 2265000306- | |
| 5 | 226-09-11920 | HOSE | 2265000306- | |
| 6 | 21D-06-12360 | HOSE-CLAMP | 2265000306- | |
| 7 | 22E-62-11570 | U-BOLT | 2265000306- | |
| 8 | 21D-09-82530 | HOSE-CLAMP | 2265000306- | |
| SEE FIG. 7010 |
