| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-62-11891 | HOSE | F61778- | |
| 2 | 02896-11012 | O-RING | F61778- | |
| 3 | 04435-51710 | CLAMP | F61778- | |
| 4 | 01010-81020 | BOLT | F61778- | |
| 5 | 01643-11032 | WASHER | F61778- | |
| SEE FIG. 6385 | ||||
| SEE FIG. 6600 | ||||
| SEE FIG. 6635 |
- Главная
- Каталог запчастей
- Экскаваторы погрузчики
- Wb93r 5e0 s/n f61778 up (tier2) (for russia)
- Work equipment hydraulic system
- Hydraulic piping (bucket 4 in 1 cylinder line) (1/3)
Поиск по каталогу

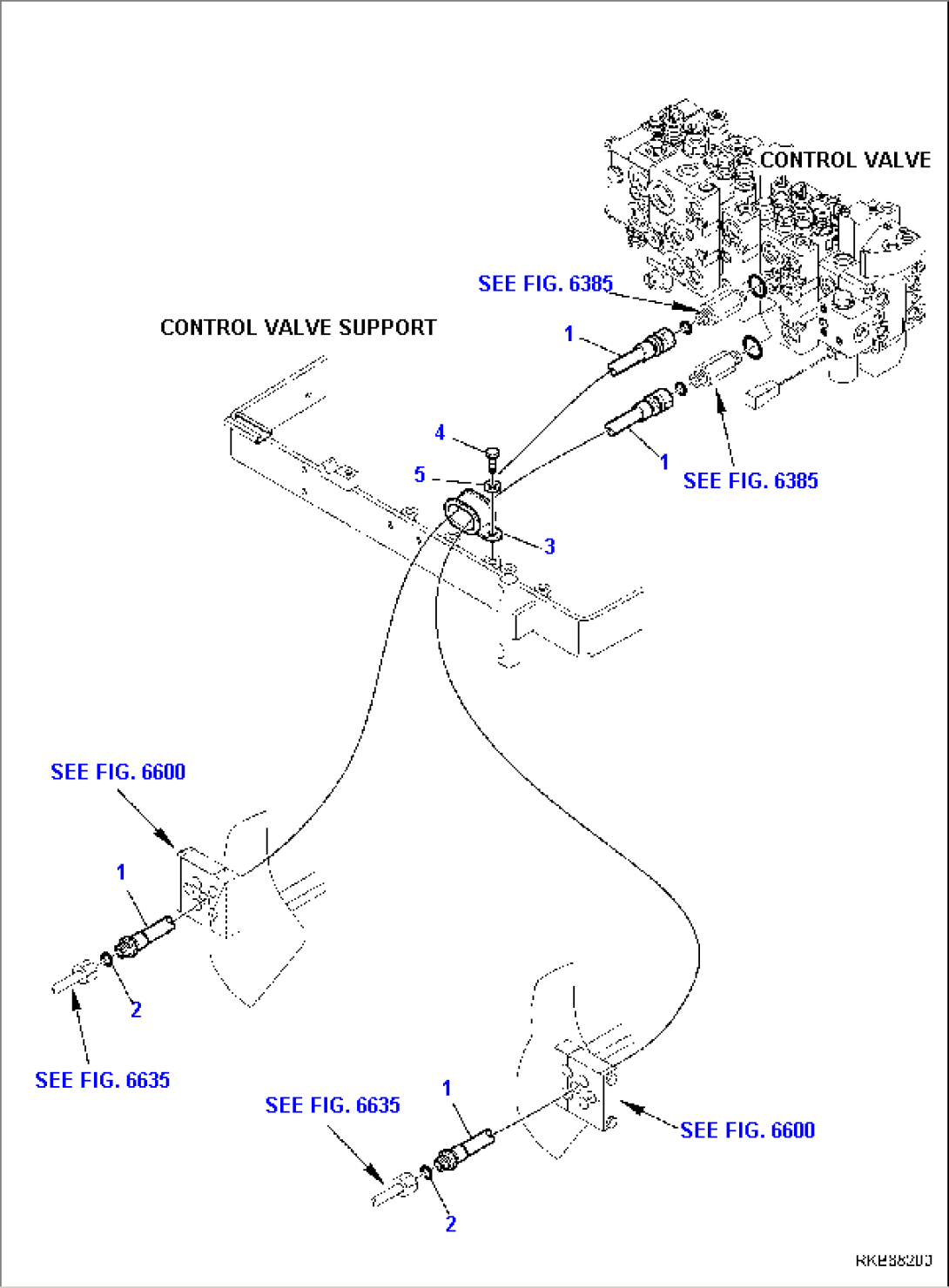

HYDRAULIC PIPING (BUCKET 4 IN 1 CYLINDER LINE) (1/3)
