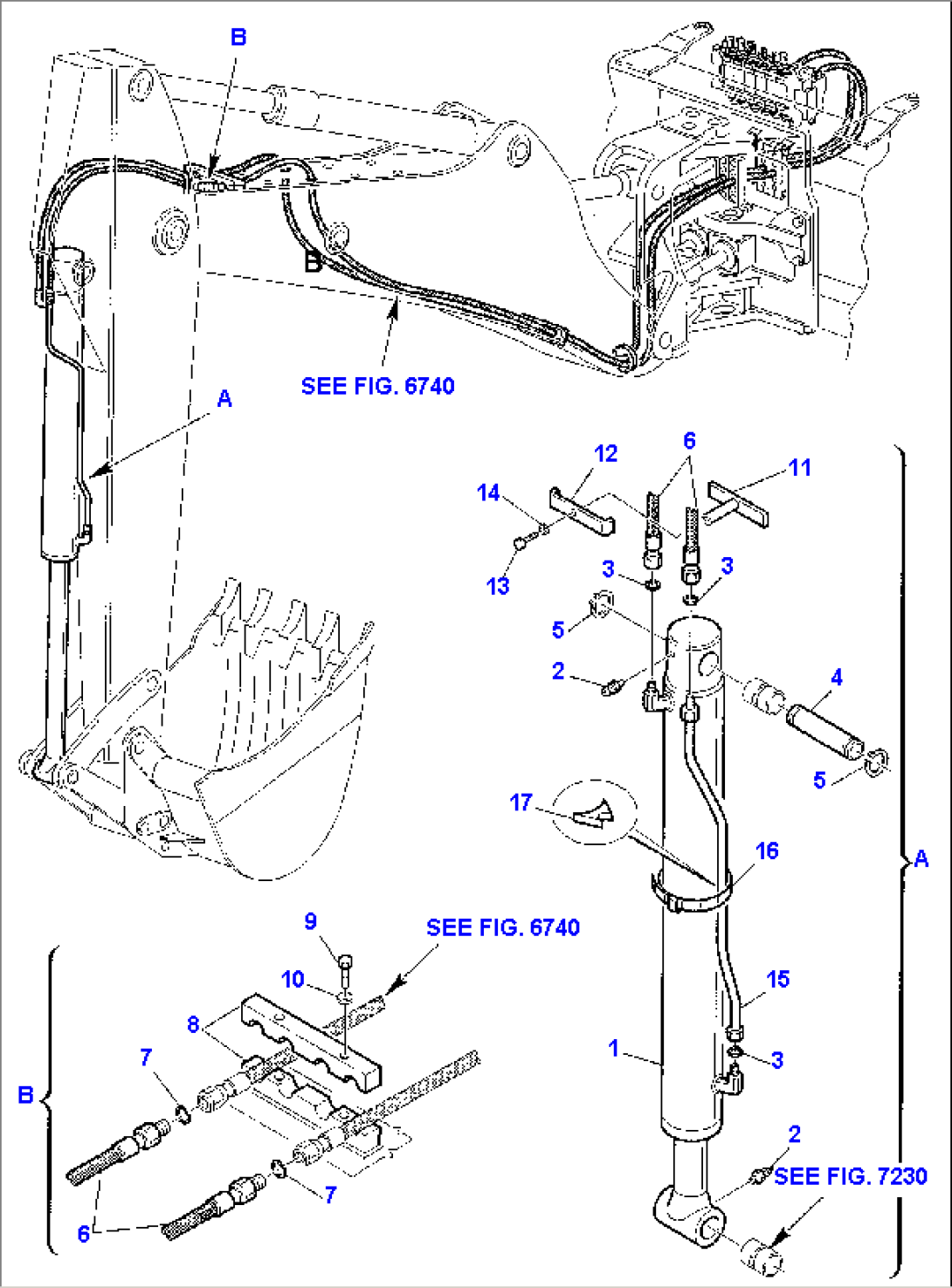

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 395003003 | JACK ASSY | 97F20172- | |
| 2 | 860010007 | FITTING | 97F20172- | |
| 3 | 855051018 | O-RING | 97F20172- | |
| 4 | 312709605 | PIN | 97F20172- | |
| 5 | 802270017 | SNAP RING | 97F20172- | |
| 6 | 392861004 | HOSE | 97F20172- | |
| 7 | 855051018 | O-RING | 97F20172- | |
| 8 | 312308602 | CLAMP | 97F20172- | |
| 9 | 801015559 | BOLT | 97F20172- | |
| 10 | 802150510 | WASHER | 97F20172- | |
| 11 | 312307058 | PLATE | 97F20172- | |
| 12 | 312307605 | BRACKET | 97F20172- | |
| 13 | 801015109 | BOLT | 97F20172- | |
| 14 | 802170002 | WASHER | 97F20172- | |
| 15 | 312707065 | PIPE | 97F20172- | |
| 16 | 802660180 | WRAPPER | 97F20172- | |
| 17 | 314507601 | RETAINER | 97F20172- | |
| SEE FIG. 6740 | ||||
| SEE FIG. 7230 |
