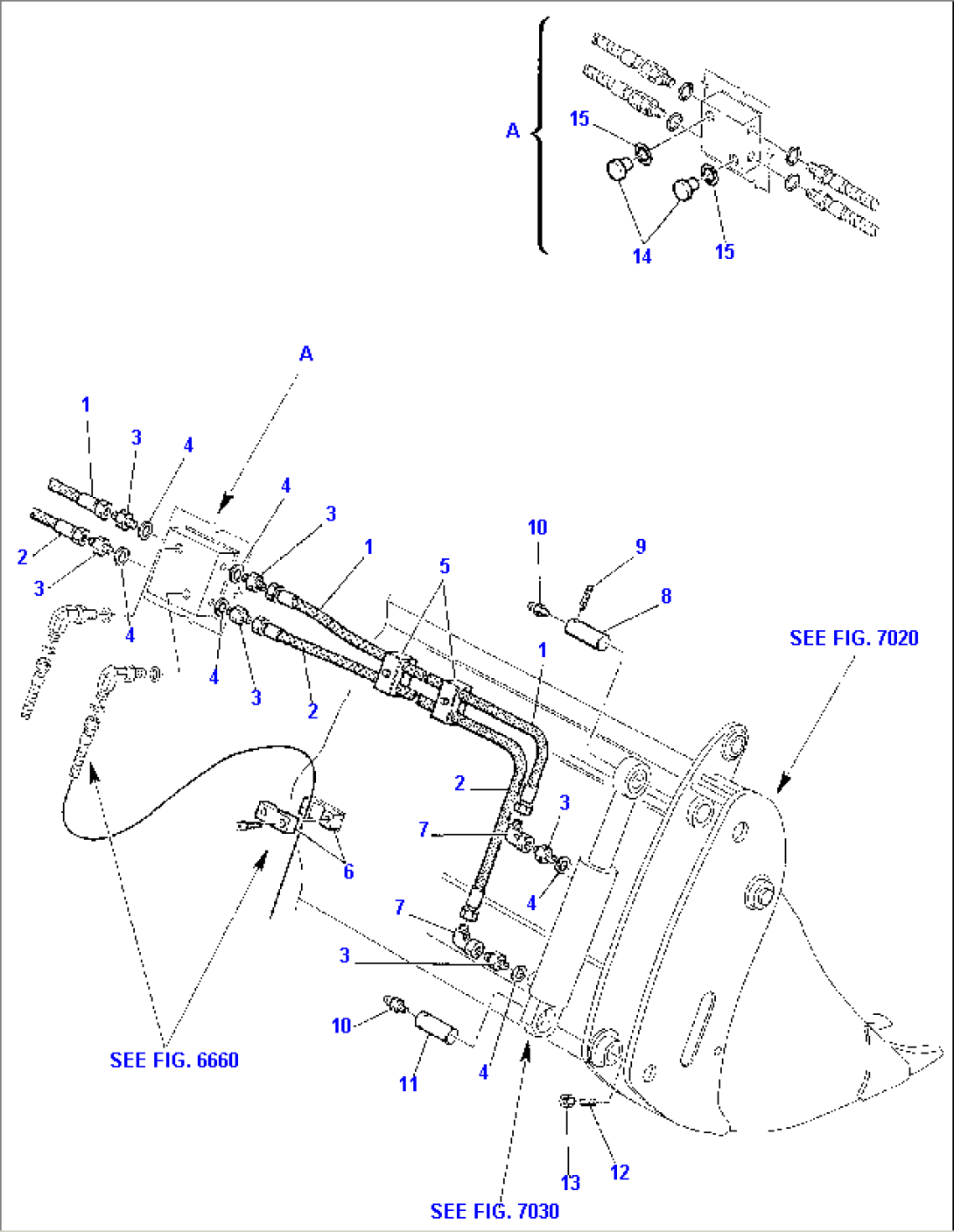

| Item | Part No. | Part Name | Qty | Serial No. |
| \0 | 312630052 | BUCKET 4 IN 1, ASSY | 15050001- | |
| 1 | 392051044 | HOSE | 15050001- | |
| 2 | 392051045 | HOSE | 15050001- | |
| 3 | 500359405 | UNION | 15050001- | |
| 4 | 855150037 | GASKET | 15050001- | |
| 5 | 827020139 | HOSE-CLAMP | 15050001- | |
| 6 | 827020140 | HOSE-CLAMP | 15050001- | |
| 7 | 500352601 | ELBOW | 15050001- | |
| 8 | 312230678 | PIN | 15050001- | |
| 9 | 802510531 | PEG | 15050001- | |
| 10 | 860010007 | FITTING | 15050001- | |
| 11 | 312230679 | PIN | 15050001- | |
| 12 | 801476155 | DOWEL | 15050001- | |
| 13 | 801920107 | NUT | 15050001- | |
| 14 | 500365504 | PLUG | 15050001- | |
| 15 | 855150054 | O-RING | 15050001- | |
| SEE FIG. 6660 | ||||
| SEE FIG. 7020 | ||||
| SEE FIG. 7030 |
