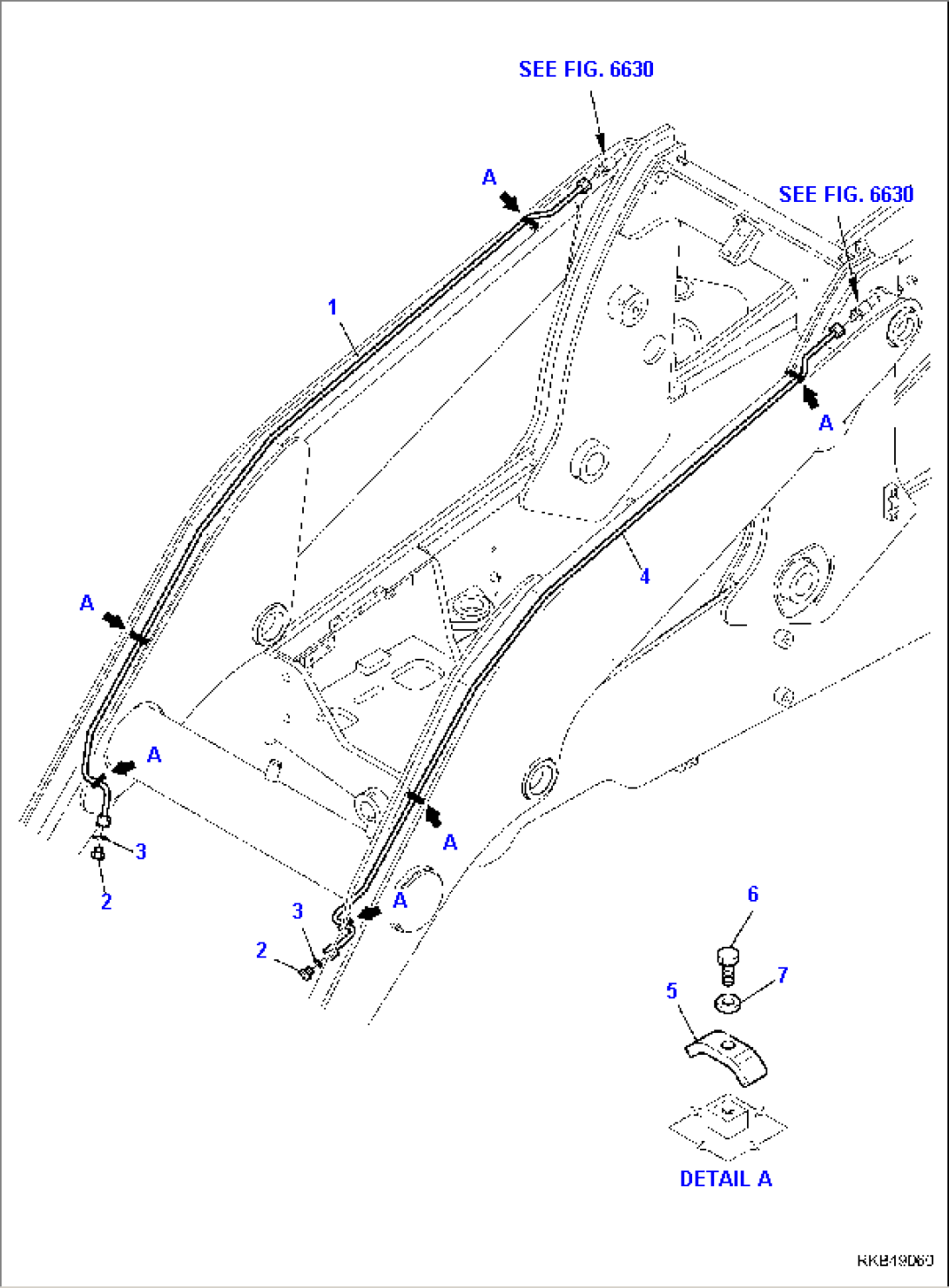

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-62-12670 | PIPE | F20526- | |
| 2 | 37D-09-6H302 | PLUG | F20526- | |
| 3 | 02896-11012 | O-RING | F20526- | |
| 4 | 42N-62-12660 | PIPE | F20526- | |
| 5 | 42N-62-11310 | CLAMP | F20526- | |
| 6 | 01010-80820 | BOLT | F20526- | |
| 7 | 01643-10823 | WASHER | F20526- | |
| SEE FIG. 6630 |
