| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42N-63-11750 | HOSE | F61778- | |
| 2 | 42N-63-11750 | HOSE | F61778- | |
| 3 | 42N-62-12741 | HOSE | F61778- | |
| 4 | 02896-11015 | O-RING | F61778- | |
| 5 | 02896-11018 | O-RING | F61778- | |
| SEE FIG. 6384 | ||||
| SEE FIG. 6750 |
- Главная
- Каталог запчастей
- Экскаваторы погрузчики
- Wb93r 5e0 s/n f61778 up (tier2) (for russia)
- Work equipment hydraulic system
- Hydraulic piping (bucket cylinder line) (with telescopic arm) (1/2)
Поиск по каталогу

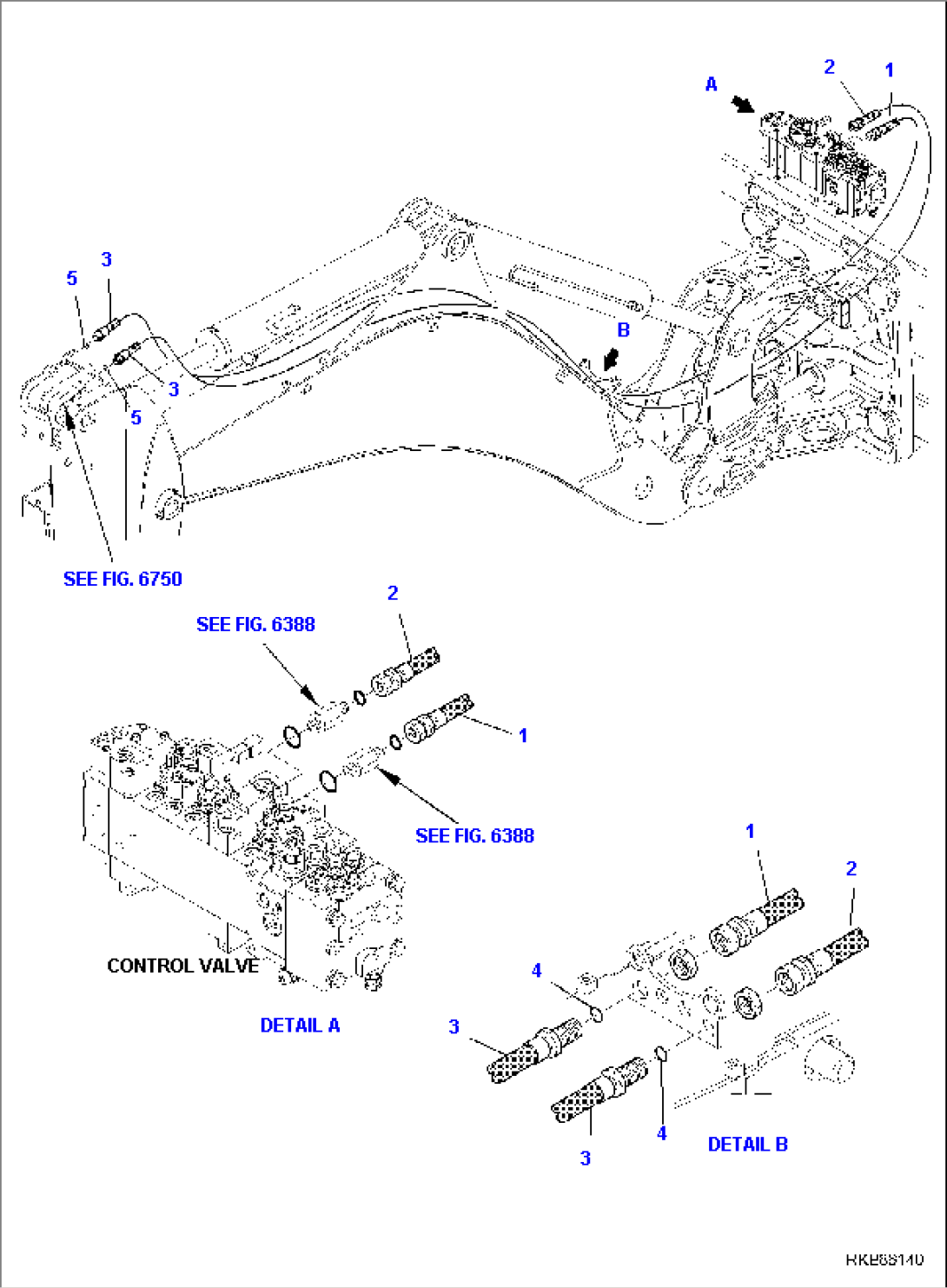

HYDRAULIC PIPING (BUCKET CYLINDER LINE) (WITH TELESCOPIC ARM) (1/2)
