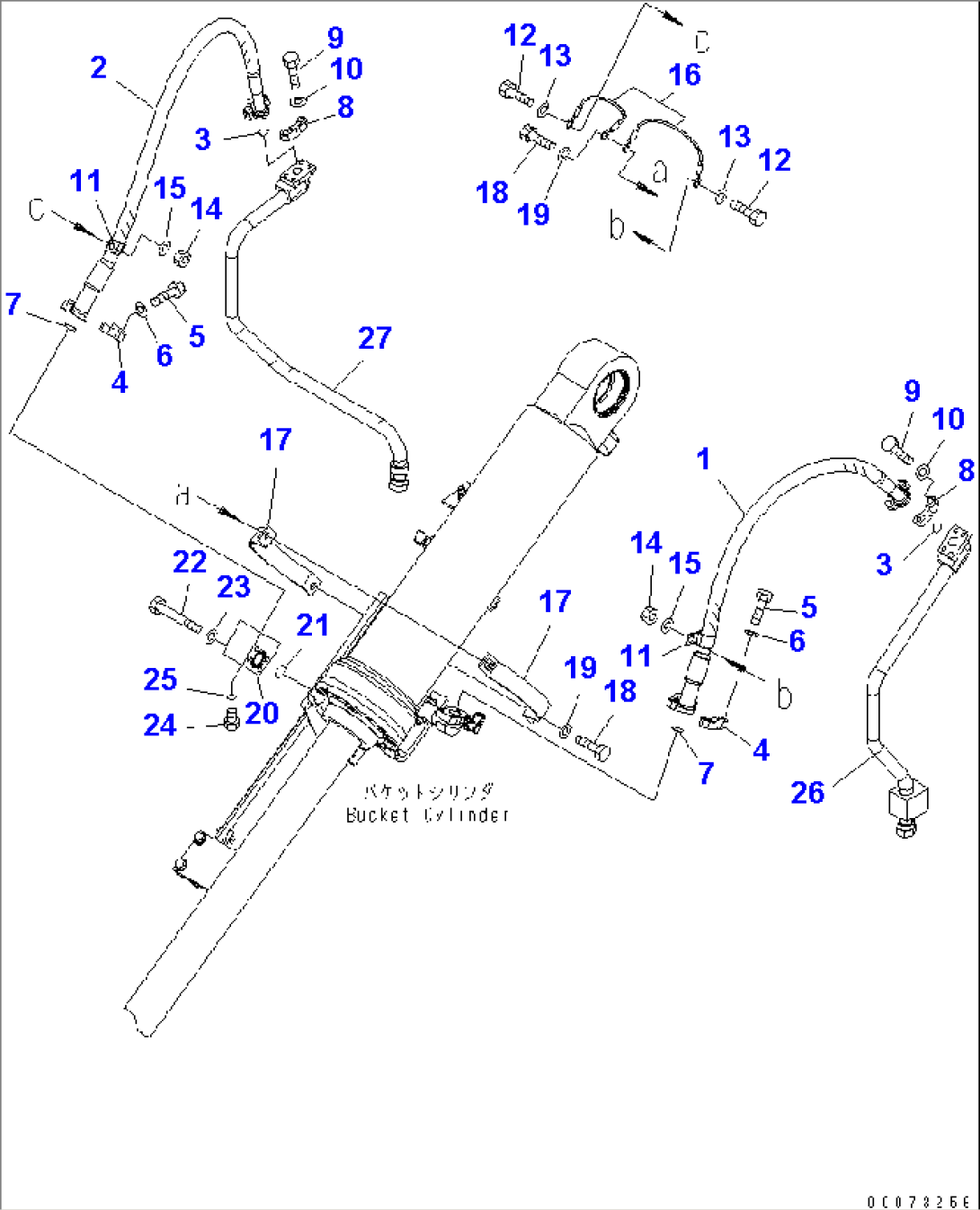

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 417-T90-3142 | HOSE | A89001- | |
| 2 | 417-T90-3152 | HOSE | A89001- | |
| 3 | 07000-13025 | O-RING | A89001- | |
| 4 | 07371-31049 | FLANGE | A89001- | |
| 5 | 07372-21035 | BOLT | A89001- | |
| 6 | 01643-51032 | WASHER | A89001- | |
| 7 | 07000-13032 | O-RING | A89001- | |
| 8 | 07371-30640 | FLANGE | A89001- | |
| 9 | 07372-21035 | BOLT | A89001- | |
| 10 | 01643-51032 | WASHER | A89001- | |
| 11 | 04434-52712 | CLIP | A89001- | |
| 12 | 01010-81230 | BOLT | A89001- | |
| 13 | 01643-31232 | WASHER | A89001- | |
| 14 | 01580-11210 | NUT | A89001- | |
| 15 | 01643-31232 | WASHER | A89001- | |
| 16 | 419-62-13460 | WIRE | A89001- | |
| 17 | 417-T90-3740 | BRACKET | A89001- | |
| 18 | 01010-81230 | BOLT | A89001- | |
| 19 | 01643-31232 | WASHER | A89001- | |
| 20 | 417-T90-3770 | BLOCK | A89001- | |
| 21 | 07000-13035 | O-RING | A89001- | |
| 22 | 01010-81080 | BOLT | A89001- | |
| 23 | 01643-51032 | WASHER | A89001- | |
| 24 | 07040-11007 | PLUG | A89001- | |
| 25 | 07002-11023 | O-RING | A89001- | |
| 26 | TUBE,(SEE FIG. H4200-04A0) | A89001- | ||
| 27 | TUBE,(SEE FIG. H4200-04A0) | A89001- |
