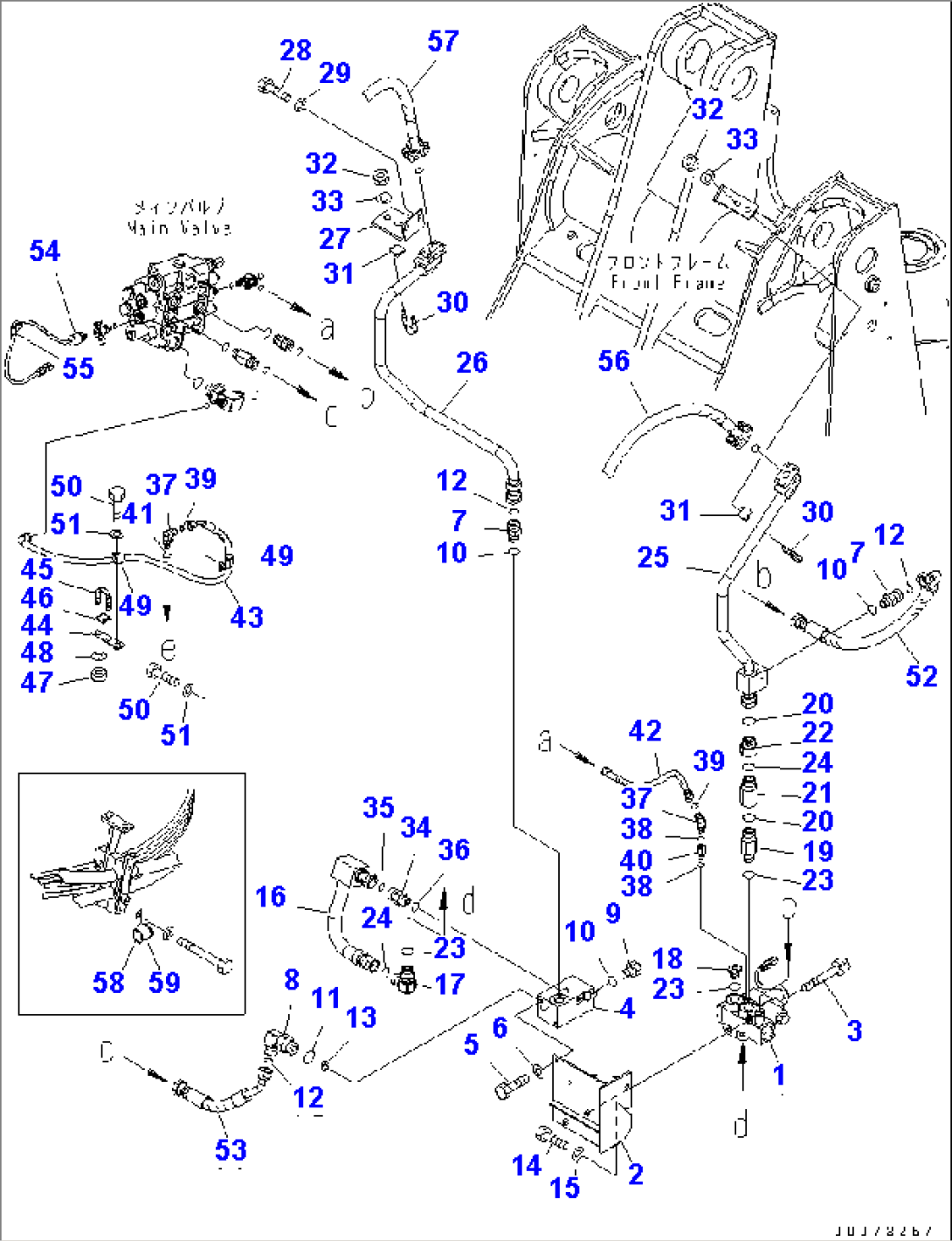

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 418-T80-3801 | SOLENOID VALVE ASS'Y,PILOT | A89001- | |
| 2 | 418-T80-3272 | BRACKET | A89001- | |
| 3 | 01252-60860 | BOLT | A89001- | |
| 4 | 418-T80-3362 | BLOCK | A89001- | |
| 5 | 01010-81020 | BOLT | A89001- | |
| 6 | 01643-31032 | WASHER | A89001- | |
| 7 | 02781-00628 | UNION | A89001- | |
| 8 | 02782-10632 | ELBOW | A89001- | |
| 9 | 07040-12412 | PLUG | A89001- | |
| 10 | 07002-12434 | O-RING | A89001- | |
| 11 | 07002-13334 | O-RING | A89001- | |
| 12 | 02896-11018 | O-RING | A89001- | |
| 13 | 418-T80-3M91 | VENT | A89001- | |
| 14 | 01010-81020 | BOLT | A89001- | |
| 15 | 01643-31032 | WASHER | A89001- | |
| 16 | 418-T80-3371 | TUBE | A89001- | |
| 17 | 418-T80-3391 | ELBOW | A89001- | |
| 18 | 418-T80-3460 | PLUG | A89001- | |
| 19 | 418-T80-3381 | UNION | A89001- | |
| 20 | 07002-13034 | O-RING | A89001- | |
| 21 | 421-62-32672 | VALVE | A89001- | |
| 22 | 421-62-32682 | UNION | A89001- | |
| 23 | 07000-13022 | O-RING | A89001- | |
| 24 | 02896-11018 | O-RING | A89001- | |
| 25 | 417-T90-3112 | TUBE | A89001- | |
| 26 | 417-T90-3122 | TUBE | A89001- | |
| 27 | 417-T90-3450 | PLATE | A89001- | |
| 28 | 01010-81020 | BOLT | A89001- | |
| 29 | 01643-31032 | WASHER | A89001- | |
| 30 | 07283-32746 | CLIP | A89001- | |
| 31 | 07283-52737 | SEAT | A89001- | |
| 32 | 01597-01009 | NUT | A89001- | |
| 33 | 01643-31032 | WASHER | A89001- | |
| 34 | 02781-00628 | UNION | A89001- | |
| 35 | 02896-11018 | O-RING | A89001- | |
| 36 | 07002-12434 | O-RING | A89001- | |
| 37 | 418-T80-3281 | ELBOW | A89001- | |
| 38 | 07000-12011 | O-RING | A89001- | |
| 39 | 02896-11009 | O-RING | A89001- | |
| 40 | 418-T90-3110 | BUSHING | A89001- | |
| 41 | 07000-12011 | O-RING | A89001- | |
| 42 | 02760-00305 | HOSE | A89001- | |
| 43 | 417-T90-3630 | HOSE | A89001- | |
| 44 | 417-T90-3180 | PLATE | A89001- | |
| 45 | 07283-32738 | CLIP | A89001- | |
| 46 | 07283-52737 | SEAT | A89001- | |
| 47 | 01597-01009 | NUT | A89001- | |
| 48 | 01643-31032 | WASHER | A89001- | |
| 49 | 04434-51512 | CLIP | A89001- | |
| 50 | 01010-81020 | BOLT | A89001- | |
| 51 | 01643-31032 | WASHER | A89001- | |
| 52 | 417-T90-3170 | HOSE | A89001- | |
| 53 | 417-T90-3160 | HOSE | A89001- | |
| 54 | 42C-06-15131 | SWITCH,(FOR E.C.S.S.) | A89001- | |
| 55 | 04434-50612 | CLIP,(FOR E.C.S.S.) | A89001- | |
| 56 | HOSE,(SEE FIG. H4200-03A0) | A89001- | ||
| 57 | HOSE,(SEE FIG. H4200-03A0) | A89001- | ||
| 58 | 07095-20314 | CUSHION | A89001- | |
| 59 | 04434-52210 | CLIP | A89001- |
