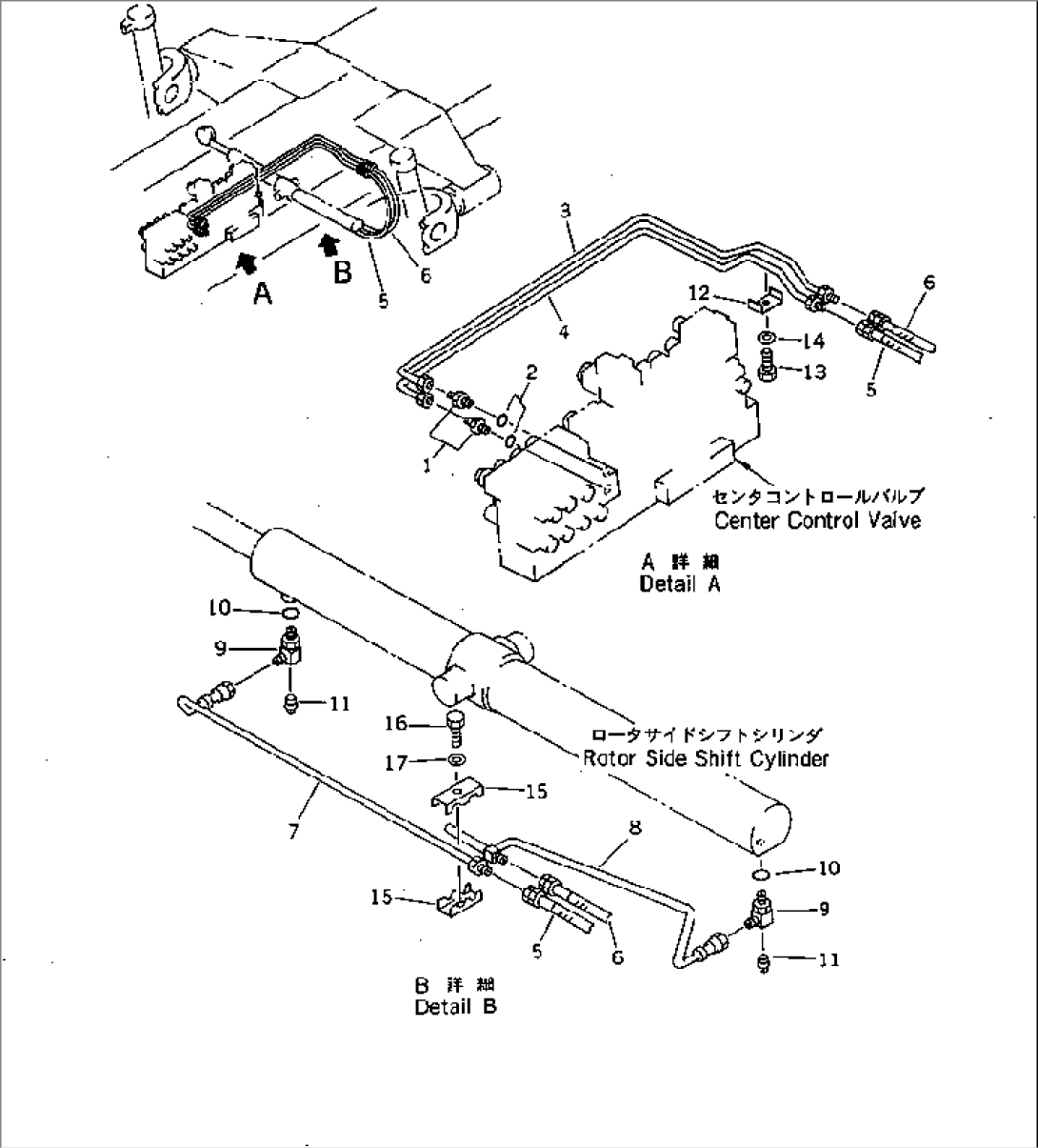

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07230-20210 | UNION | 11009- | |
| 2 | 07002-11423 | O-RING | 11009- | |
| 3 | 262-60-54131 | TUBE | 11009- | |
| 4 | 262-60-54141 | TUBE | 11009- | |
| 5 | 07108-20211 | HOSE | 11009- | |
| 6 | 07108-20211 | HOSE | 11009- | |
| 7 | 262-60-54211 | TUBE | 11009- | |
| 8 | 262-60-55490 | TUBE | 11009- | |
| 9 | 07235-50210 | ELBOW | 11009- | |
| 10 | 07002-11423 | O-RING | 11009- | |
| 11 | 07042-20108 | PLUG | 11009- | |
| 12 | 235-44-11590 | CLIP | 11009- | |
| 13 | 01010-50816 | BOLT | 11009- | |
| 14 | 01643-30823 | WASHER | 11009- | |
| 15 | 262-60-54420 | CLIP | 11009- | |
| 16 | 01010-50845 | BOLT | 11009- | |
| 17 | 01643-30823 | WASHER | 11009- |
