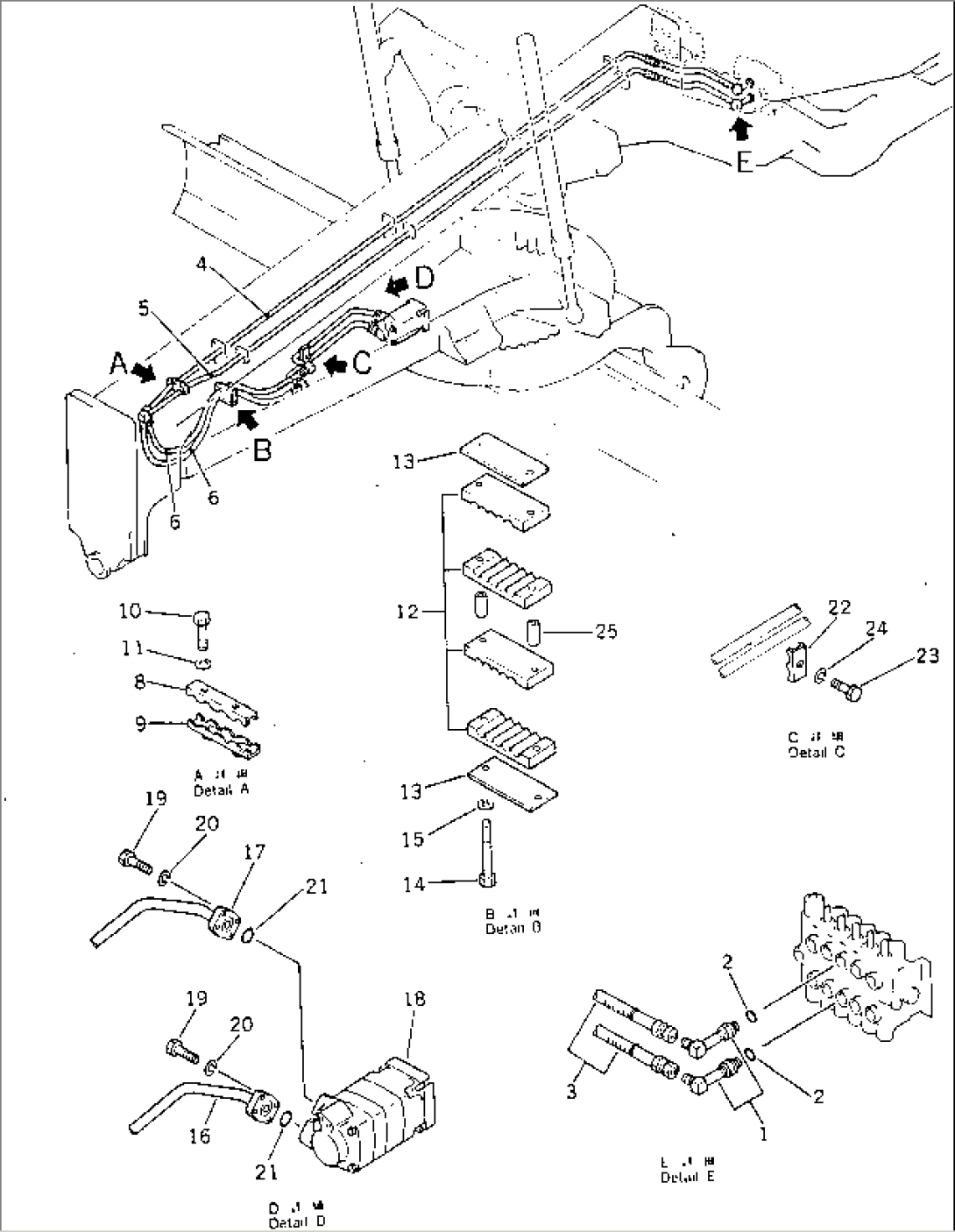

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 238-60-14540 | ELBOW | 50005-@ | |
| 238-60-31140 | ELBOW | 50002-50004 | ||
| 2 | 07002-12034 | O-RING | 50002-@ | |
| 3 | 07113-00408 | HOSE | 50005-@ | |
| 07113-00308 | HOSE | 50002-50004 | ||
| 4 | 233-60-24171 | TUBE | 50005-@ | |
| 233-60-24170 | TUBE | 50002-50004 | ||
| 5 | 233-60-24181 | TUBE | 50005-@ | |
| 233-60-24180 | TUBE | 50002-50004 | ||
| 6 | 07108-20414 | HOSE | 50005-@ | |
| 07108-20314 | HOSE | 50002-50004 | ||
| 7 | 07108-20312 | HOSE | 50002-50004 | |
| 8 | 233-60-24440 | CLIP | 50002-@ | |
| 9 | 237-60-14160 | CLIP | 50002-@ | |
| 10 | 01010-51045 | BOLT | 50002-@ | |
| 11 | 01602-21030 | WASHER | 50002-@ | |
| 12 | 238-60-14670 | CLAMP | 50005-@ | |
| 233-60-24230 | CLAMP | 50002-50004 | ||
| 13 | 238-60-14650 | PLATE | 50005-@ | |
| 233-60-24240 | PLATE | 50002-50004 | ||
| 14 | 01011-51005 | BOLT | 50005-@ | |
| 01010-51095 | BOLT | 50002-50004 | ||
| 15 | 01602-21030 | WASHER | 50002-@ | |
| 16 | 238-60-14431 | TUBE | 50005-50316 | |
| 238-60-14430 | TUBE | 50002-50004 | ||
| 17 | 238-60-14421 | TUBE | 50005-50316 | |
| 238-60-14420 | TUBE | 50002-50004 | ||
| 18 | 232-62-11100 | MOTOR ASS'Y | 50002-@ | |
| 19 | 02010-70632 | BOLT | 50002-50316 | |
| 20 | 01602-20929 | WASHER | 50002-50316 | |
| 21 | 07000-13025 | O-RING | 50002-50316 | |
| 22 | 234-60-22870 | CLIP | 50005-@ | |
| 232-60-54830 | CLIP | 50002-50004 | ||
| 23 | 01010-51025 | BOLT | 50005-@ | |
| 01010-51020 | BOLT | 50002-50004 | ||
| 24 | 01602-21030 | WASHER | 50002-@ | |
| 25 | 238-60-14660 | PIPE | 50005-@ |
