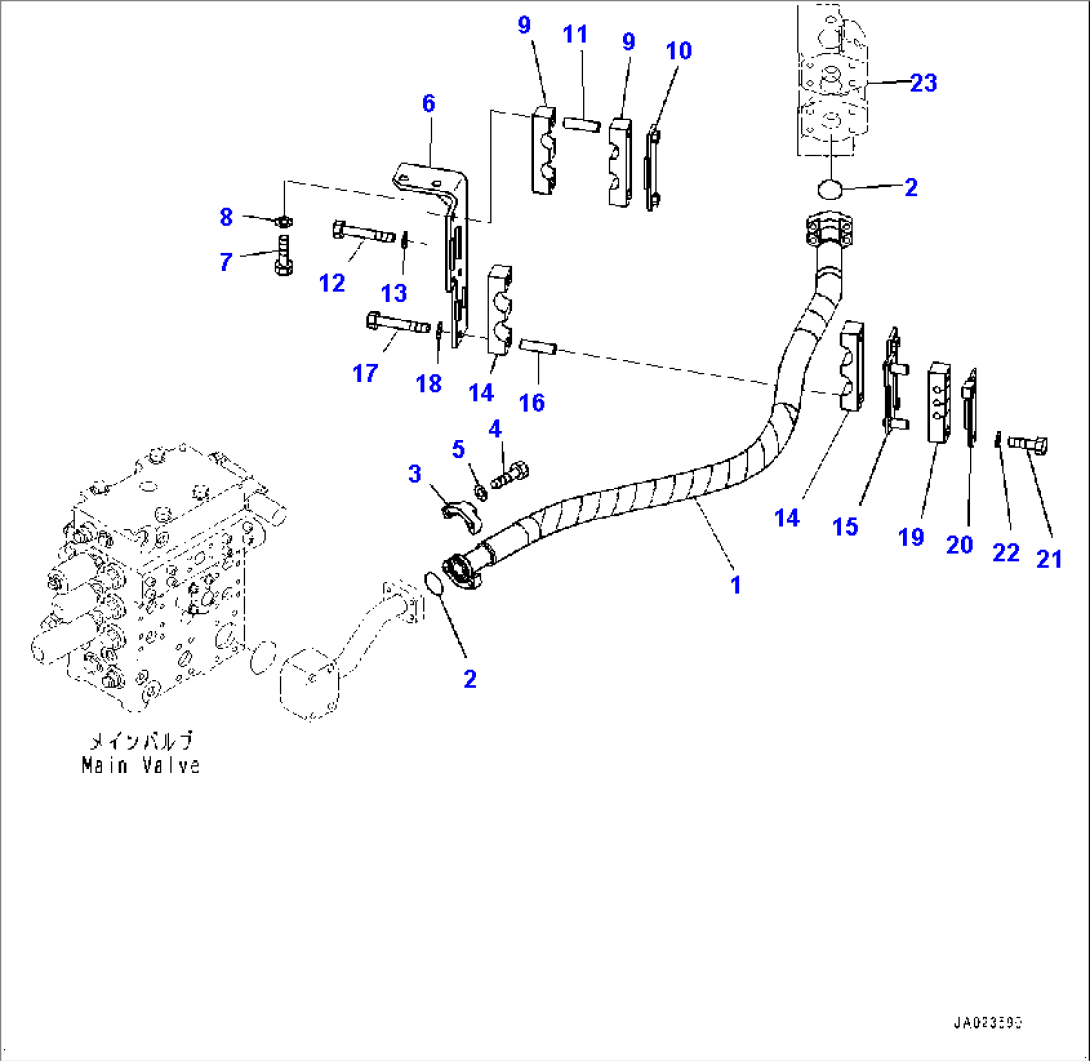

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 421-62-43320 | Hose | 90216- | |
| 2 | 07000-13038 | O-ring | 90216- | |
| 3 | 07371-31255 | Flange, Split | 90216- | |
| 4 | 07372-21035 | Bolt | 90216- | |
| 5 | 01643-51032 | Washer | 90216- | |
| 6 | 421-62-46371 | Bracket | 90216- | |
| 7 | 01010-81230 | Bolt | 90216- | |
| 8 | 01643-31232 | Washer | 90216- | |
| 9 | 421-62-44250 | Clamp | 90216- | |
| 10 | 421-62-46320 | Plate | 90216- | |
| 11 | 417-62-23690 | Spacer | 90216- | |
| 12 | 01010-81095 | Bolt | 90216- | |
| 13 | 01643-31032 | Washer | 90216- | |
| 14 | 421-62-44240 | Clamp | 90216- | |
| 15 | 421-62-46310 | Bracket | 90216- | |
| 16 | 417-62-23690 | Spacer | 90216- | |
| 17 | 01010-81090 | Bolt | 90216- | |
| 18 | 01643-31032 | Washer | 90216- | |
| 19 | 423-62-34981 | Rubber | 90216- | |
| 20 | 421-62-46380 | Plate | 90216- | |
| 21 | 01010-81025 | Bolt | 90216- | |
| 22 | 01643-31032 | Washer | 90216- | |
| 23 | (421-62-45210) | Block | - |
