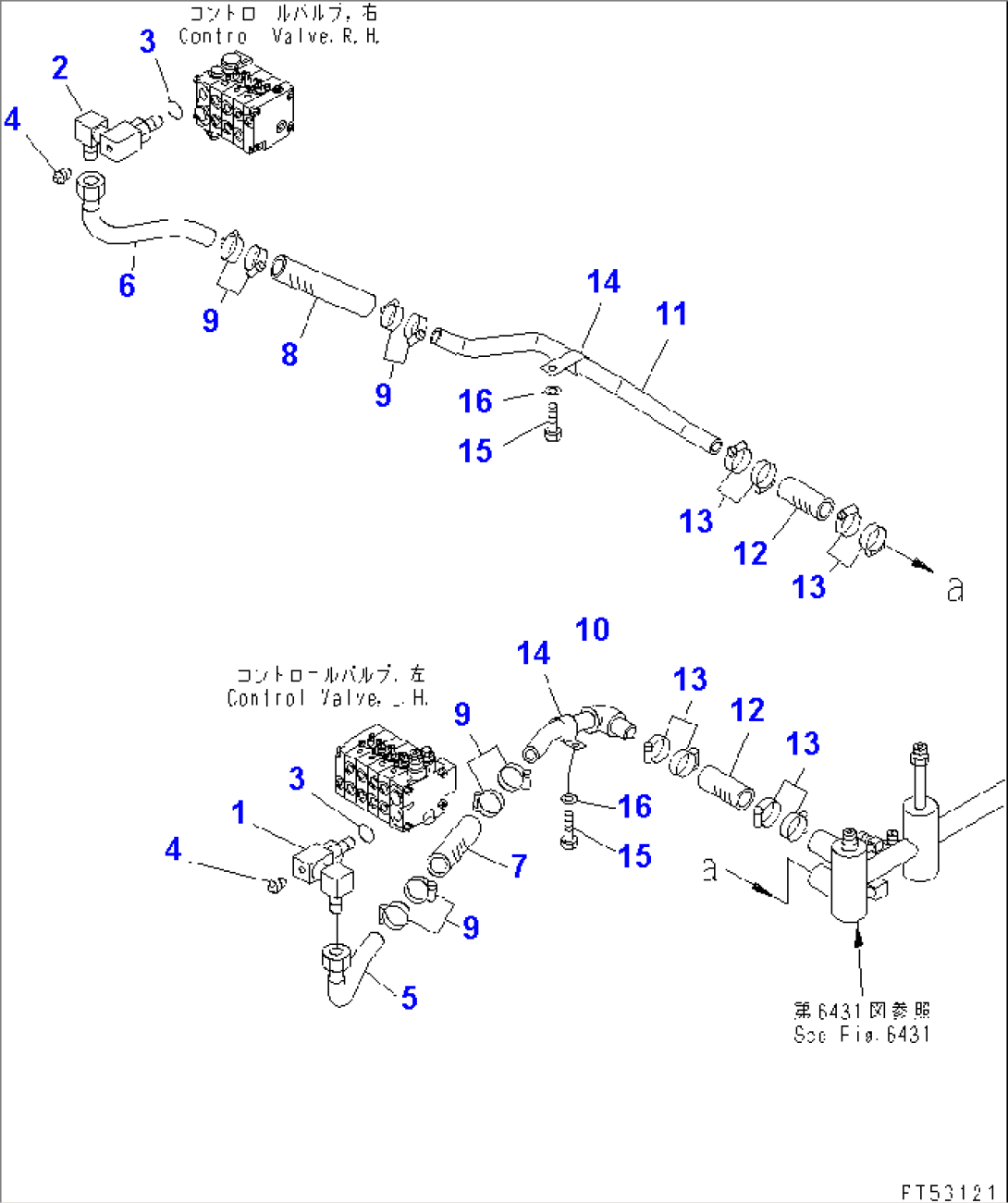

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 23D-60-32610 | JOINT | 7001- | |
| 2 | 23D-60-32461 | JOINT | 7001- | |
| 3 | 07002-12434 | O-RING | 7001- | |
| 4 | 07043-70108 | PLUG | 7001- | |
| 5 | 23D-60-32620 | TUBE | 7001- | |
| 6 | 23D-60-32471 | TUBE | 7001- | |
| 7 | 07260-03218 | HOSE | 7001- | |
| 8 | 07260-03216 | HOSE | 7001- | |
| 9 | 07289-00045 | CLAMP | 7012- | |
| 07281-00549 | CLAMP | 7001-7011 | ||
| 10 | 23D-60-32640 | TUBE | 7001- | |
| 11 | 23D-60-32630 | TUBE | 7001- | |
| 12 | 07260-03212 | HOSE | 7001- | |
| 13 | 07281-00549 | CLAMP | 7001- | |
| 14 | 04434-53411 | CLIP | 7001- | |
| 15 | 01010-81020 | BOLT | 7001- | |
| 16 | 01643-31032 | WASHER | 7001- |
