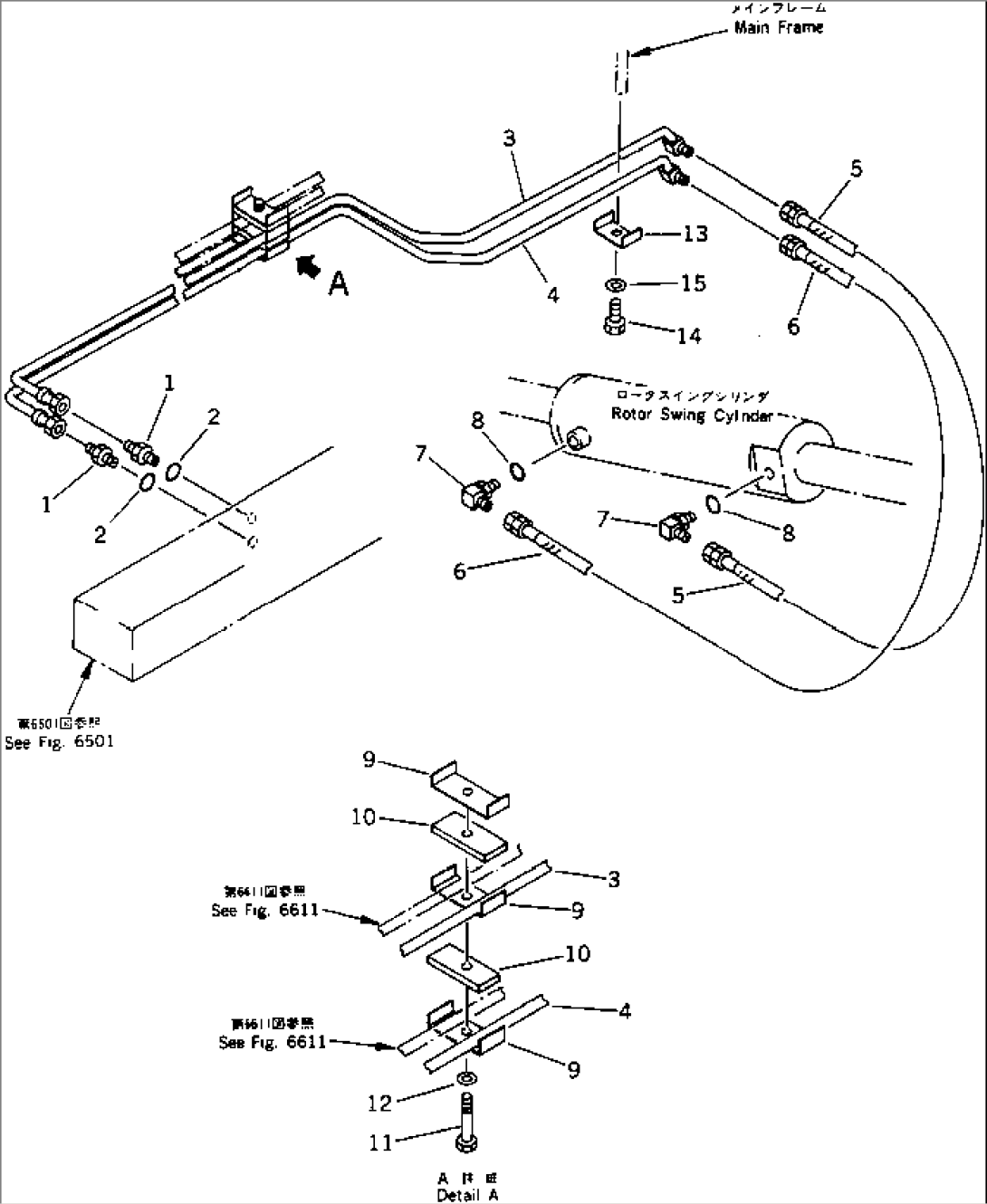

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 07230-20210 | UNION | 10001- | |
| 2 | 07002-11423 | O-RING | 10001- | |
| 3 | 262-60-54151 | TUBE | 10009- | |
| 262-60-54150 | TUBE | 10001-10008 | ||
| 4 | 262-60-54161 | TUBE | 10009- | |
| 262-60-54160 | TUBE | 10001-10008 | ||
| 5 | 07108-20212 | HOSE | 10001- | |
| 6 | 07108-20212 | HOSE | 10001- | |
| 7 | 07235-10210 | ELBOW | 10001- | |
| 8 | 07002-11423 | O-RING | 10001- | |
| 9 | 235-44-11590 | CLIP | 10001- | |
| 10 | 262-60-54190 | SEAT | 10001- | |
| 11 | 01010-50865 | BOLT | 10001- | |
| 12 | 01643-30823 | WASHER | 10001- | |
| 13 | 235-44-11590 | CLIP | 10009- | |
| 14 | 01010-50816 | BOLT | 10009- | |
| 15 | 01643-30823 | WASHER | 10009- |
