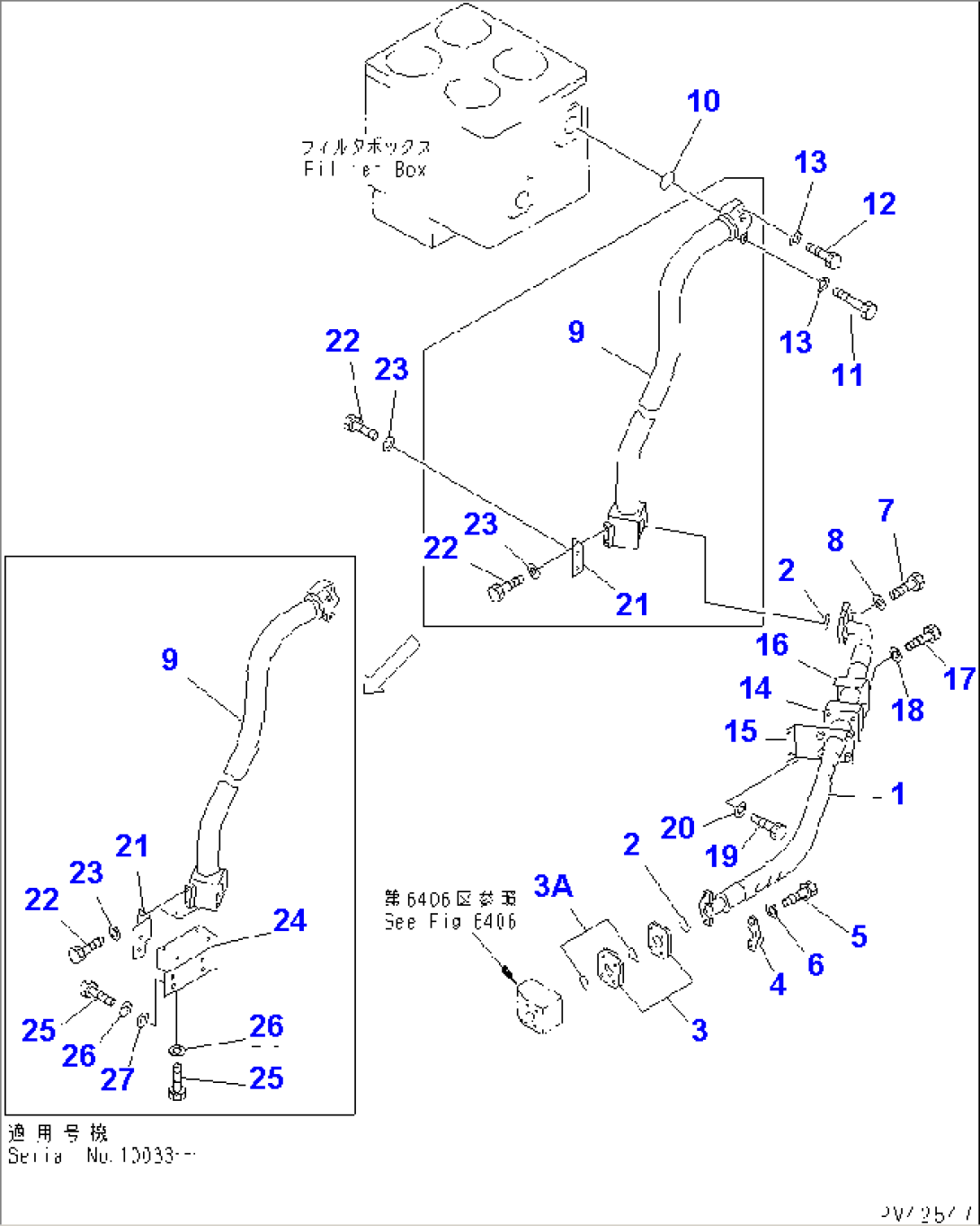

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-62-13932 | HOSE | 10001- | |
| 2 | 07000-F2070 | O-RING | 10054- | |
| \0\07000-02070 | O-RING | 10001-10053 | ||
| 3 | 427-62-12830 | FLANGE | 10001- | |
| 3A | 07000-F2070 | O-RING | 10054- | |
| \0\07000-02070 | O-RING | 10001-10053 | ||
| 4 | 07371-12484 | FLANGE,SPLIT | 10001- | |
| 5 | 07372-21240 | BOLT | 10501- | |
| 07372-21260 | BOLT | 10001-10499 | ||
| 6 | 01643-51232 | WASHER | 10001- | |
| 7 | 07372-21240 | BOLT | 10001- | |
| 8 | 01643-51232 | WASHER | 10001- | |
| 9 | 427-62-14321 | TUBE | 10033- | |
| 427-62-14320 | TUBE | 10001-10032 | ||
| 10 | 07000-F2070 | O-RING | 10054- | |
| 07000-02070 | O-RING | 10001-10053 | ||
| 11 | 01011-81200 | BOLT | 10001- | |
| 12 | 01010-81245 | BOLT | 10001- | |
| 13 | 01643-31232 | WASHER | 10001- | |
| 14 | 427-62-13950 | STRIP | 10001- | |
| 15 | 427-62-13940 | BRACKET | 10001- | |
| 16 | 427-62-13960 | COVER | 10001- | |
| 17 | 01435-01280 | BOLT | 10501- | |
| \0\01010-51280 | BOLT | 10001-10499 | ||
| 18 | 01643-31232 | WASHER | 10001-10499 | |
| 19 | 01435-01225 | BOLT | 10501- | |
| \0\01010-51230 | BOLT | 10001-10499 | ||
| 20 | 01643-31232 | WASHER | 10001-10499 | |
| 21 | 427-62-14372 | BRACKET | 10033-10528 | |
| 427-62-14371 | BRACKET | 10001-10032 | ||
| 22 | 01435-01225 | BOLT | 10501- | |
| \0\01010-31230 | BOLT | 10001-10499 | ||
| 23 | 01643-31232 | WASHER | 10001-10499 | |
| 24 | 427-62-15120 | BRACKET | 10033- | |
| 25 | 01010-81640 | BOLT | 10033- | |
| 26 | 01643-31645 | WASHER | 10033- | |
| 27 | 01643-31845 | WASHER | 10033- |
