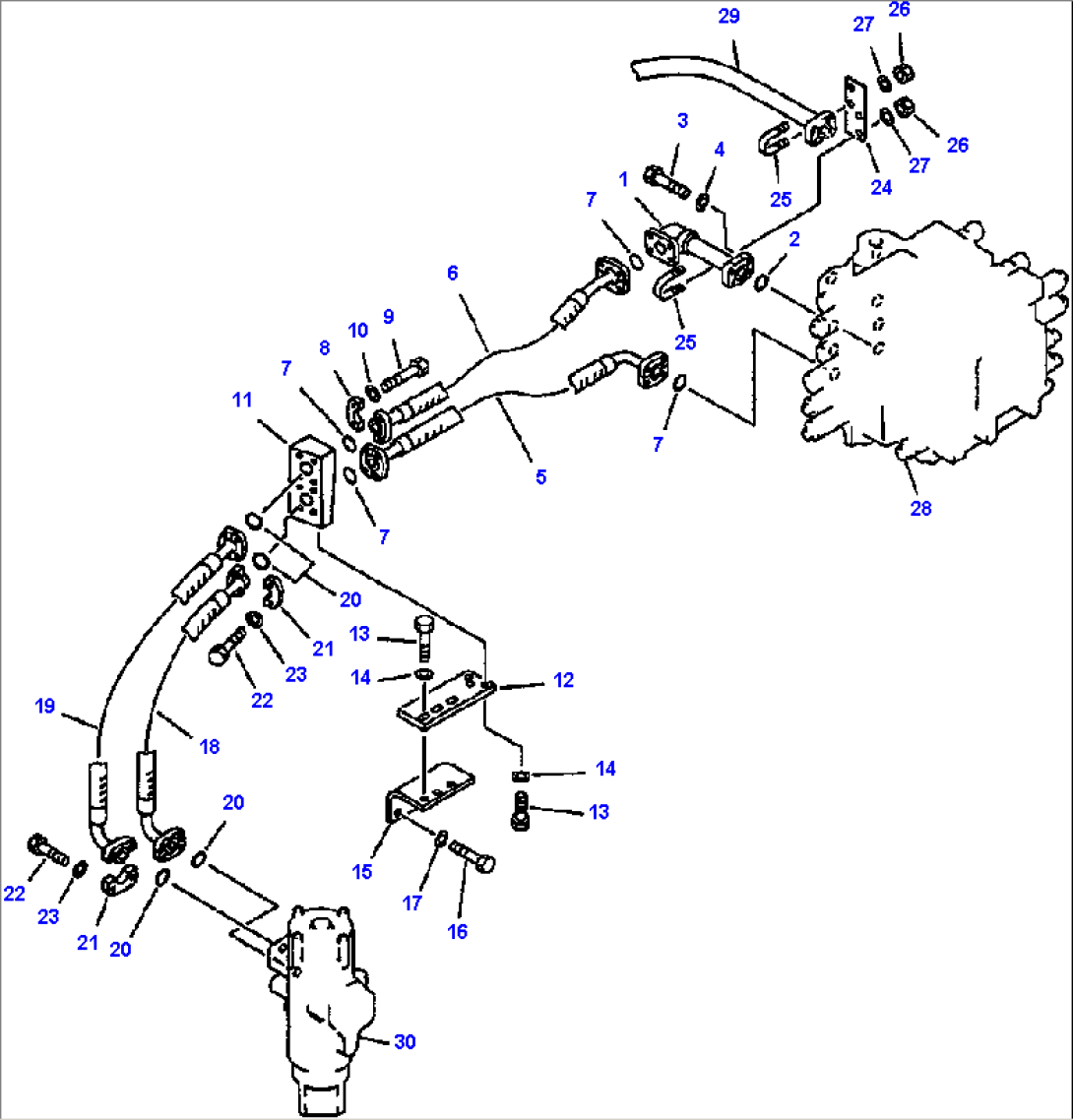

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 208-62-51450 | TUBE | ||
| 2 | 21T-09-11470 | O-RING | ||
| 3 | 07372-21040 | BOLT | ||
| 4 | 01643-51032 | WASHER | ||
| 5 | 208-62-51520 | HOSE | ||
| 6 | 208-62-51510 | HOSE | ||
| 7 | 21T-09-11460 | O-RING | ||
| 8 | 07371-31049 | FLANGE | ||
| 9 | 07372-21035 | BOLT | ||
| 10 | 01643-51032 | WASHER | ||
| 11 | 208-62-51470 | BLOCK | ||
| 12 | 208-62-51460 | BRACKET | ||
| 13 | 01010-81240 | BOLT | ||
| 14 | 01643-31232 | WASHER | ||
| 15 | 208-62-51480 | BRACKET | ||
| 16 | 01010-81235 | BOLT | ||
| 17 | 01643-31232 | WASHER | ||
| 18 | 07098-01007 | HOSE - UPPER R.H | ||
| 19 | 07098-01007 | HOSE | ||
| 20 | 21T-09-11460 | O-RING | ||
| 21 | 07371-31049 | FLANGE | ||
| 22 | 07372-21035 | BOLT | ||
| 23 | 01643-51032 | WASHER | ||
| 24 | 208-62-51490 | BRACKET | ||
| 25 | 07283-33450 | CLIP | ||
| 26 | 01599-01011 | NUT | ||
| 27 | 01643-31032 | WASHER | ||
| 28 | VALVE, CONTROL (SEE PG 06-064) | |||
| 29 | TUBE (SEE PG 06-178) | |||
| 30 | JOINT, SWIVEL (SEE PG 06-100) | |||
| OR | ||||
| 30 | JOINT, SWIVEL (SEE PG 06-102) | |||
| F1 - USED WITH SWIVEL JOINT 207-62-A1110. USE HOSE 208-62-51390 IF | ||||
| USING SWIVEL JOINT 703-09-33210. |
