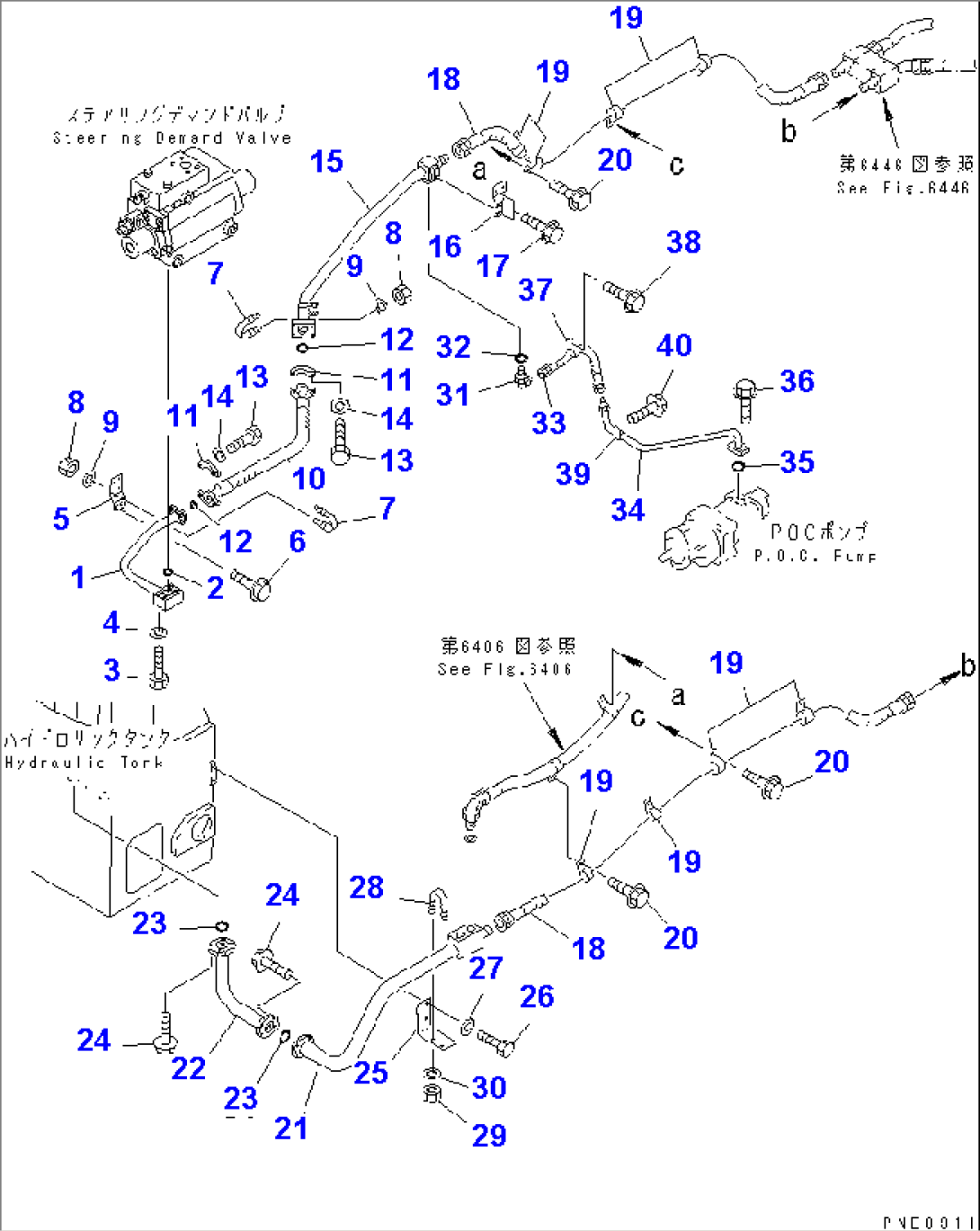

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-S33-1180 | TUBE | 10001- | |
| 2 | 07000-F3048 | O-RING | 10001- | |
| 3 | 01010-81485 | BOLT | 10001- | |
| 4 | 20D-14-11510 | WASHER | 10001- | |
| 5 | 428-62-13771 | PLATE | 10001- | |
| 6 | 01435-01020 | BOLT | 10001- | |
| 7 | 07283-34346 | CLIP | 10001- | |
| 8 | 01597-01009 | NUT | 10001- | |
| 9 | 01643-31032 | WASHER | 10001- | |
| 10 | 07119-01210 | HOSE | 10001- | |
| 11 | 07371-31255 | FLANGE,SPLIT | 10001- | |
| 12 | 07000-F3038 | O-RING | 10001- | |
| 13 | 07372-21035 | BOLT | 10001- | |
| 14 | 01643-51032 | WASHER | 10001- | |
| 15 | 428-62-15121 | TUBE | 10001- | |
| 16 | 428-62-15141 | PLATE | 10001- | |
| 17 | 01435-01020 | BOLT | 10001- | |
| 18 | 07102-21426 | HOSE | 10001- | |
| 19 | 419-09-11150 | CLIP | 10001- | |
| 20 | 01435-01220 | BOLT | 10001- | |
| 21 | 428-62-15410 | TUBE | 10001- | |
| 22 | 428-62-15420 | TUBE | 10001- | |
| 23 | 07000-F2060 | O-RING | 10001- | |
| 24 | 01435-01235 | BOLT | 10001- | |
| 25 | 428-62-15440 | PLATE | 10001- | |
| 26 | 01010-81025 | BOLT | 10001- | |
| 27 | 01643-31032 | WASHER | 10001- | |
| 28 | 07283-36155 | CLIP | 10001- | |
| 29 | 01597-01009 | NUT | 10001- | |
| 30 | 01643-31032 | WASHER | 10001- | |
| 31 | 07235-10522 | ELBOW | 10001- | |
| 32 | 07002-22434 | O-RING | 10001- | |
| 33 | 07102-20506 | HOSE | 10001- | |
| 34 | 428-62-15211 | TUBE | 10001- | |
| 35 | 07000-13030 | O-RING | 10001- | |
| 36 | 01435-00835 | BOLT | 10001- | |
| 37 | 08036-02514 | CLIP | 10001- | |
| 38 | 01435-01016 | BOLT | 10001- | |
| 39 | 04434-52110 | CLIP | 10001- | |
| 40 | 01435-01016 | BOLT | 10001- |
