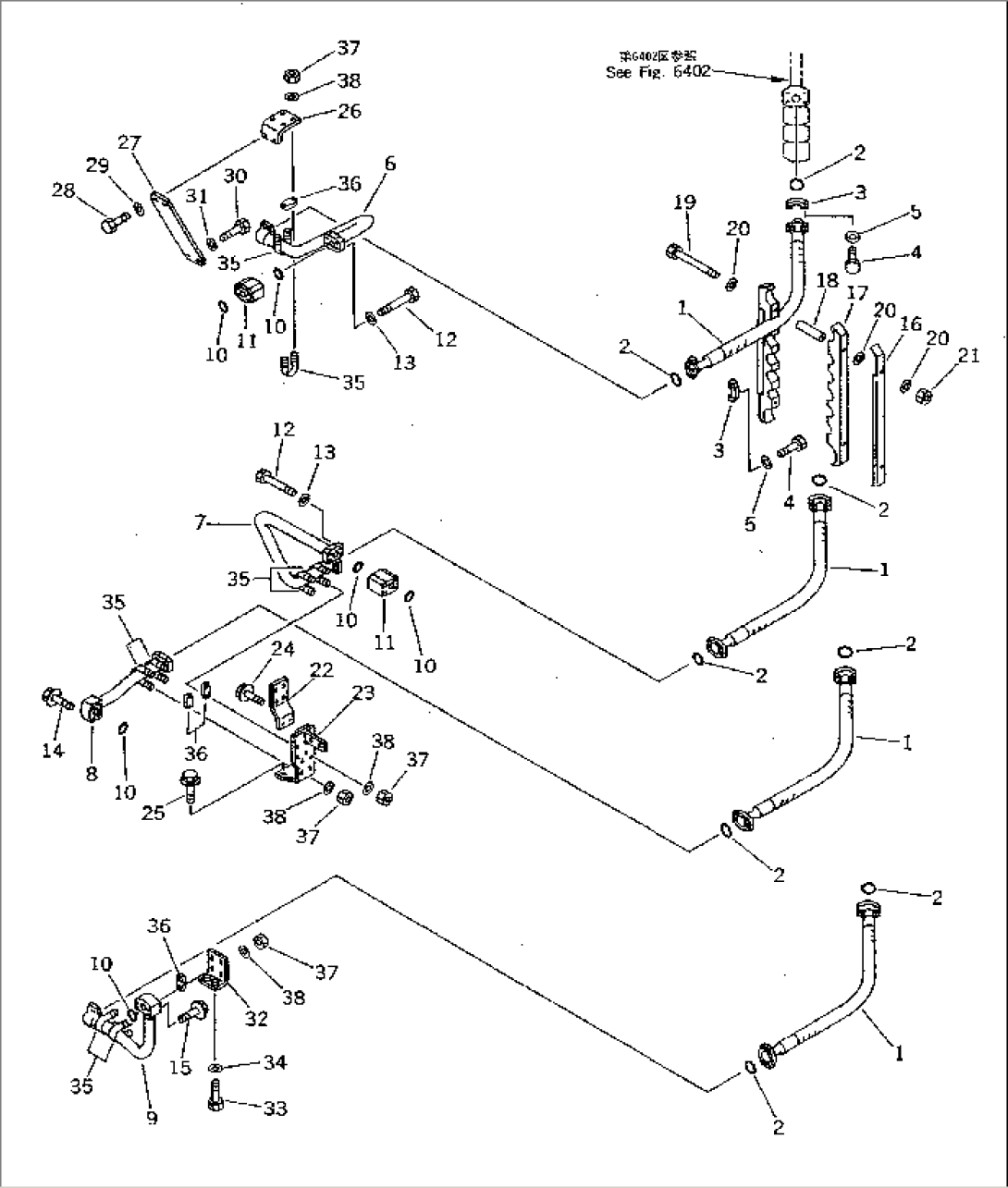

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-62-13250 | HOSE | .- | |
| 428-62-12620 | HOSE | .- | ||
| 428-62-13250 | HOSE | 10001-. | ||
| 2 | 07000-F3032 | O-RING | 10001- | |
| 3 | 07371-31049 | FLANGE,SPLIT | 10001- | |
| 4 | 07372-21035 | BOLT | 10001- | |
| 5 | 01643-51032 | WASHER | 10001- | |
| 6 | 428-62-13660 | TUBE | 10001- | |
| 7 | 428-62-13672 | TUBE | 10001- | |
| 8 | 428-62-11430 | TUBE | 10001- | |
| 9 | 428-62-13690 | TUBE | 10001- | |
| 10 | 07000-F3035 | O-RING | 10001- | |
| 11 | (702-13-23902) | VALVE ASS'Y,CHECK | 10001- | |
| 12 | 419-877-1340 | BOLT | 10001- | |
| 13 | 01643-51032 | WASHER | 10001- | |
| 14 | 01435-01060 | BOLT | 10001- | |
| 15 | 01435-01055 | BOLT | 10001- | |
| 16 | 428-62-13630 | PLATE | 10001- | |
| 17 | 428-62-13621 | STRIP | 10001- | |
| 18 | 426-62-11461 | PIPE | 10001- | |
| 19 | 01011-81640 | BOLT | 10001- | |
| 20 | 01643-31645 | WASHER | 10001- | |
| 21 | 01580-11613 | NUT | 10001- | |
| 22 | 428-62-13771 | PLATE | 10001- | |
| 23 | 428-62-13742 | PLATE | 10001- | |
| 24 | 01435-01020 | BOLT | 10001- | |
| 25 | 01435-01225 | BOLT | 10001- | |
| 26 | 428-62-13750 | PLATE | 10001- | |
| 27 | 428-62-13761 | PLATE | 10001- | |
| 28 | 01010-81045 | BOLT | 10001- | |
| 29 | 01643-31032 | WASHER | 10001- | |
| 30 | 01010-81040 | BOLT | 10001- | |
| 31 | 01643-31032 | WASHER | 10001- | |
| 32 | 428-62-13750 | PLATE | 10001- | |
| 33 | 01010-81035 | BOLT | 10001- | |
| 34 | 01643-31032 | WASHER | 10001- | |
| 35 | 07283-33450 | CLIP | 10001- | |
| 36 | 07283-53444 | SEAT | 10001- | |
| 37 | 01597-01009 | NUT,LOCK | 10001- | |
| 38 | 01643-31032 | WASHER | 10001- |
