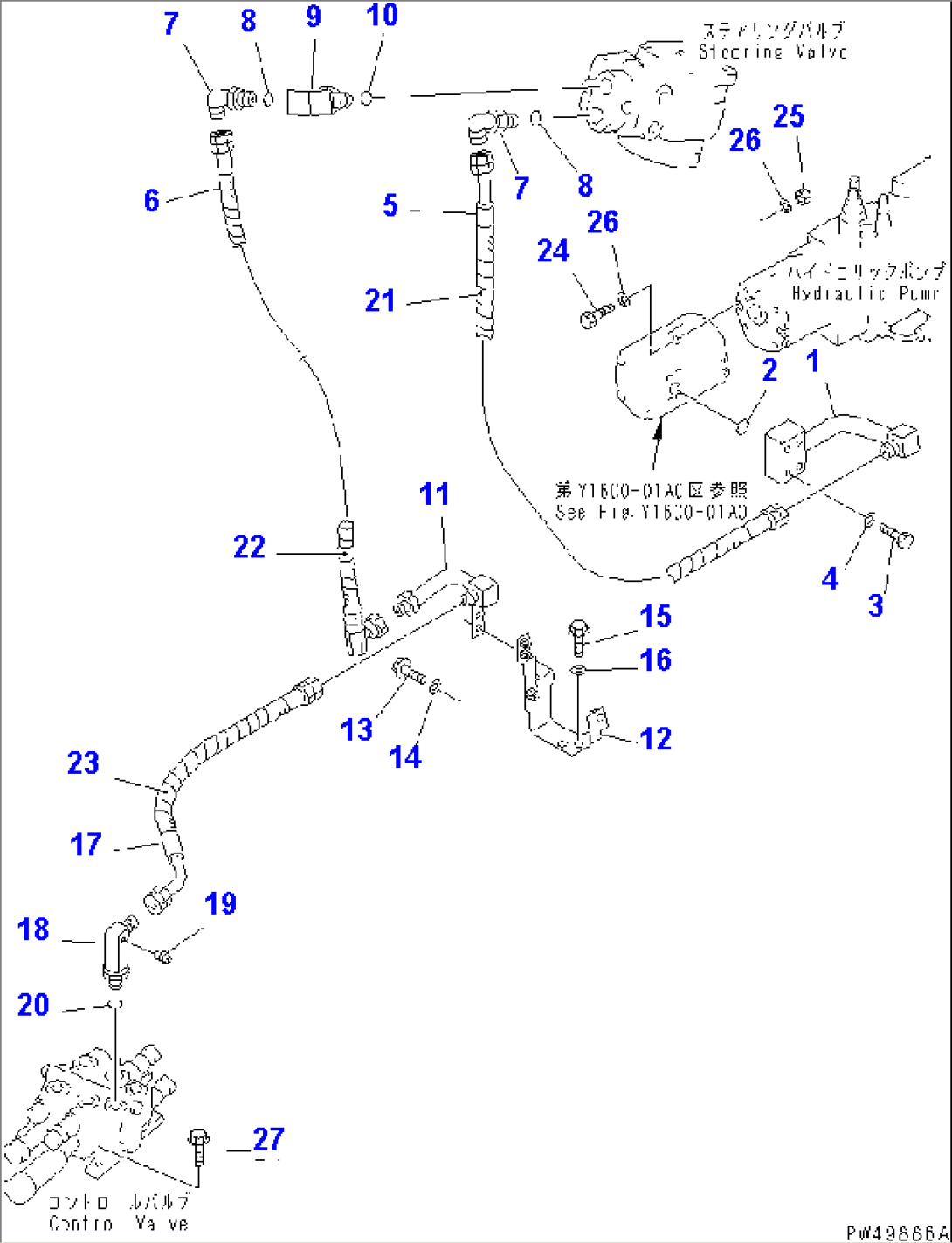

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 42A-62-23140 | TUBE | 13530-14971 | |
| 363-62-33480 | TUBE | 10001-13529 | ||
| 2 | 07000-13025 | O-RING | 13530-14971 | |
| 07000-12021 | O-RING | 10001-13529 | ||
| 3 | 01010-80850 | BOLT | 10001-14971 | |
| 4 | 01643-50823 | WASHER | 10001-14971 | |
| 5 | 363-62-33610 | HOSE | 12551-14971 | |
| 6 | 363-62-33141 | HOSE | 10239-@ | |
| 7 | 363-18-31260 | ELBOW | 10001-@ | |
| 8 | 07000-12018 | O-RING | 10001-@ | |
| 9 | 363-62-33120 | ELBOW | 10001-@ | |
| 10 | 07000-12018 | O-RING | 10001-@ | |
| 11 | 42A-62-23120 | TUBE | 12551-@ | |
| 12 | 42A-62-23130 | BRACKET | 12551-@ | |
| 13 | 01435-00816 | BOLT | 12551-@ | |
| 14 | 01643-30823 | WASHER | 12551-@ | |
| 15 | 01435-01025 | BOLT | 12551-@ | |
| 16 | 01643-31032 | WASHER | 12551-@ | |
| 17 | 363-62-33150 | HOSE | 10001-@ | |
| 18 | 363-62-33350 | ELBOW | 10001-@ | |
| 19 | 07042-20108 | PLUG | 10001-@ | |
| 20 | 07000-12018 | O-RING | 10001-@ | |
| 21 | 415-62-13710 | PROTECTOR | 10001-@ | |
| 22 | 363-62-33470 | PROTECTOR | 10001-@ | |
| 23 | 363-18-31410 | PROTECTOR | 10001-@ | |
| 24 | 01010-80825 | BOLT | 10001-14971 | |
| 25 | 01580-10806 | NUT | 10001-14971 | |
| 26 | 01641-20812 | WASHER | 10001-14971 | |
| 27 | 01435-01025 | BOLT | 10001-@ |
