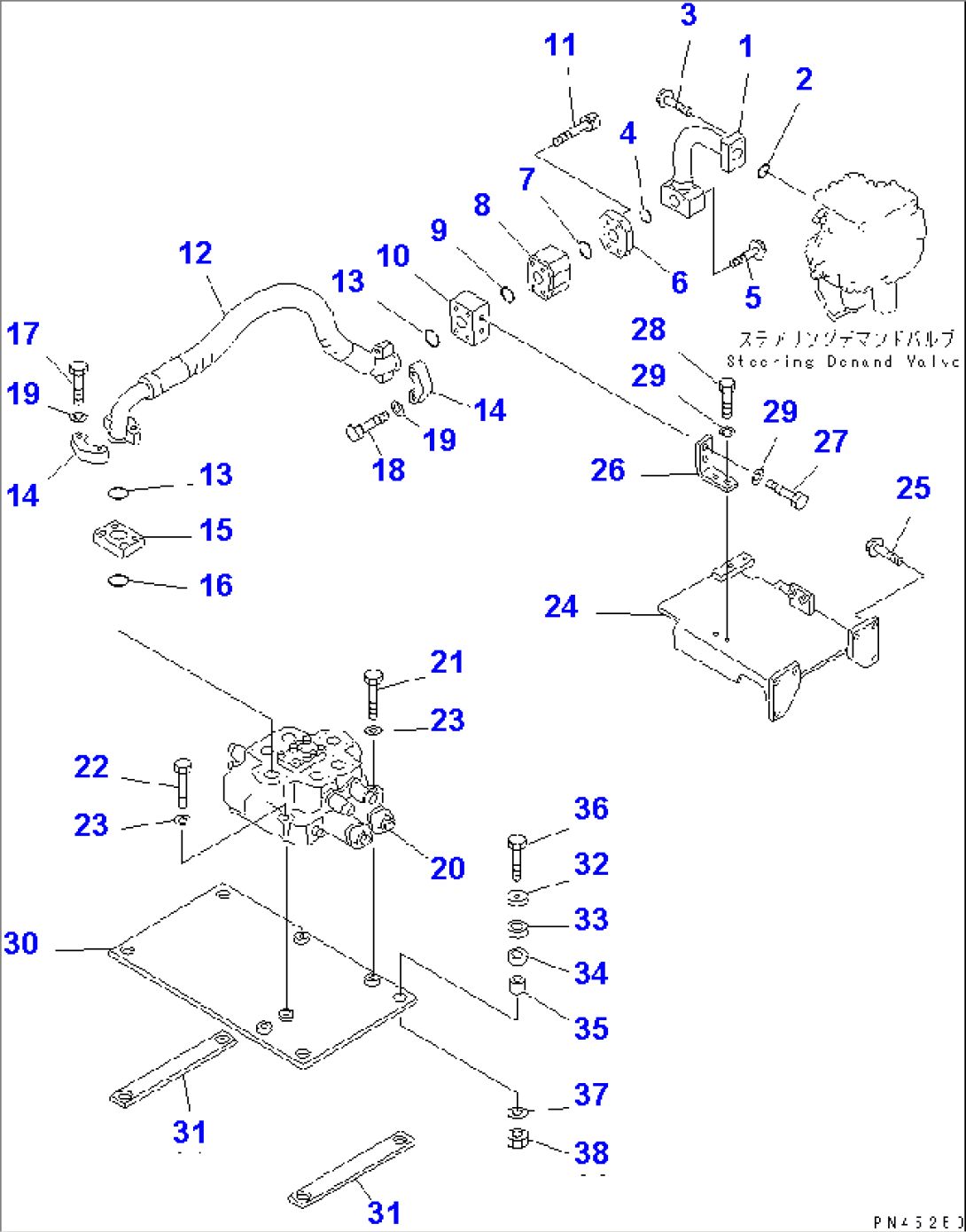

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 428-62-13551 | TUBE | 10001- | |
| 2 | 07000-F3045 | O-RING | 10001- | |
| 3 | 01435-01250 | BOLT | 10001- | |
| 4 | 07000-F3038 | O-RING | 10001- | |
| 5 | 01435-01280 | BOLT | 10001- | |
| 6 | 428-62-13570 | FLANGE | 10001- | |
| 7 | 07000-F3045 | O-RING | 10001- | |
| 8 | (702-13-43900) | VALVE ASS'Y,CHECK (SEE FIG.6241) | 10001- | |
| 9 | 07000-F3045 | O-RING | 10001- | |
| 10 | 428-62-13580 | FLANGE | 10001- | |
| 11 | 01253-41410 | BOLT | 10001- | |
| 12 | 428-62-13591 | HOSE | 10001- | |
| 13 | 07000-F3048 | O-RING | 10001- | |
| 14 | 07371-51470 | FLANGE,SPLIT | 10001- | |
| 15 | 428-62-13930 | SPACER | 10001- | |
| 16 | 07000-F3048 | O-RING | 10001- | |
| 17 | 01010-81480 | BOLT | 10001- | |
| 18 | 01010-81455 | BOLT | 10001- | |
| 19 | 01643-31445 | WASHER | 10001- | |
| 20 | (709-12-12400) | VALVE ASS'Y | 10001- | |
| 21 | 01011-51615 | BOLT | 10001- | |
| 22 | 01011-51640 | BOLT | 10001- | |
| 23 | 01643-31645 | WASHER | 10001- | |
| 24 | 428-62-13733 | BRACKET | 10052- | |
| 24 | 428-62-13732 | BRACKET | 10001-10051 | |
| 25 | 01435-01230 | BOLT | 10001- | |
| 26 | 428-62-13710 | PLATE | 10001- | |
| 27 | 01010-81235 | BOLT | 10001- | |
| 28 | 01010-81230 | BOLT | 10001- | |
| 29 | 01643-31232 | WASHER | 10001- | |
| 30 | 428-62-14621 | BRACKET | 10042- | |
| 30 | \1\428-62-14620 | BRACKET | 10001-10041 | |
| 31 | 428-62-14560 | CUSHION | 10001- | |
| 32 | 428-62-14610 | WASHER | 10001- | |
| 33 | 428-62-14580 | CUSHION | 10001- | |
| 34 | 428-62-14590 | CUSHION | 10001- | |
| 35 | 428-62-14570 | SPACER | 10001- | |
| 36 | 01010-61675 | BOLT | 10088- | |
| 36 | 01010-51670 | BOLT | 10001-10087 | |
| 37 | 01643-31645 | WASHER | 10088- | |
| 38 | 01596-01615 | NUT | 10088- |
