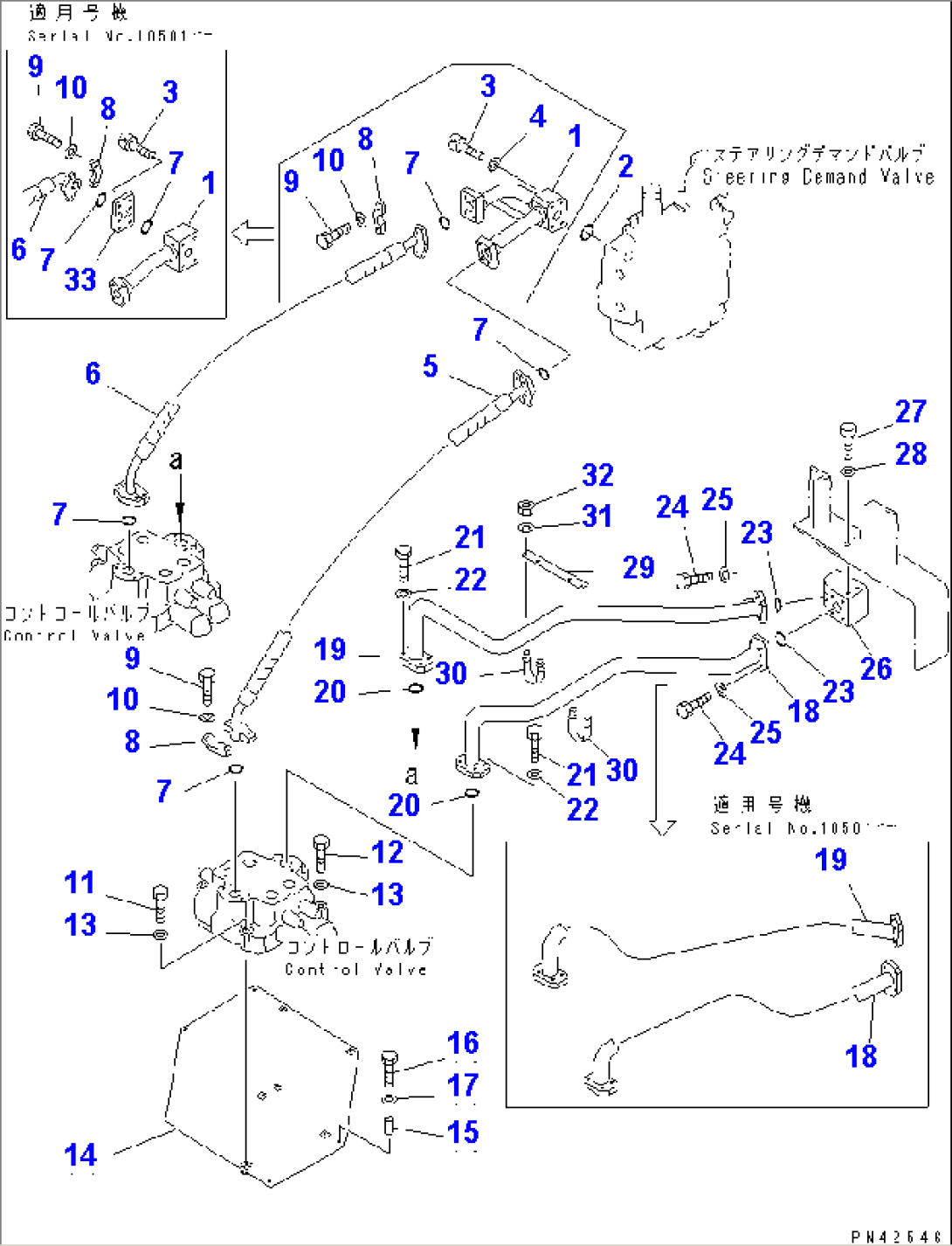

| Item | Part No. | Part Name | Qty | Serial No. |
| 1 | 427-62-12672 | TUBE | 10501- | |
| 427-62-12671 | TUBE | 10001-10499 | ||
| (\2\427-62-12670) | TUBE | (10001-10047) | ||
| 2 | 07000-F2060 | O-RING | 10054- | |
| \0\07000-12060 | O-RING | 10001-10053 | ||
| 3 | 01253-41815 | BOLT | 10501- | |
| 427-62-12680 | BOLT | 10001-10499 | ||
| 4 | 01643-31845 | WASHER | 10001-10499 | |
| 5 | 427-62-15611 | HOSE | 10501- | |
| 427-62-15610 | HOSE | 10001-10499 | ||
| (\2\07097-01416) | HOSE | (10001-10059) | ||
| 6 | 427-62-15750 | HOSE | 10501- | |
| 427-62-15620 | HOSE | 10001-10499 | ||
| (\2\07097-01414) | HOSE | (10001-10059) | ||
| 7 | 07000-F3048 | O-RING | 10501- | |
| 07000-23048 | O-RING | 10054-10499 | ||
| \0\07000-13048 | O-RING | 10001-10053 | ||
| 8 | 07371-51470 | FLANGE,SPLIT | 10001- | |
| 9 | 01010-81455 | BOLT | 10001- | |
| 10 | 01643-31445 | WASHER | 10001- | |
| 11 | 01011-81620 | BOLT | 10001- | |
| 12 | 01011-81600 | BOLT | 10001- | |
| 13 | 01643-31645 | WASHER | 10001- | |
| 14 | 427-62-13982 | BRACKET | 10501- | |
| 427-62-13981 | BRACKET | 10001-10499 | ||
| 15 | 421-62-17521 | SPACER | 10001- | |
| (\2\421-62-17520) | SPACER,(FOR JAPAN) | (10001-10049) | ||
| (\2\421-62-17520) | SPACER,(EXCEPT JAPAN) | (10001-10035) | ||
| 16 | 01010-81680 | BOLT | 10001- | |
| 17 | 01643-31645 | WASHER,(FOR JAPAN) | 10050- | |
| 01643-31645 | WASHER,(FOR JAPAN) | 10001-10049 | ||
| 01643-31645 | WASHER,(EXCEPT JAPAN) | 10036- | ||
| 01643-31645 | WASHER,(EXCEPT JAPAN) | 10001-10035 | ||
| 18 | 427-62-12611 | TUBE | 10501- | |
| 427-62-12610 | TUBE | 10001-10499 | ||
| 19 | 427-62-12621 | TUBE | 10501- | |
| 427-62-12620 | TUBE | 10001-10499 | ||
| 20 | 07000-F2060 | O-RING | 10054- | |
| \0\07000-02060 | O-RING | 10001-10053 | ||
| 21 | 01010-81240 | BOLT | 10001- | |
| 22 | 01643-31232 | WASHER | 10001- | |
| 23 | 07000-F3048 | O-RING | 10054- | |
| \0\07000-03048 | O-RING | 10001-10053 | ||
| 24 | 01435-01245 | BOLT | 10501- | |
| \0\01010-51245 | BOLT | 10001-10499 | ||
| 25 | 01643-31232 | WASHER | 10001-10499 | |
| 26 | 427-62-12660 | BLOCK | 10001- | |
| 27 | 01435-01230 | BOLT | 10501- | |
| \0\01010-51235 | BOLT | 10001-10499 | ||
| 28 | 01643-31232 | WASHER | 10001-10499 | |
| 29 | 427-62-12580 | PLATE | 10001- | |
| 30 | 07283-34949 | CLIP | 10001- | |
| 31 | 01643-31032 | WASHER | 10001- | |
| 32 | 01597-01009 | NUT | 10001- | |
| 33 | 427-62-15740 | BLOCK | 10501- |
